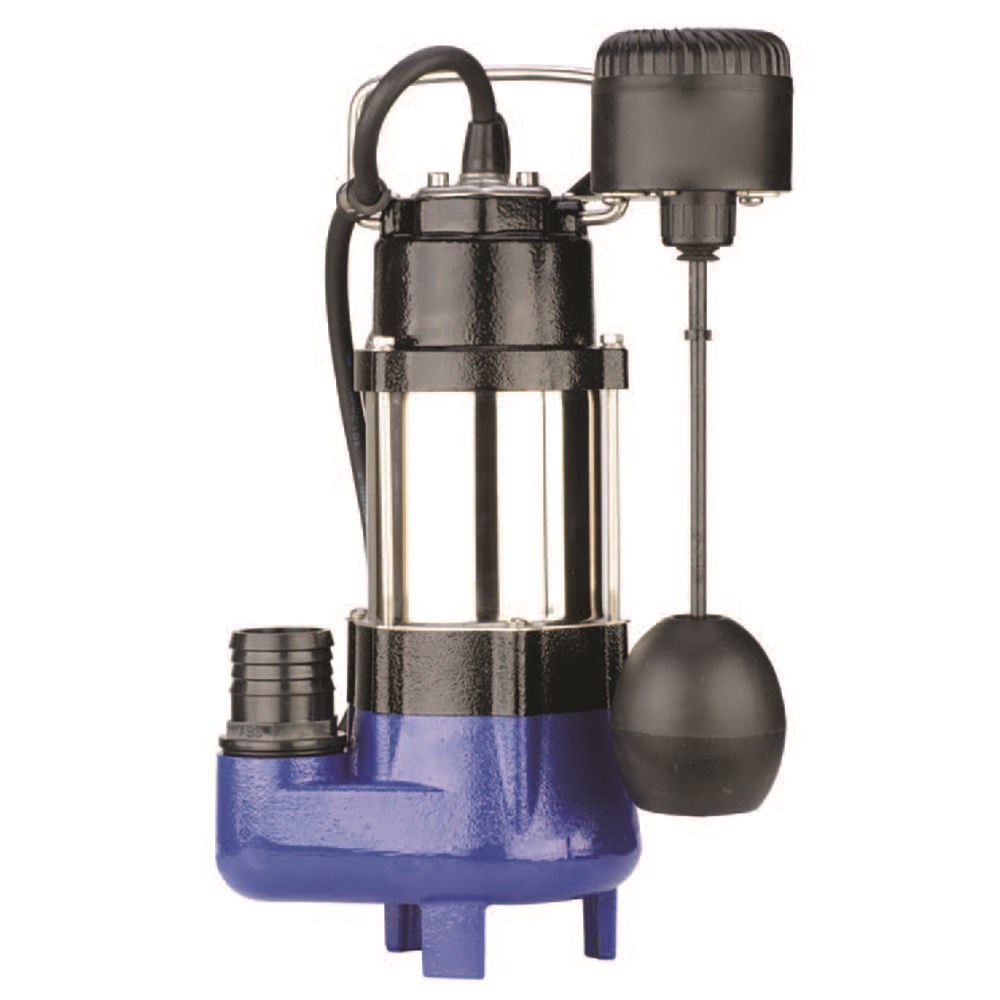

The BIA B25VAS2-FF is a rugged vortex type drainage pump fitted with a cast iron semi vortex impeller. With a free passage of 15mm this pump is suitable for general drainage applications with clean or slightly dirty water.
Fitted with a vertical ‘fixed’ float this pump is compact and suitable for use in situations where space is limited.
Ideal for greywater pump out, sump emptying or pumping of light slurries from cellars, ditches, pits, ponds and drains.
BENEFITS
- Easy installation and automatic operation
- Float motion is managed reducing the risk of snagging
Features
- Quality pump materials and construction to ensure reliable operation
- Carry handle
- Industrial grade coating
- 10m H07RN-F Neoprene power lead and float lead
To ensure adequate motor cooling, as per the user manual, exercise care matching pump and chamber size to prevent the risk of cycling (too many stops/starts per hour) or continuous running.

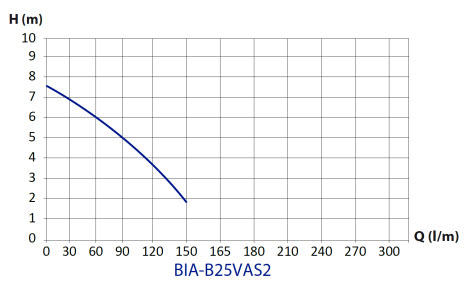

HYDRAULIC PERFORMANCE

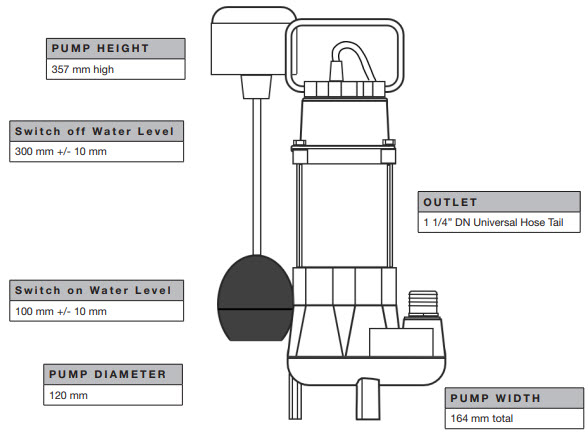

PUMP CURVE DIMENSIONS
| TECHNICAL DATA |
| RATED POWER (W) |
250W |
| MAX. FLOW [LPM] |
150 lpm |
| MAX. HEAD [M] |
7m |
| WORKING TEMPERATURE |
< 35°C |
| LIQUID TEMPERATURE |
2°C - 35°C |
| MAX. IMMERSION DEPTH |
5m |
| MAX. DIA. OF PARTICLE |
< 15mm |
| MOTOR DUTY |
S1 Continuous |
| MOTOR PROTECTION LEVEL |
Class B |
| MOTOR PROTECTION |
In-built auto re-setting thermal overload |
| CAPACITOR |
9 uF +/-5% 450V |
| RATED VOLTAGE |
220V-240V 50 Hz |
| RATED CURRENT |
1.8A @ 230V |
| POWER CABLE TYPE |
10m H07RN-F |
| PROTECTION CLASS |
IP68 |
| IMPELLERS |
Single Cast Iron Impeller |
| HYDRAULIC BODY |
Cast Iron |
| OUTLET |
1 1/4” DN with universal hose tail |
| SEALS |
Dual Mechanical Seal and lip seal |
| AUTOMATION FUNCTION |
Vertical Float Switch |
| NET WEIGHT (KG) |
Pump only 10 kg |
| PACKAGE DIMENSION |
225L x 205W x 385H (mm) |
