CLA-BLUESUB05-PS - Claytech Puddle Sucker Pump, 12m Head, 120 L/min with CamLock

Order Code: 811501

Print
Product Code
CLA-BLUESUB05-PS
RRP: $495.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand ClayTech Pumps
Product Type Drainage Puddle Sucker Pump
Suitable For Dirty Water
Bar 1.2
Flow Range Category c. 100 - 199 L/min
Flow Rate (L/min) 120
Float Yes
Hp 0.67
kPa 117
Kilo Watts 0.5
Max Flow (L/min) 120
Head Range Category a. 0 - 39 m

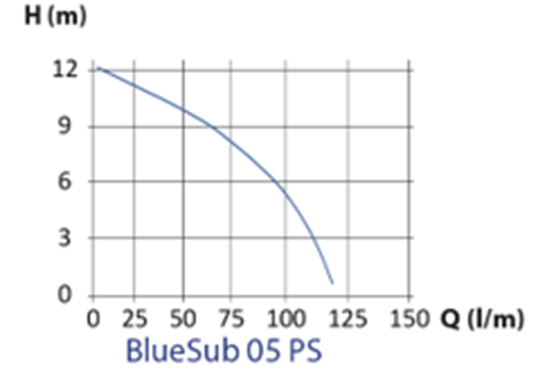

Max Head (m) 12
Powered Electric
Warranty (months) 24
Volts 240
Watts 500
Pack Weight (KG):
0.00
Description

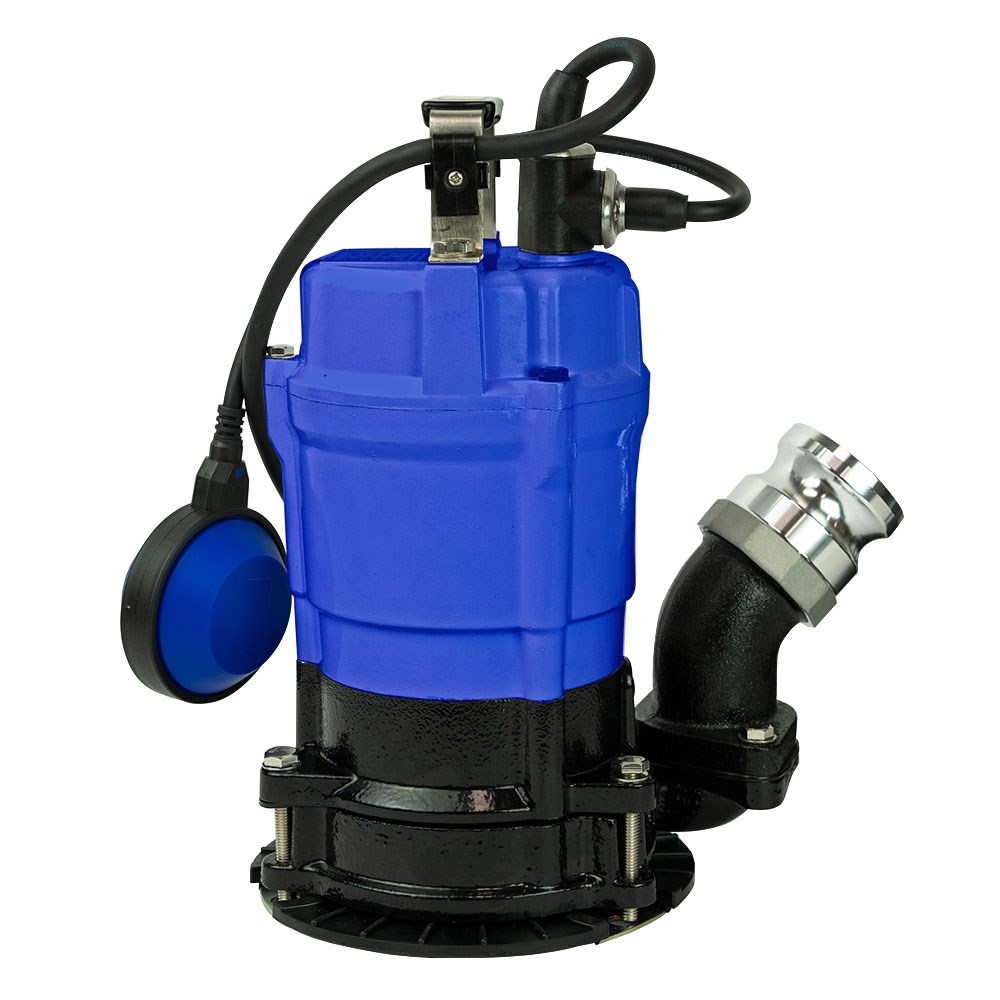

Claytech Puddle Sucker Pump

0.5kW, 50Hz, 240V, 12m Max Head, 120 L/min, IP68, 45° Elbow with 2” Camlock

Features

Designed for de-watering of construction sites, pits, storm water and basements capable of pumping down to very low levels.

  • Industrial grade coating
  • Stainless Steel Handle
  • Easy service round style float
  • Corrosion resistant pump components
  • Automatic and manual operations available
  • Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
  • Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
  • Capable of pumping down to very low levels
  • Versatile outlet connection
  • 240V single phase motor with in-built auto reset thermal overload
  • 10m of power cable (H07RNF)
  • Water temperature range: 2ºC to 35ºC
  • Maximum submergence: 20m
