CLAYTECH BLUESUB05 SUBMERSIBLESUMP PUMP CLA-BLUESUB05

Order Code: 811500

Print
Product Code
CLA-BLUESUB05
RRP: $459.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand ClayTech Pumps
Product Type Drainage Pump
Suitable For Dirty Water
Bar 1.2
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 210
Float Yes
Hp 0.67
kPa 117
Kilo Watts 0.5
Max Flow (L/min) 210
Head Range Category a. 0 - 39 m
Max Head (m) 12
Powered Electric
Warranty (months) 24
Volts 240
Watts 500
Pack Weight (KG):
9.00
Description

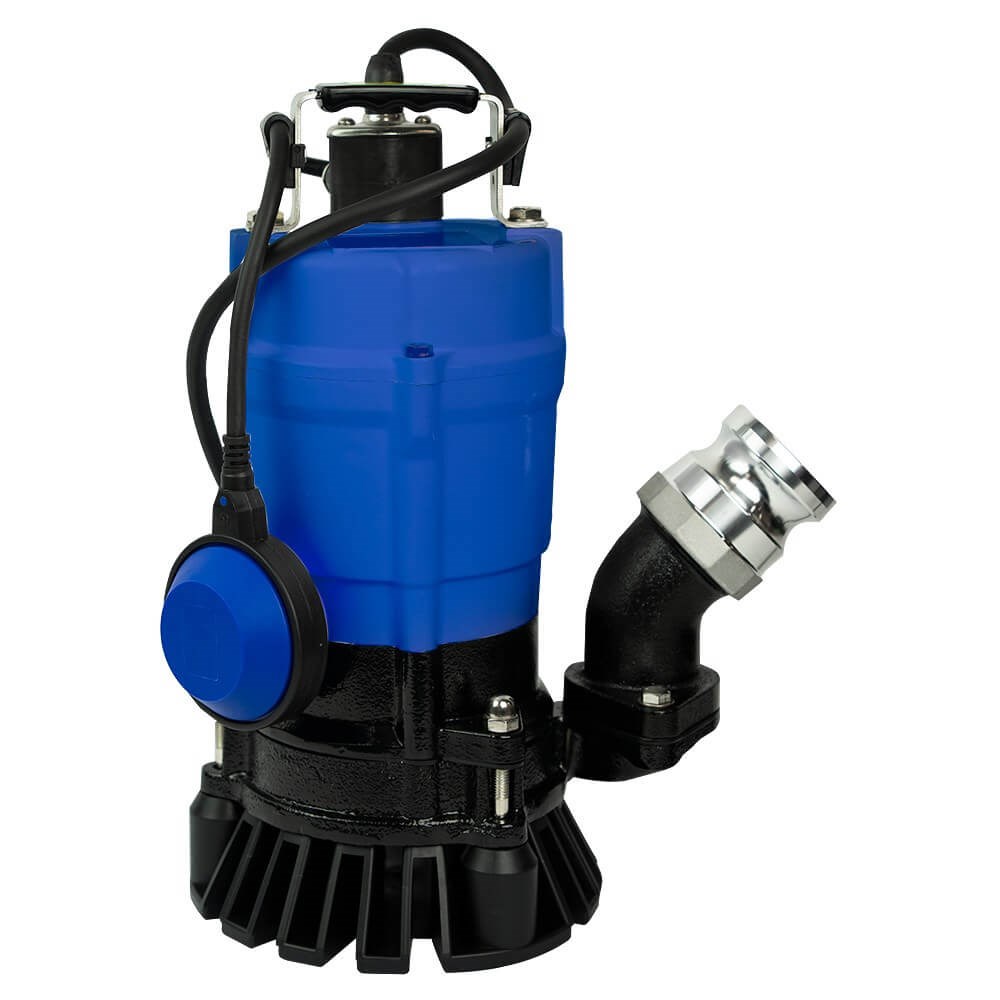

Claytech Submersible Drainage Pump

0.5kW, 50Hz, 240V, 12m Max Head, 210 L/min, IP68, 45° Elbow with 2” Camlock

Features

Designed for de-watering of construction sites, pits, storm water and basements where there is abrasive material.

  • Industrial grade coating
  • Stainless Steel Handle
  • Easy service round style float
  • Corrosion resistant pump components
  • Automatic and manual operations available
  • Dual mechanical seal in oil bath, silicon carbide/silicon carbide + carbon ceramic
  • Fitted with semi-vortex, urethane coated impeller which allows pumping of suspended solids, sandy and stringy material
  • Agitator on the end of the pump shaft helps prevent air locking and clogging
  • Versatile outlet connection
  • 240V single phase motor with in-built auto reset thermal overload
  • 10m of power cable (H07RNF)
  • Urethane strainer resists damage
  • Can handle particles to 25mm x 10mm
  • Water temperature range: 2ºC to 35ºC
  • Maximum submergence: 20m
