Claytech C6X - Submersible Pump 35m Head 100 L/min

Order Code: 811525

Print
Product Code
CLA-C6X
RRP: $619.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand ClayTech Pumps
Product Type Submersible Rainwater Pump
Approval Approved For Drinking Water
Max Flow (L/min) 100
Max Head (m) 35

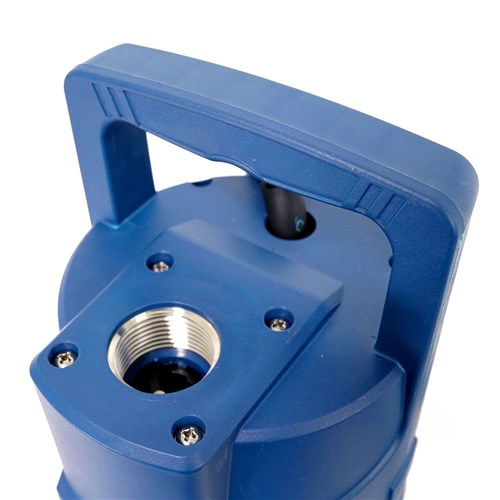

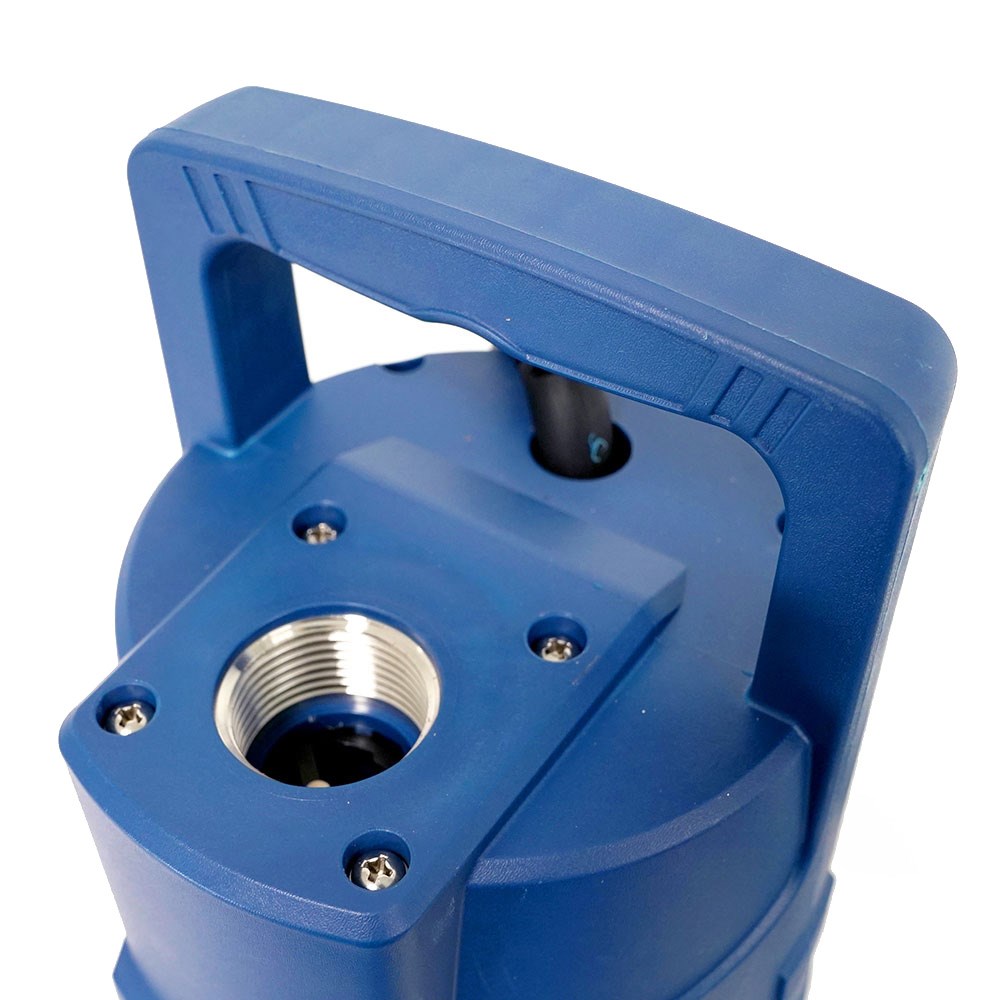

Port Size Outlet 1"
Taps 6
Volts 240
Watts 900
Pack Weight (KG):
7.00
Description

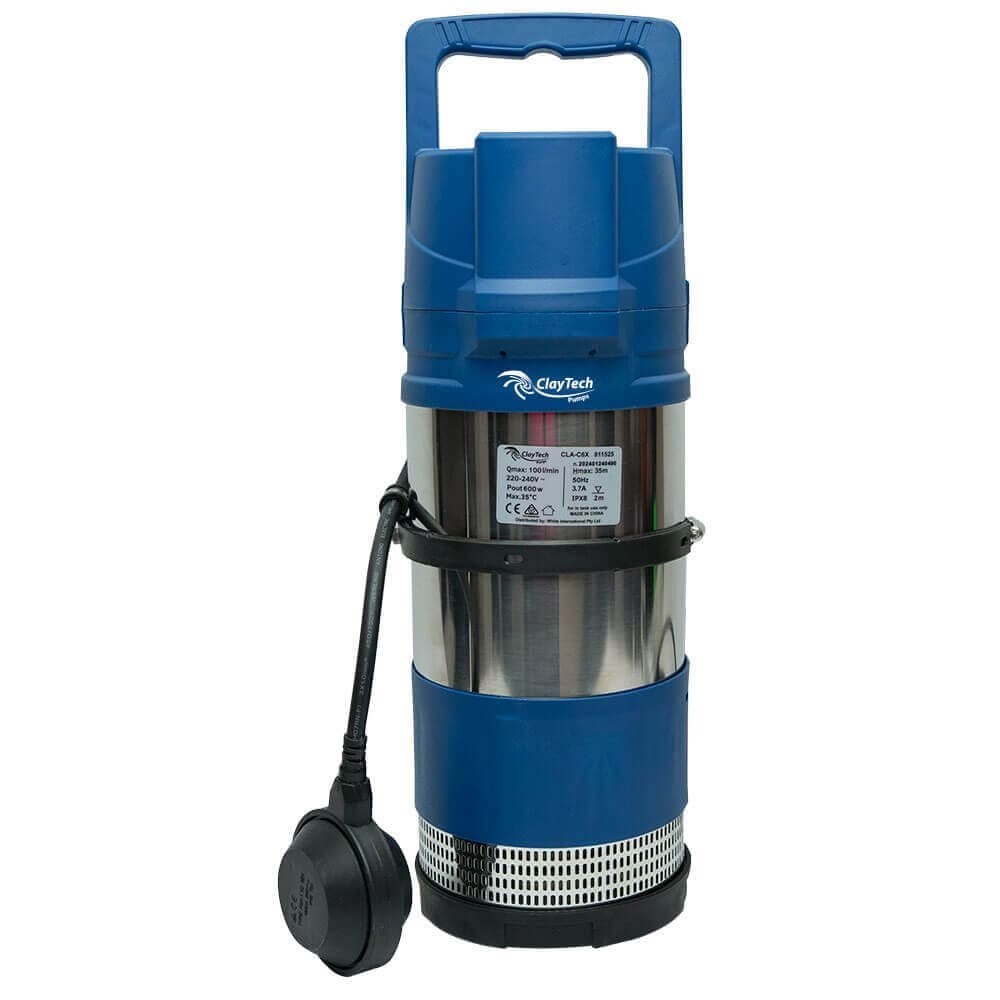

The ClayTech C6X submersible multistage pump is specially designed and manufactured for the rainwater industry.

Installed inside the rainwater tank, the submersible design ensures the pump installation is neat, secure and quiet with no requirement to install additional protection against the elements.

It is intended for use in household applications for the automatic supply of clean water which contains no fibres.

Features
  • Automatic float switch to prevent dry running
  • iSensor control monitors the system pressure and flow in real time
  • Built in non-return valve to prevent back flow and ensures shut-down at minimal flow levels.
  • Industrial motor for best performance and longevity in operation
  • Slotted strainer design at suction
  • Dual mechanical seals
  • Stainless steel body
  • 240V single phase motor with in-built thermal protection
  • 2.5 Bar Cut-in pressure
Applications:
  • Household Booster Pump
  • Gardening
  • Drinking water
  • Laundry
  • Bathroom
  • Rainwater harvesting
  • Kitchen
  • Irrigation
