The DAB ESYBOX MAX is the latest innovation in the DAB Esyline range.
Integrated pumping systems for pressurization in commercial building services industry and for rural and horticultural applications. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of large residential, medium/large apartments and high rise buildings (even over 14 floors).

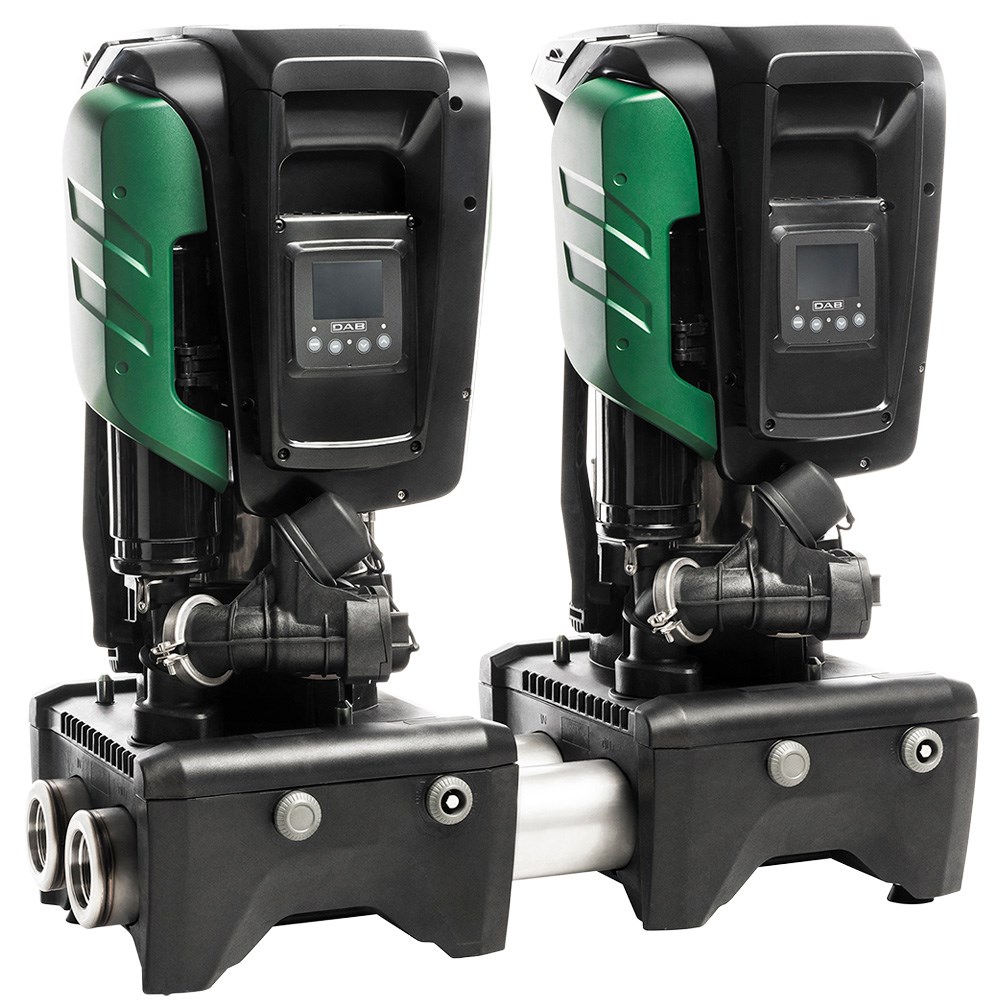

Each unit consists of the hydraulic connection base and the pumping unit which includes an electronic vertical multi-impeller pump, display, Wi-Fi module, pressure sensors, non-return valve on delivery and an expansion tank. The innovative support base of the pumping unit and the wireless communication between the pumps make it possible to assemble the unit directly at the installation site, even by one person. The variable frequency drive keeps the pressure constant according to the load and thanks to the water-cooled permanent magnet motor, it allows greater efficiency, silence and energy savings.
Video
Technical Performance Data
| Technical Specifications |
| Flow rate: |
Up to 290 lpm (for single unit) |
| Head: |
96 m |
| Liquid temperature: |
+50°C |
| Maximum ambient temperature: |
+55°C |
| Maximum inlet pressure: |
5 Bar |
| Operation pressure: |
12 Bar / 1200 Kpa |
| Constant pressure range: |
1-12 Bar (3 bar by default) |
| Motor protection class: |
IPX5 |
| Motor insulation class: |
F |
| Impeller material: |
Technopolymer with steel wear rings |
| Single phase power input: |
208-240V 50/60Hz – 15 Amp Plug |
| Type of installation: |
Fixed In Vertical Position |
| Type of pumped liquid: |
- Clean
- Free From Solid Or Abrasive Substances
- Non-Viscous
- Non-Aggressive
- Non-Crystallised
- Chemically Neutral
|
Key Features
| 1 |
DISPLAY |
| 2 |
INVERTER |
| 3 |
MODULE WIFI/BLUETOOTH |
| 4 |
PRESSURE SENSOR (delivery side) |
| 5 |
PRESSURE SENSOR (suction side) |
| 6 |
NON-RETURN VALVE |
| 7 |
2L EXPANSION TANK |
| 8 |
IMPELLERS |
| 9 |
HYDRAULICS CONNECTIONS |
| 10 |
FAST CONNECTION TOOL |
| 11 |
WATER COOLED PERMANENT MAGNET MOTOR |
| 12 |
HANDLES |
Accessories
ESY I/O
The electronic expansion module allows Esybox Max to interface with the external input/output devices (eg: float switch, pressure switch, remote alarm) and with the BMS world (Building Management System).
CONTROL PANEL
Electrical connection panels for 2 or 3 pumps complete with magnetothermic switches for powering multi-pump units. It can be installed on the wall or directly to Esybox Max units using the dedicated pillar kit.
PILLAR KIT
Useful for mounting the control panel EG on board of the 2 or 3 Esydock max.
JOINT KIT
Kit consisting of 2 pieces of 3-piece unions and 2 pieces of 2” nipples to connect the delivery and suction of a pair of 2 esydock max to create 4-unit esybox groups.
