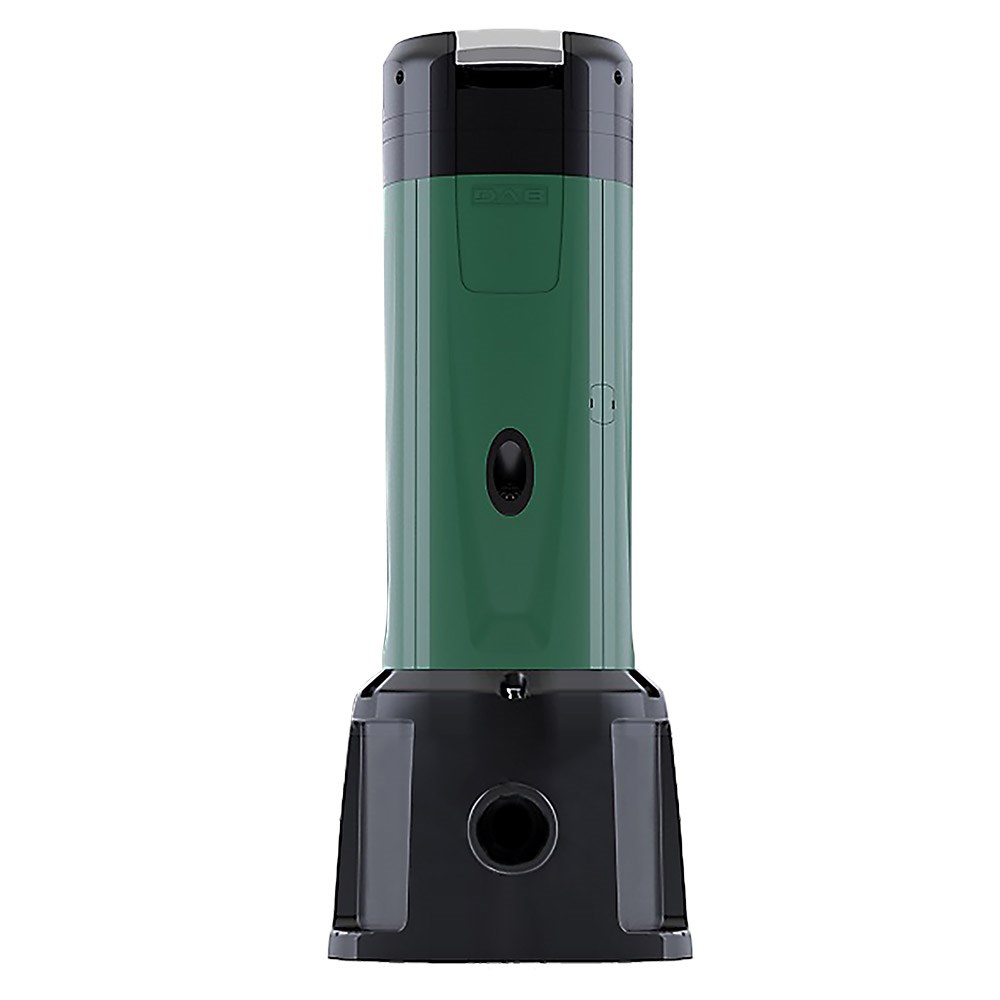

DAB-ESYDIVER 55/120 with DOC68 for Dry Mount Installation - VFD Pump 120L/min, 55m Head, 1.0kW

Order Code: 812221

Print
Product Code
DAB-ESYDIVER-55/120-DOC68-KIT
RRP: $4015.00 incl. GST
Technical Specifications
Brand DAB Pumps
Product Type Submersible Pump
Bar 2.4
Flow Range Category a. 100 - 199 L/min
Flow Rate (L/min) 120
Kilo Watts 1
Head Range Category b. 40 - 59 m
Max Head (m) 55m
Port Size Outlet 1 1/4" BSPF outlet
Volts 240 V
Pack Weight (KG):
0.00
Description
Includes:
  • DAB-ESYDIVER 55/120 - 7" Electronic Multistage Submersible Pump with VFD 120L/Min 55m Head 1.0KW
  • DAB-DOC68 - Pump Docking Station
Features
  • 7" Electronic Multi Stage Pump with inverter
  • The DConnect Box 2 allows access to the DAB Cloud Service. With the new app, you can manage and monitor the pressure of the system, the alarms and the residual availability of water in the tank directly from your smartphone or tablet, wherever you may be!
  • The Optional External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
  • The Bleed Valve allows immediate priming upon initial installation
  • The modular components of the pump make it easier to perform maintenance
  • The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
  • The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
  • Large range to suit most applications
  • Ergonomic Carry Handle for easy transportation and installation
  • Resistance to high and low temperatures
  • Certified for Drinking Water
Pump Docking Station
  • Dock for dry mount conversion kit
  • The DOC68 allows maximum flexibility of installation. With this accessory and IP68 certification, the DTRON Pumps can be installed even out of water and used like real traditional booster sets
Warranty
2 Year Pump Parts and Labour Warranty
