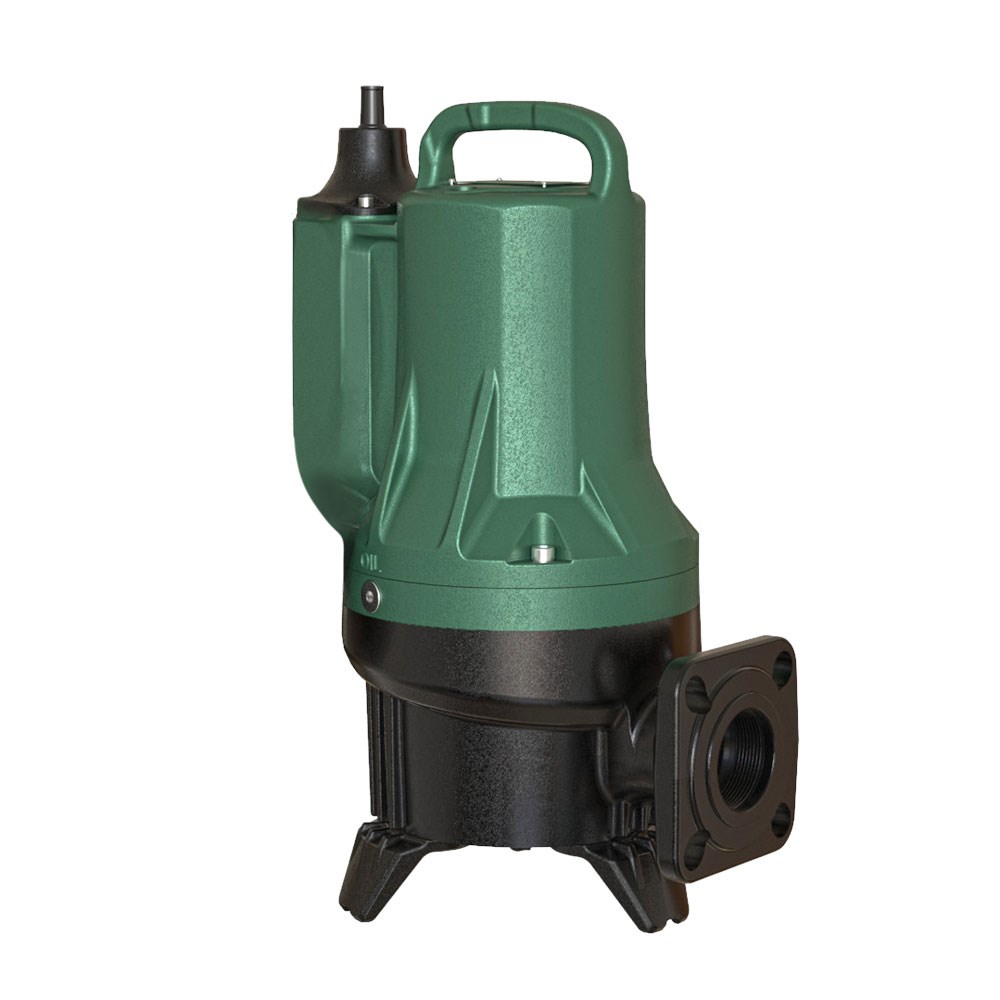

DAB-FEKAFXV20.07MEX - Drainage IECEx Approved Submersible Vortex Pump 490l/min 12M 1.4kW230V

Order Code: 812474

Print
Product Code
DAB-FEKAFXV20.07MEX
RRP: $2772.00 incl. GST
Find Your Nearest Store
Find a Service Agent
Technical Specifications
Brand DAB
Product Type Vortex Pump
Cable (m) 10
Amps 6.4
Flow Range Category e. 400 - 499 L/min
Hp 1.9
Kilo Watts 1.4
Max Flow (L/min) 490
Max Head (m) 12
Particle Size 50 mm
Volts 230
Watts 1400
Inlet/Outlet 2"
Max Temp (degrees celsius) 50
Water Resistant IP68
Pack Weight (KG):
35.00
Description

The Feka FXV range is a drainage pump designed to deal with commercial building sewage. It is certified for the European Union standard EN 12050-1 which applies to sewage lifting containing faecal material in buildings and construction sites.

The reduced overall dimensions and the outlet ports both flanged and threaded make it ideal for replacements. Its construction is designed with quick maintenance in mind that provides easy access to the main components of the pump.



1.4kW, 1.9hp, 240V, max head 12m, max flow 490L/m, 2” BSPF outlet, particle size 50mm

Features
  • Pump body and impeller in cast iron. Motor shaft in AISI 304 stainless steel.
  • Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the pumped liquid, independent of the direction of rotation
  • Delivery port both flanged and threaded from 2”, DN50
  • Available in single-phase asynchronous motor (MA / MNA versions) and three-phase motor (TNA versions)
  • Continuous operation in S1 with the motor completely immersed
  • Dry running for a maximum time of 10 minutes
  • Over-temperature sensors in the motor windings with intervention threshold at +130°C
  • 10m quick-bonded resin-bonded cable gland, 07RN8-F power cable
  • Accepts particles up to 50mm
  • IP68 protection rating

Applications:

  • Wastewater and sewage drainage in commercial building services
  • Suitable for waters with filamentary bodies, paper or textile material in the presence
