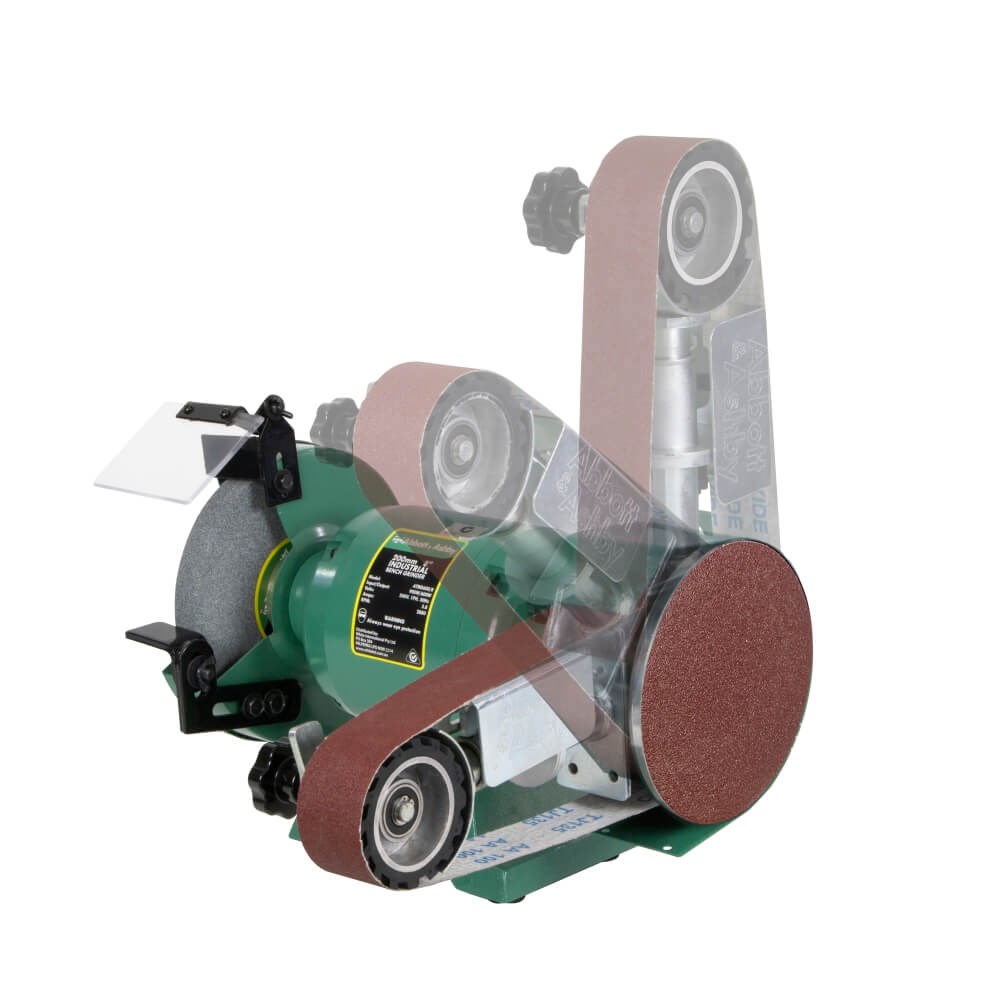

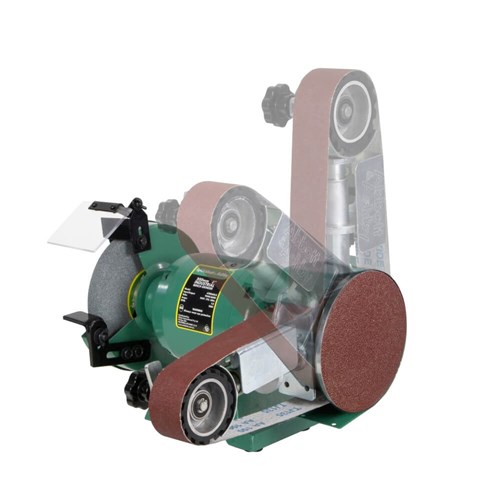

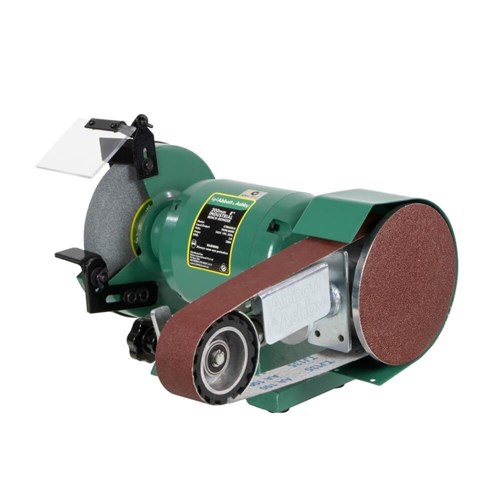

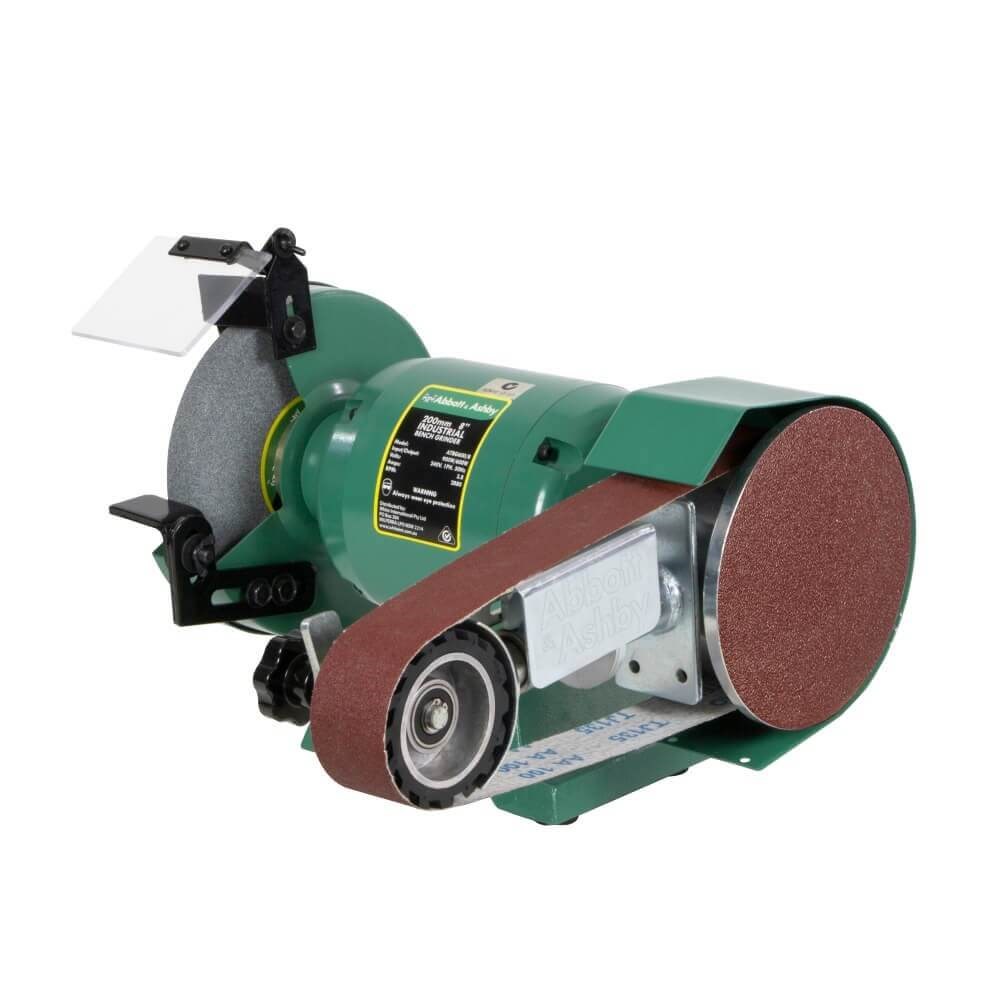

AA362W8 - 8" Industrial Grinder with Linishing Attachment, 915 x 50mm

Order Code: 808440

Print
Product Code
AA362W8
RRP: $549.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Abbott & Ashby
Product Type Industrial Range
Type Machine
Pack Weight (KG):
24.00
Description

Features & Benefits:

  • Patent pending design allows for fast changes to the working angle without disassembly in 6° increments.
  • Top platen can be used for flat surface grinding and can be moved out of the way for convenient free strapping
  • Easy belt tracking adjustment knob and lock
  • Fast belt changes with patent pending self-locking push in push out arm
  • Linishing Attachment fully assembled out of the box
Technical Specs:
  • Linishing Side – on right
    • 915 x 50mm (36 x 2”) belt – 240 Grit
    • 178mm (7”) diameter disc – 120 Grit
    • 89mm (3.1/2”) contact wheel
  • Grinding Side – on left
    • 200mm/8” x 25mm wide wheel
    • 60 Grit Wheel
Product Range Brochure
Downloads
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
