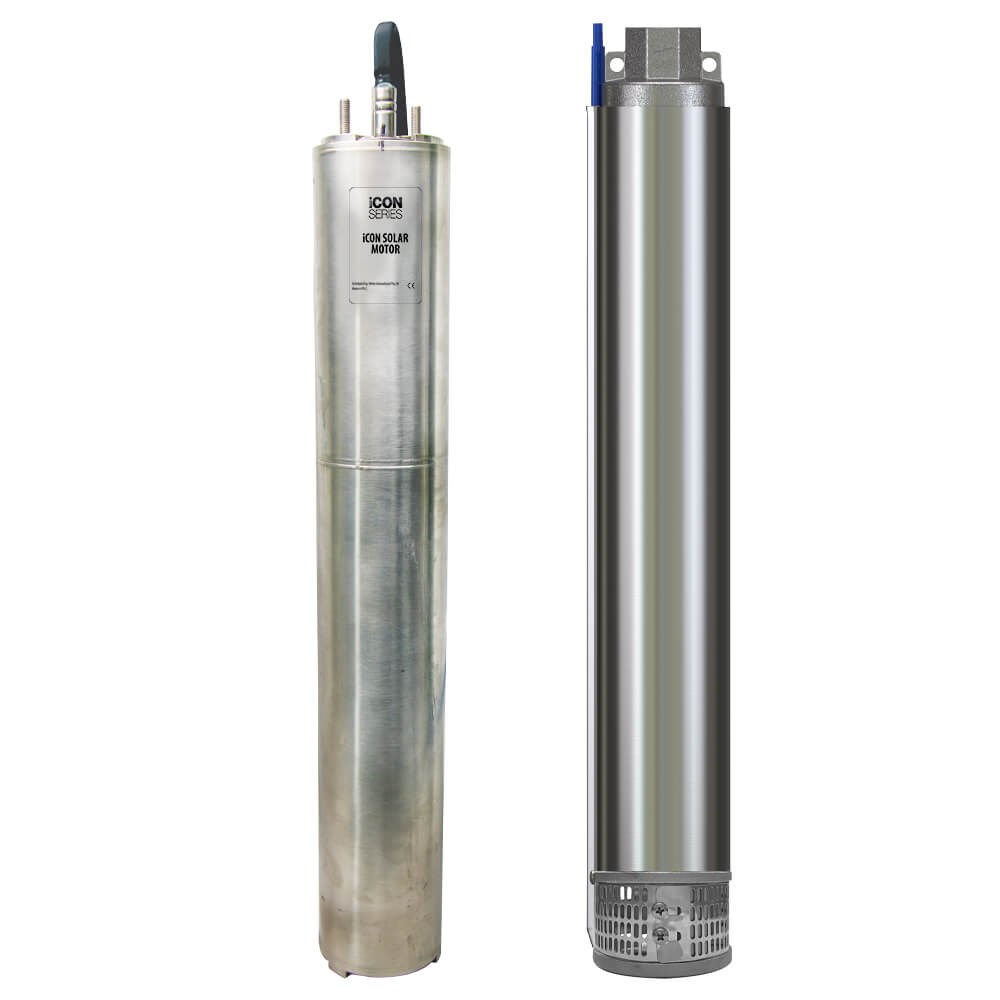

DAB-S4-3/19SOL - Solar Borehole Pump | max head 100m, max flow 80L/m, 1 1/4” BSPF

Order Code: 809431

Print
Product Code
DAB S4 3/19SOL
RRP: $4400.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 9.8 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Kilo Watts 1.1
Head Range Category D. 100 - 199m
Max Head (m) 100 m
Port Size Outlet 1 1/4" BSPF outlet
Volts 240V
Pack Weight (KG):
0.00
Description
Stainless Steel Solar Pump

Max head 100m, max flow 80L/m, 1 1/4” BSPF


Features
  • 4” Bore Hole Submersible Pumps
  • Solar Powered with 240V back up possible
  • Brushless DC motor with MPPT for efficient operation
  • Technopolymer impellers and diffusers for resistance to wear and corrosion
  • New impeller design has higher resistance to abrasion
  • Micro Cast stainless steel support and valve body for high strength
  • Large range to suit most applications
  • Floating impeller stack for easier starts in abrasive conditions
  • Posidrive pump shaft improves impeller life in adverse conditions
  • Maximum quantity of sand = 150 gm/m3

Warranty

2 Year Pump Parts and Labour Warranty
