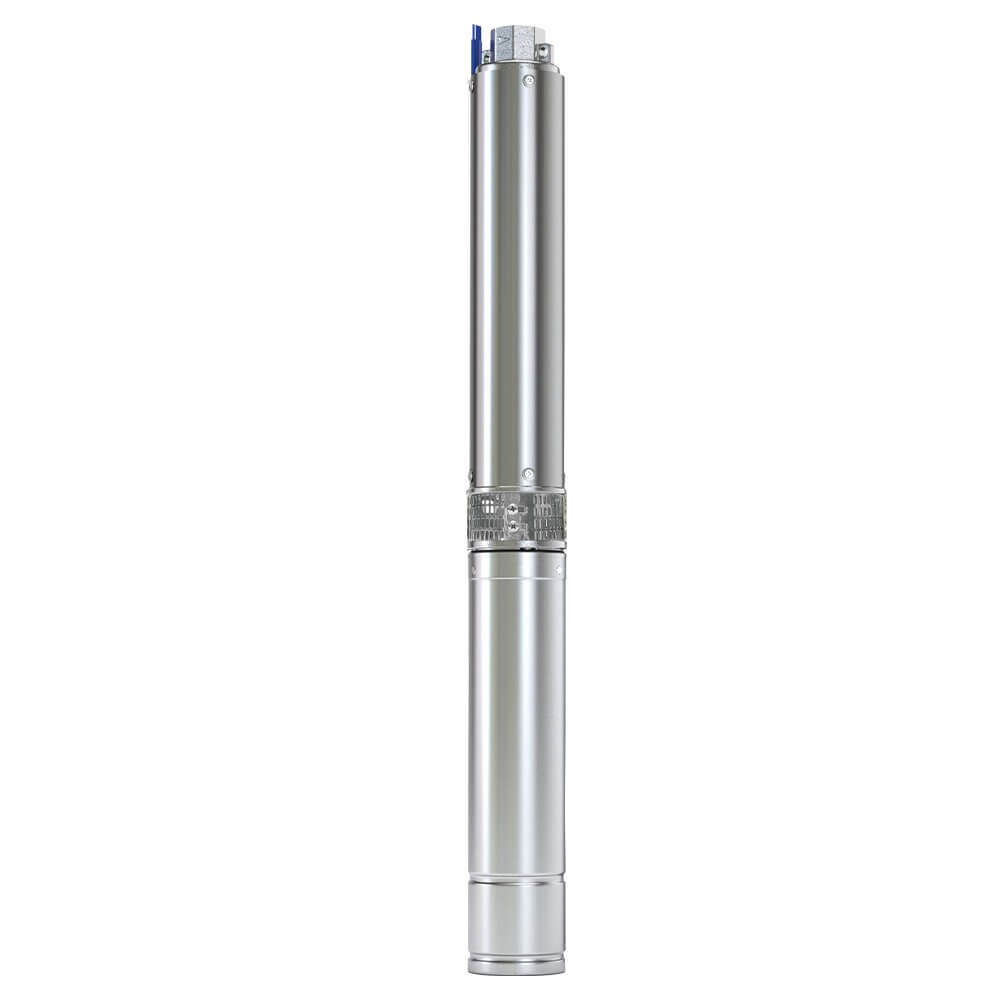

DAB-S41-10T - Pump Borehole 4" Complete 25L/Min 64M 0.37kW 415V

Order Code: 808167

Print
Product Code
DAB-S41-10T
RRP: $1760.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Bar 6.3 Bar
Flow Range Category a. 0 - 99 L/min
Kilo Watts 0.37
Max Flow (L/min) 25 L/min
Head Range Category c. 60 - 99 m
Max Head (m) 64 m
Port Size Outlet 1 1/4" BSPF outlet
Volts 415 V
Pack Weight (KG):
9.90
Description
SS WATER FILLED

Max head 64m, max flow 25L/m, 1 1/4” BSPF

Features
Complete Systems with Water Filled Motor
  • 4” Bore Hole Submersible Pumps
  • Includes cable joint kit
  • DAB Borehole submersible pumps incorporate the latest technology in hydraulic design and materials to reduce running costs, extend pump life and increase serviceability
  • Technopolymer impellers and diffusers for resistance to wear and corrosion
  • New impeller design has higher resistance to abrasion
  • Micro Cast stainless steel support and valve body for high strength
  • Large range to suit most applications
  • Floating impeller stack for easier starts in abrasive conditions
  • Posidrive pump shaft improves impeller life in adverse conditions
  • Maximum quantity of sand = 150 gm/m3

Warranty

2 Year Pump Parts and Labour Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
