DAB-S4D34-1 - PUMP BOREHOLE 4"LIQUID END 100L/M 204M 3KW

Order Code: 701872

Print
Product Code
DAB-S4D34-1
RRP: $2082.30 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Port Size Outlet 1 1/4" BSPF outlet
Pack Weight (KG):
9.50
Description

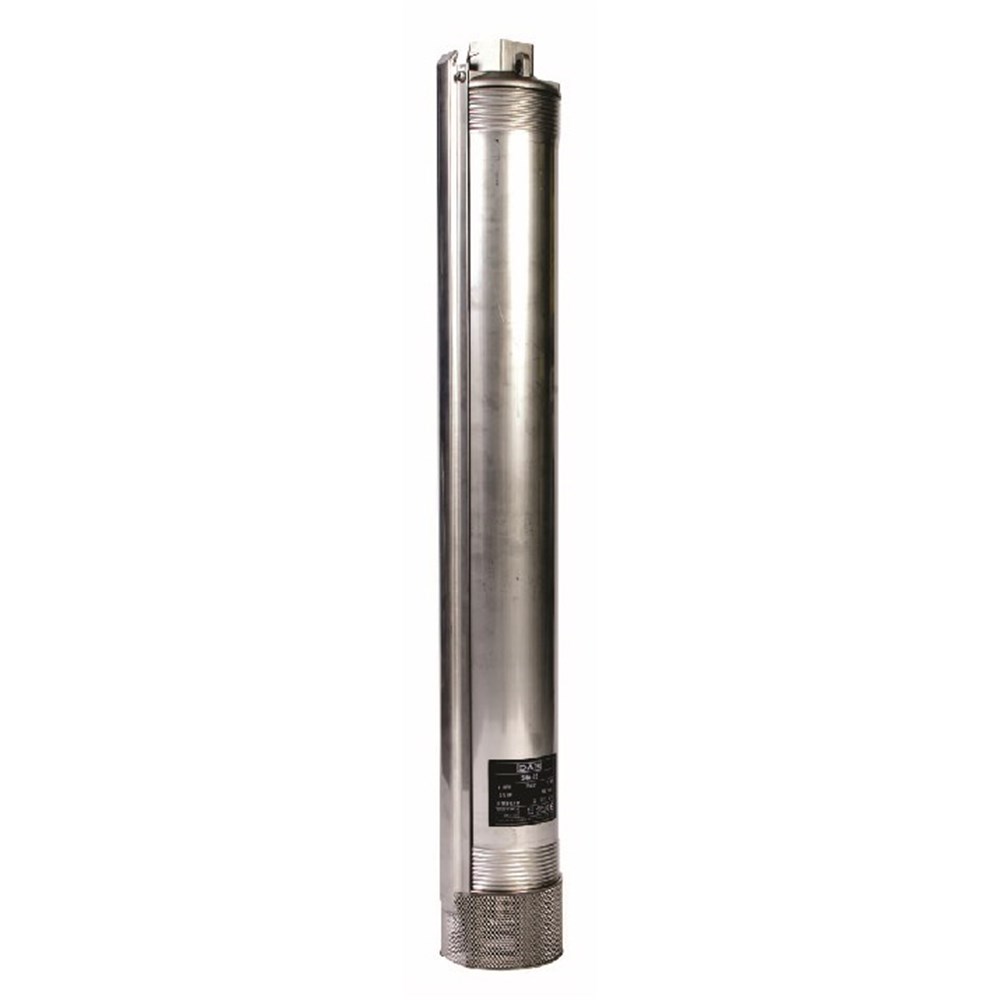

4” Bore Hole Submersible Pumps

DAB Borehole submersible pumps incorporate the latest technology in hydraulic design and materials to reduce running costs, extend pump life and increase serviceability

  • Technopolymer impellers and diffusers for resistance to wear and corrosion
  • Special unit abrasion wear ring reduces wear due to sand
  • Cast stainless steel support and valve body for high strength
  • Single phase motors feature remote control box with manual reset overload
  • Large range to suit most applications
  • Floating impeller stack for easier starts in abrasive conditions
  • Posidrive pump shaft improves impeller life in adverse conditions
  • Maximum quantity of sand = 120 gm/m3

Warranty

2 Year Pump Parts and Labour Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
