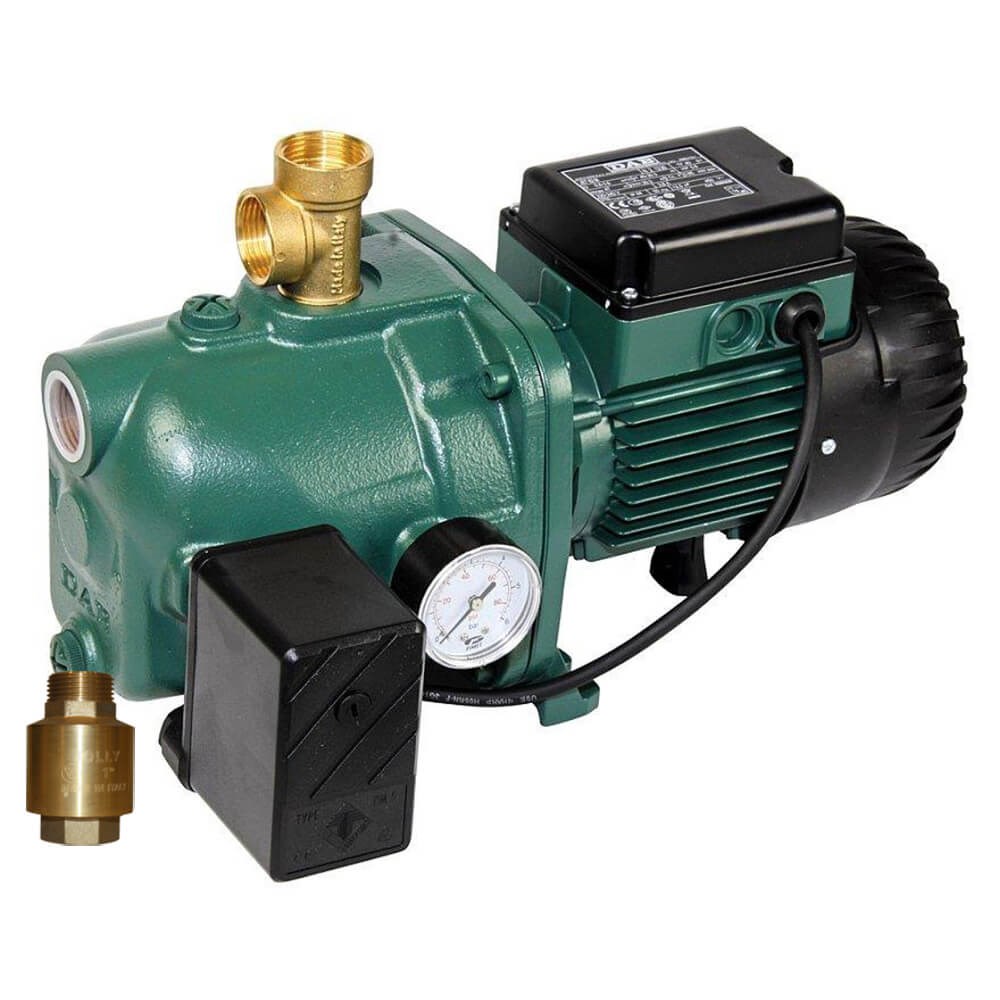

DAB-102MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 53.8M 0.75KW 240V

Order Code: 701376

Print
Product Code
DAB-102MP
RRP: $1045.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 5.38 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 1 Hp
kPa 545 kPa
Kilo Watts 0.75 kW
Head Range Category b. 40 - 59 m
Max Head (m) 53.8 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 750 W
Pack Weight (KG):
14.00
Description
0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV

Features
Self Priming Cast Iron Jet Pressure Pumps

2 Year DAB Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702087
DABSR00010537
DABS R00004028 / R00010537 - DAB Acitve J82M Assy Diffuser
702109
DABSR00004187
DABS R00004187 - O RING
702163
DABSR00010751
DABS R00005112 BEARING REAR
702190
DABSR00010427
DABS R00005153 / R00010427 - DAB JI102M Impeller Inc Disffuser
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702166
DABSR00005115
MOTOR COVER ACTIVEEI40/50M-N.9
702206
DABSR00005193
NUTS AND BOLTS JET102M-N.3
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702076
DABSR00004000
PUMP BODY ACTIVEJ82M-N.6
702684
DABSR00010429
SEAL 102M
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702203
DABSR00005187
SUPPORT JET102M-N.3
