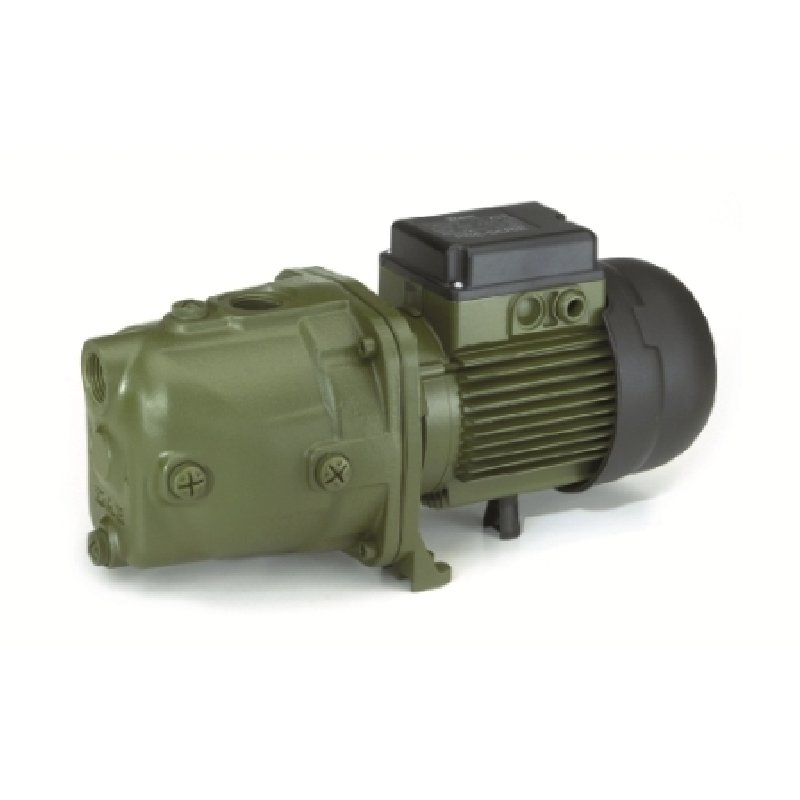

DAB-132M - PUMP SURFACE MOUNTED JET SPEAR POINT 80L/MIN 48M 1.0KW 240V

Order Code: 701383

Print
Product Code
DAB-132M
RRP: $935.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Clean Water
Bar 4.8 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Hp 1.36 Hp
kPa 486 kPa
Kilo Watts 1 kW
Head Range Category b. 40 - 59 m
Max Head (m) 48 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 8 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 1000 W
Pack Weight (KG):
13.50
Description
Self Priming Cast Iron Jet Pumps and Spear Point Pumps

Suitable for water supply in domestic installations, small-scale agriculture and gardening.
2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702109
DABSR00004187
702163
DABSR00010751
702181
DABSR00010362 25UF PRONG
702158
DABSR00005107
702121
DABSR00004650
800614
DABSR00005332
702084
DABSR00004017
702182
DABSR00005141
702205
DABSR00005192
702206
DABSR00005193
702085
DABSR00004018
702076
DABSR00004000
702119
DABS R00009575
702083
DABSR00004016
702203
DABSR00005187
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
