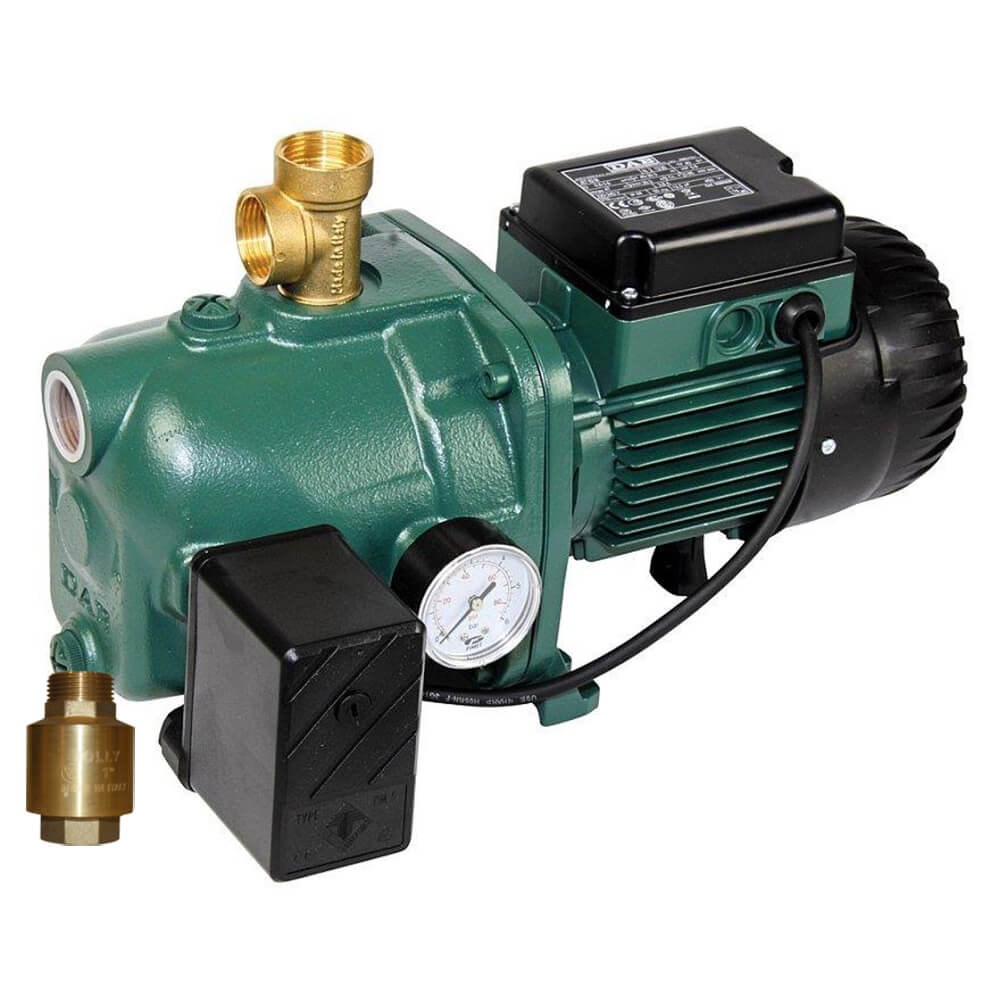

DAB-82MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 47M 0.60KW 240V

Order Code: 701445

Print
Product Code
DAB-82MP
RRP: $935.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.7 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8 Hp
kPa 476 kPa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 600 W
Pack Weight (KG):
12.10
Description
0.60kW, 0.8hp, 240V, max hd 47m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.
Features
Self Priming Cast Iron Jet Pressure Pumps

2 Year DAB Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702080
DABSR00004010
DABS R00004010 Impeller - includes diffuser
702087
DABSR00010537
DABS R00004028 / R00010537 - DAB Acitve J82M Assy Diffuser
702109
DABSR00004187
DABS R00004187 - O RING
702163
DABSR00010751
DABS R00005112 BEARING REAR
702175
DABS R00005129
DABS R00005129 - FRONT BEARING
702079
DABSR00008871 12.5UF
DABS R00008871 - CAPACITOR 12.5UF
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
702108
DABSR00004183
FAN GUARD ACTIVEEI25/30M-N.7
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702081
DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702076
DABSR00004000
PUMP BODY ACTIVEJ82M-N.6
702119
DABS R00009575
SEAL ACTIVEJ82M
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702078
DABSR00004003
SUPPORT ACTIVEJ82M-N.6
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
