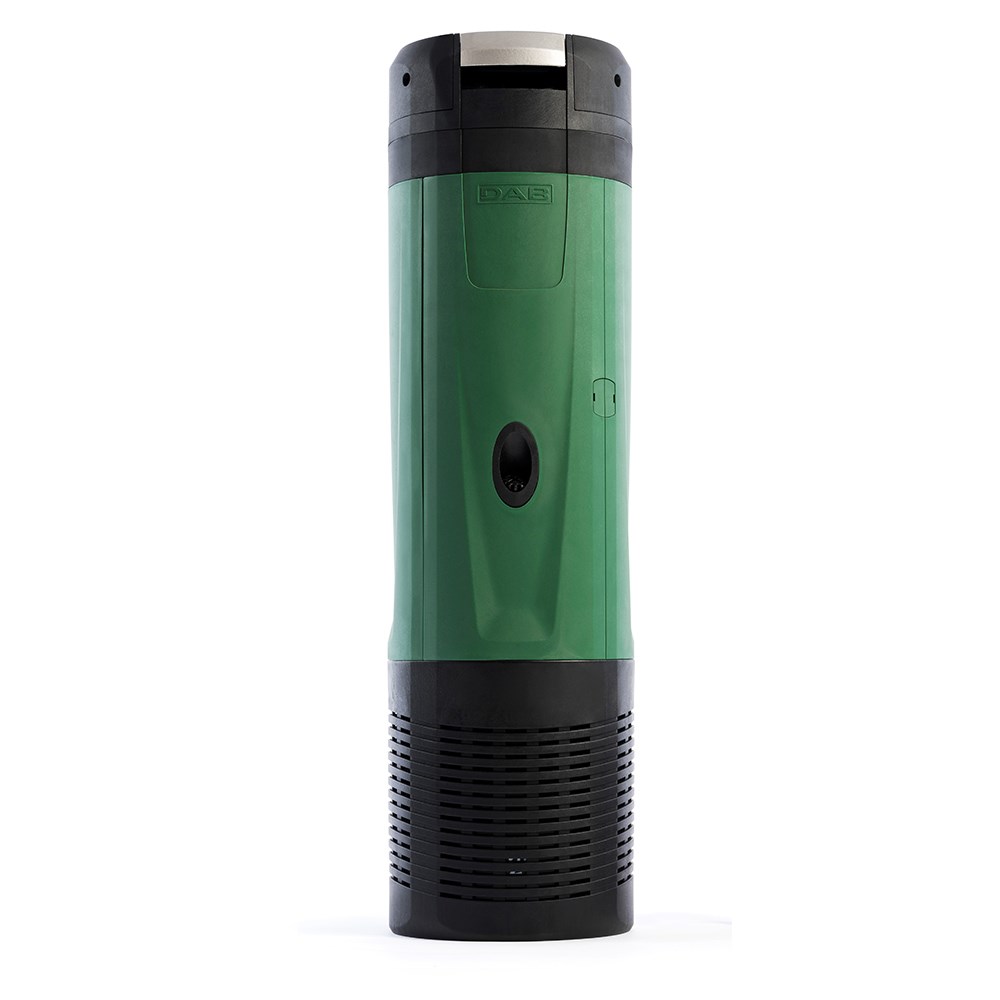

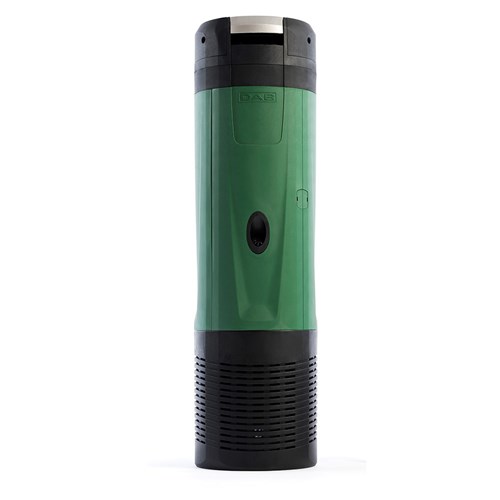

DAB-ESYDIVER 55/120 - 7" Electronic Multistage Submersible Pump with VFD 120L/Min 55m Head 1.0KW

Order Code: 808452

Print
Product Code
DAB ESYDIVER 55/120
RRP: $3740.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 2.4 Bar
Flow Range Category a. 100 - 199 L/min
Flow Rate (L/min) 120
Kilo Watts 1kW
Head Range Category b. 40 - 59 m
Max Head (m) 55m
Port Size Outlet 1 1/4" BSPF outlet
Volts 240 V
Pack Weight (KG):
13.00
Description
  • 7" Electronic Multi Stage Pump with inverter
  • The DConnect Box 2 allows access to the DAB Cloud Service. With the new app, you can manage and monitor the pressure of the system, the alarms and the residual availability of water in the tank directly from your smartphone or tablet, wherever you may be!
  • The Optional External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
  • The Bleed Valve allows immediate priming upon initial installation
  • The modular components of the pump make it easier to perform maintenance
  • The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
  • The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
  • Large range to suit most applications
  • Ergonomic Carry Handle for easy transportation and installation
  • Resistance to high and low temperatures
  • Certified for Drinking Water
Warranty
2 Year Pump Parts and Labour Warranty
