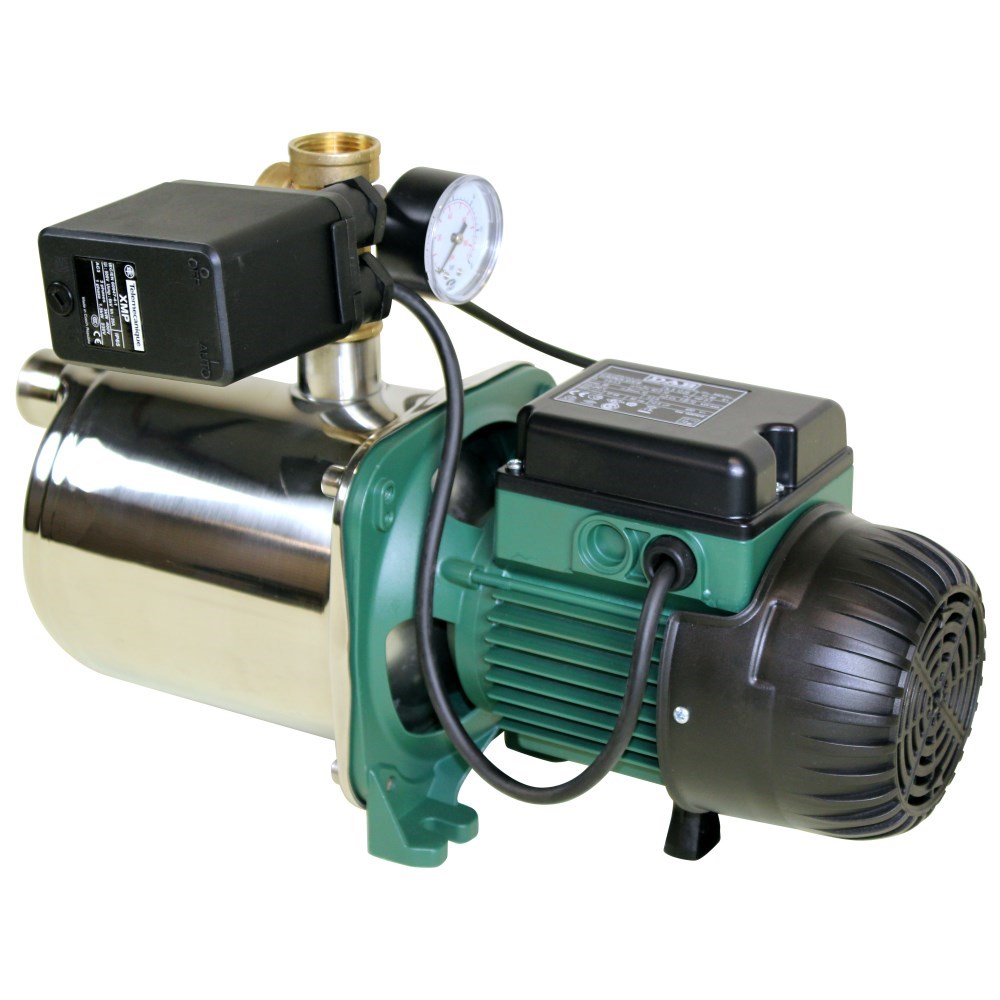

DAB-EUROINOX40/80MP - PUMP SURFACE MOUNTED MULTISTAGE WITH PRESSURE SWITCH 120L/MIN 59M

Order Code: 701544

Print
Product Code
DAB-EUROINOX40/80MP
RRP: $2090.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 5.9 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 1.36 Hp
kPa 598 kPa
Kilo Watts 1 kW
Head Range Category b. 40 - 59 m
Max Head (m) 59 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 12 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1000 W
Pack Weight (KG):
15.10
Description
1.0kW, 1.36hp, 240V, max hd 59m, max flow 120L/m, 12 taps. Ports 1” BSPF In, 1” BSPF Out. Includes NRV. 1
Features
Self Priming Stainless Steel Multistage Pressure Pumps

Ideal for small to large homes, irrigation systems, caravan parks and schools.
Quality pressure switch, adjustable differential, cable glands and liquid filled pressure gauge.

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702162
DABSR00005111
DABS R00005111 - BEARING FRONT
702163
DABSR00010751
DABS R00005112 BEARING REAR
702257
DABSR00005282
DABS R00005282 Mechanical Sealto suit all models EUROINOX
804945
DABS R00005306
DABS R00005306 - O-RING / GASKET
702261
DABSR00005309
DABS R00005309 - Self Priming Flange - EUROINOX all models
702270
DABSR00005337
DABS R00005337 Single Stage Kit Includes 1 Impeller, 1 Diffuser
702181
DABSR00010362 25UF PRONG
DABS R00010362 - CAPACITOR 25UF PRONG
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702271
DABSR00005339
HYDRAULICS EUROINOX40-80M-N.6
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702182
DABSR00005141
MOTOR ACTIVEEI40/50M-N.9
702166
DABSR00005115
MOTOR COVER ACTIVEEI40/50M-N.9
702260
DABSR00005290
MOTOR SHAFT ACTIVEEI40/50M-N.9
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702262
DABSR00005311
PUMP BODY ACTIVEEI40/50M-N.9
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702187
DABSR00005150
SUPPORT ACTIVEEI40/50M-N.9
