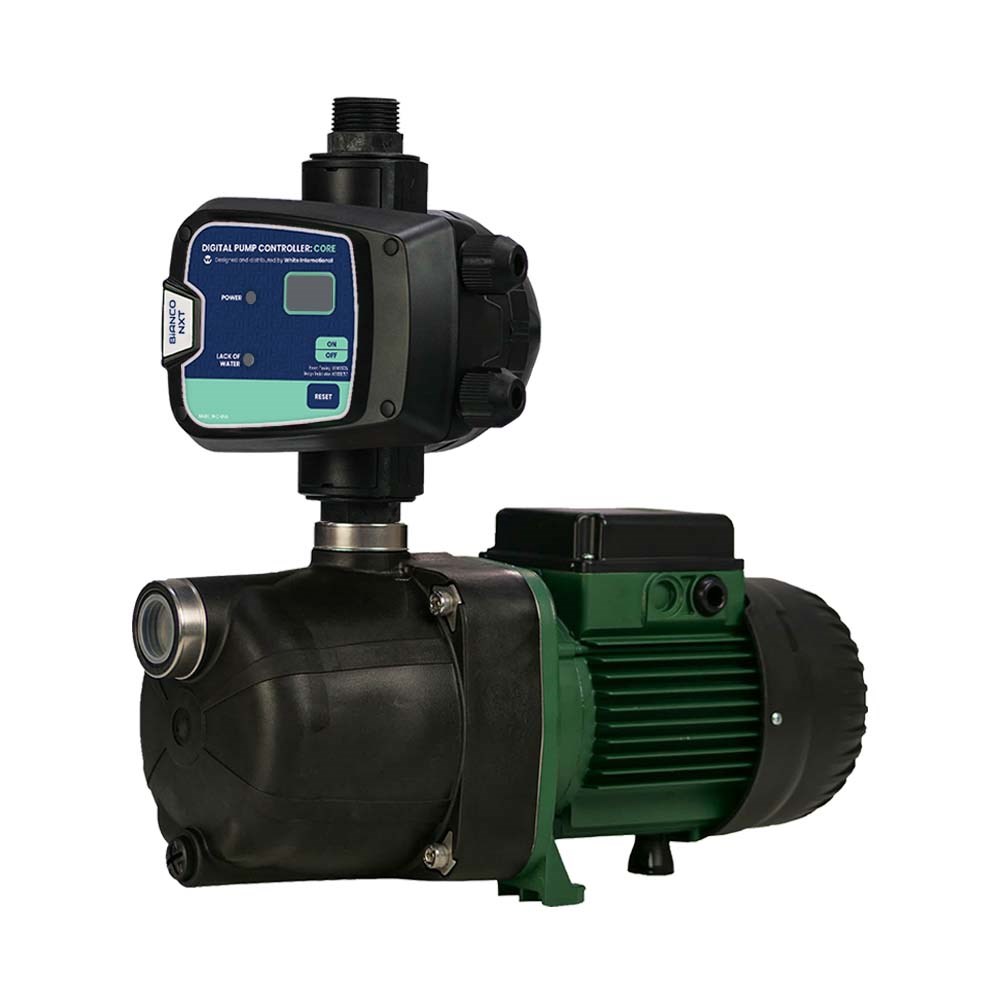

DAB-JETCOM102NXT - Technopolymer Surface Mounted Pump with nXt Controller 53.8m 0.75kW 240V

Order Code: 808410

Print
Product Code
DAB JETCOM102NXT
RRP: $968.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 5.3
Approval Drinking Water Approval
Amps 5.1
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60
Float No
Hp 1
kPa 527
Kilo Watts 0.75
Max Flow (L/min) 60
Head Range Category b. 40 - 59 m
Max Head (m) 53.8
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 6
Volts 240
Warranty (months) 24
Watts 750
Pack Weight (KG):
10.50
Description
DAB Technolpolymer Surface Mounted - Jet Pump with nXt Intelligent 1 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

0.75kW, 1.0hp, 240V, max hd 53m, max flow 60L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out

2 Year DAB Pumps Warranty
Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


Controller Brochure
View Brochure


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702087
DABSR00010537
DABS R00004028 / R00010537 - DAB Acitve J82M Assy Diffuser
702109
DABSR00004187
DABS R00004187 - O RING
702162
DABSR00005111
DABS R00005111 - BEARING FRONT
702163
DABSR00010751
DABS R00005112 BEARING REAR
702190
DABSR00010427
DABS R00005153 / R00010427 - DAB JI102M Impeller Inc Disffuser
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702166
DABSR00005115
MOTOR COVER ACTIVEEI40/50M-N.9
702188
DABSR00005151
MOTOR SHAFT ACTIVEJI102M-N.6
702161
DABSR00005110
NUTS AND BOLTS JETCOM102M-N.3
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702157
DABSR00005106
PUMP BODY JETCOM102M-N.3
702684
DABSR00010429
SEAL 102M
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702199
DABSR00005178
SUPPORT JETCOM102M-N.3
