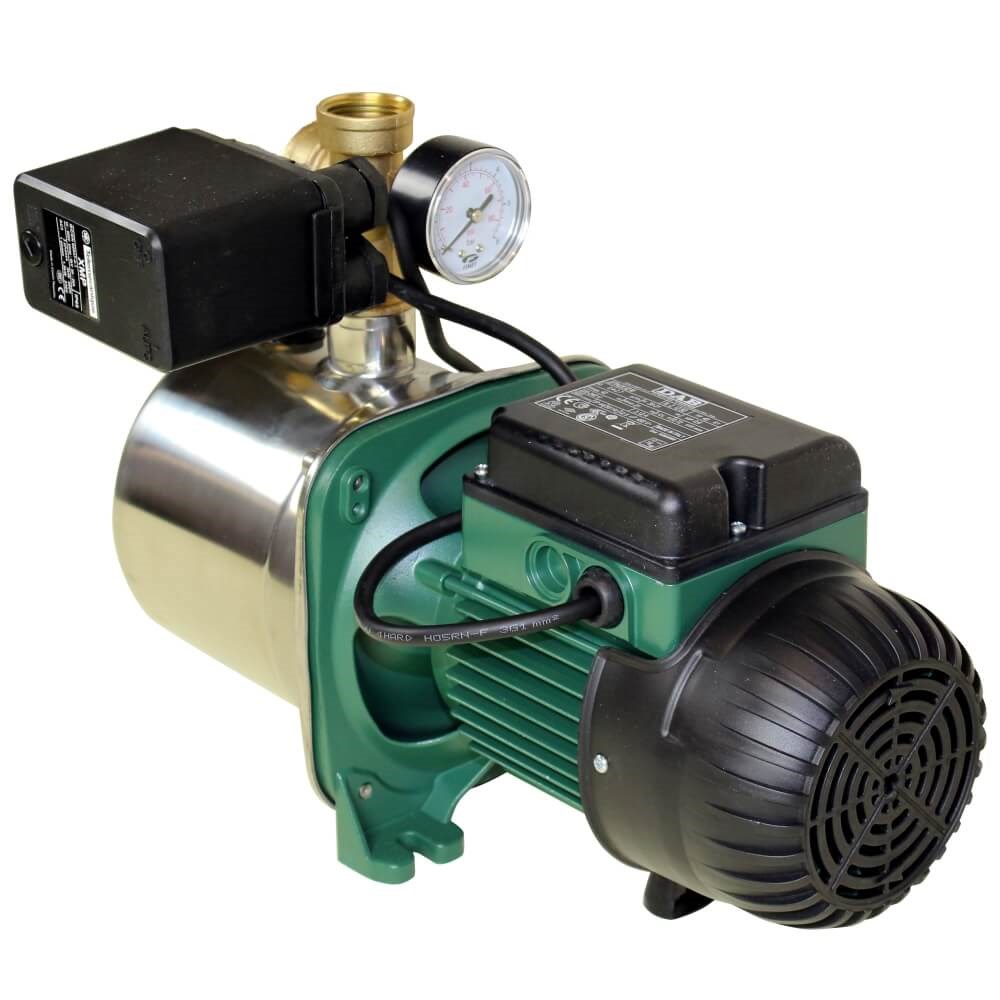

DAB-JINOX112MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 61M 1.0KW 240V

Order Code: 701588

Print
Product Code
DAB-JINOX112MP
RRP: $1320.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 6.1 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 1.36 Hp
kPa 618 kPa
Kilo Watts 1 kW
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1000 W
Pack Weight (KG):
13.80
Description
1.0kW, 1.36hp, 240V, max hd 61m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV
Features
Self Priming Stainless Steel Jet Pressure Pumps


PRESSURE TANKS SOLD SEPARATELY
2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702189
DABSR00005152
BOLTS ACTIVEJI102M-N.6
702087
DABSR00010537
DABS R00004028 / R00010537 - DAB Acitve J82M Assy Diffuser
702109
DABSR00004187
DABS R00004187 - O RING
702162
DABSR00005111
DABS R00005111 - BEARING FRONT
702163
DABSR00010751
DABS R00005112 BEARING REAR
702192
DABSR00005158
DABS R00005158 Impeller - includes Diffuser
702181
DABSR00010362 25UF PRONG
DABS R00010362 - CAPACITOR 25UF PRONG
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702182
DABSR00005141
MOTOR ACTIVEEI40/50M-N.9
702166
DABSR00005115
MOTOR COVER ACTIVEEI40/50M-N.9
702191
DABSR00005157
MOTOR SHAFT ACTIVEJI132M-N.6
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702183
DABSR00005144
PUMP BODY ACTIVEJI102M-N.6
702119
DABS R00009575
SEAL ACTIVEJ82M
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702187
DABSR00005150
SUPPORT ACTIVEEI40/50M-N.9
