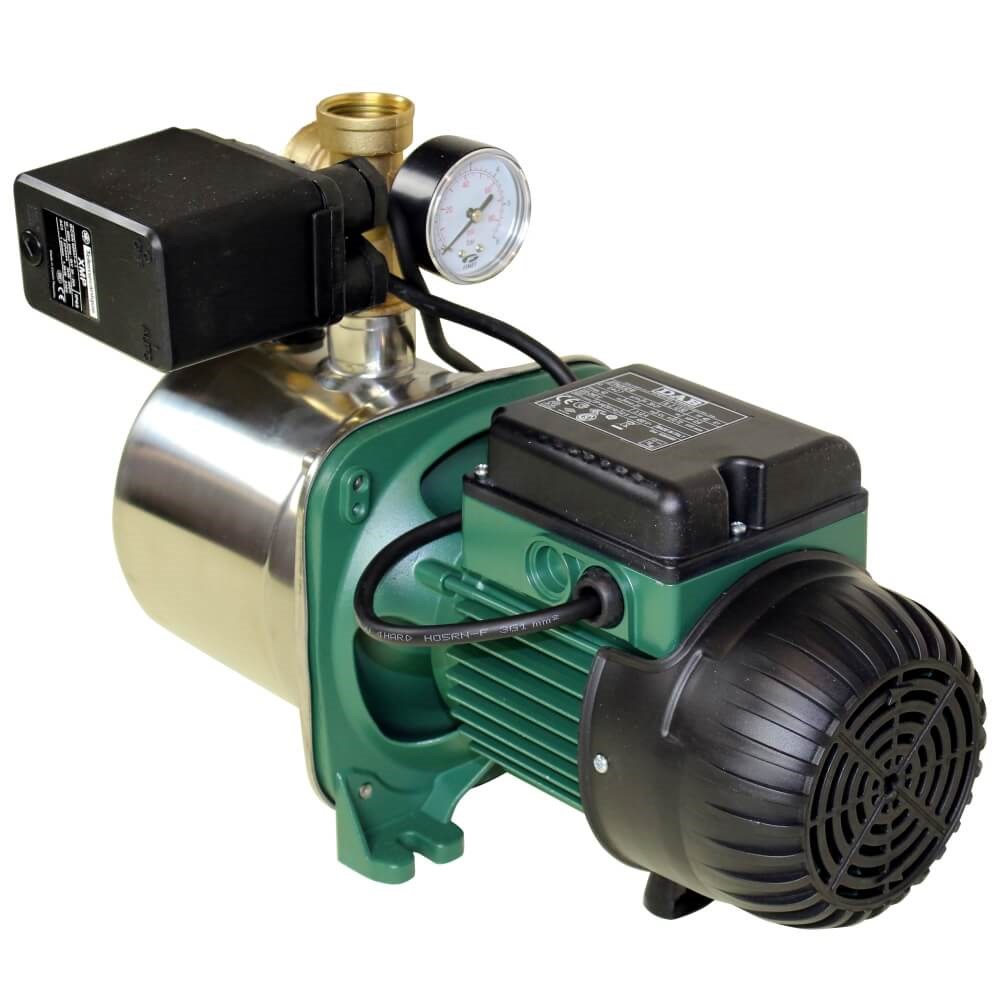

DAB-JINOX132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V

Order Code: 701592

Print
Product Code
DAB-JINOX132MP
RRP: $1375.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.8 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Hp 1.36 Hp
kPa 486 kPa
Kilo Watts 1 kW
Head Range Category b. 40 - 59 m
Max Head (m) 48 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 8 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 1000 W
Pack Weight (KG):
13.82
Description
1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m, 8 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV
Features
Self Priming Stainless Steel Jet Pressure Pumps


PRESSURE TANKS SOLD SEPARATELY
2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702189
DABSR00005152
702109
DABSR00004187
702163
DABSR00010751
702181
DABSR00010362 25UF PRONG
702158
DABSR00005107
702121
DABSR00004650
702084
DABSR00004017
702182
DABSR00005141
702191
DABSR00005157
702085
DABSR00004018
702183
DABSR00005144
702119
DABS R00009575
702083
DABSR00004016
702187
DABSR00005150
