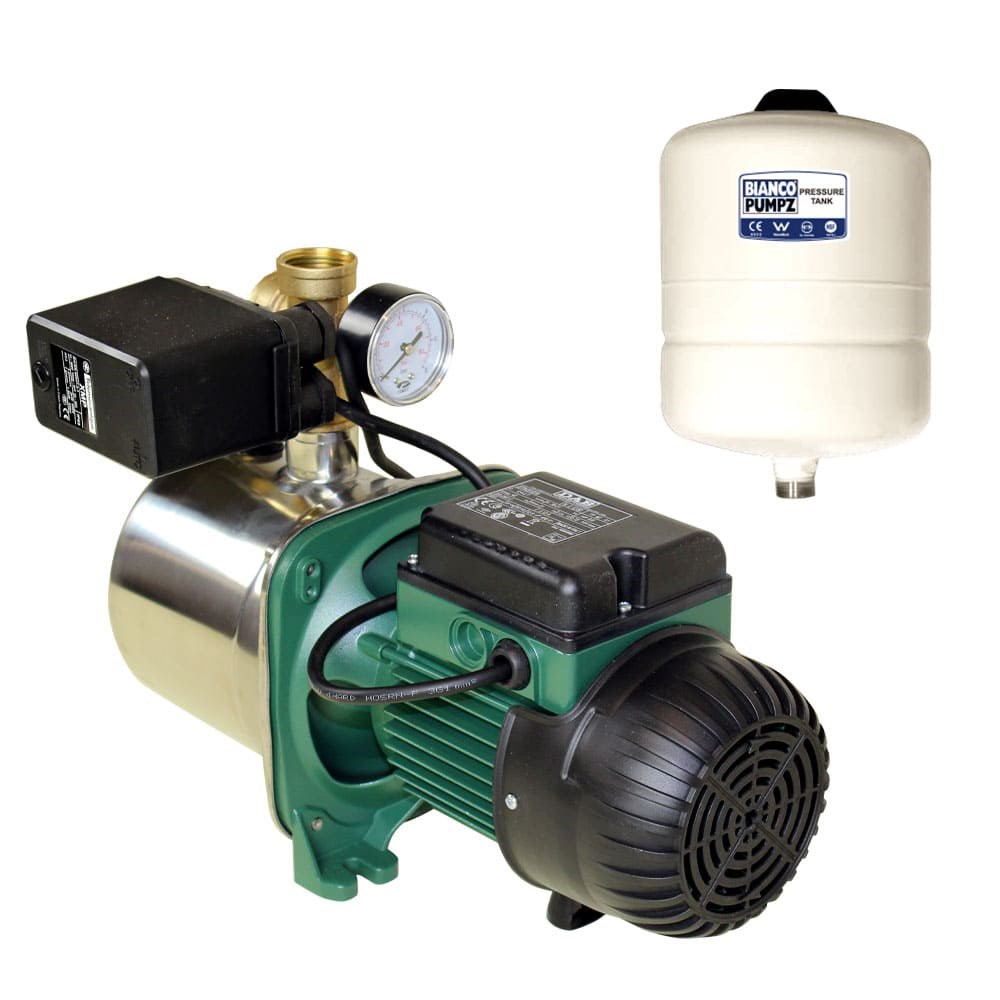

DAB-JINOX62MP-8V - Surface Mounted Jet Pump with PressureSwitch + 8L Vertical Pressure Tank

Order Code: 701598

Print
Product Code
DAB-JINOX62MP-8V
RRP: $1067.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.2 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 45 L/min
Hp 0.6 Hp
kPa 425 kPa
Kilo Watts 0.44 kW
Head Range Category b. 40 - 59 m
Max Head (m) 42 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 4 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 440 W
Pack Weight (KG):
0.00
Description

0.44kW, 0.6hp, 240V, max hd 42m, max flow 45L/m, 4 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV

Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 8L
  • Nominal Draw-off: 3L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 203 mm
  • Height: 304mm
  • Net Weight: 1.9Kg
  • System Connection: GI
  • Colour: Almond
