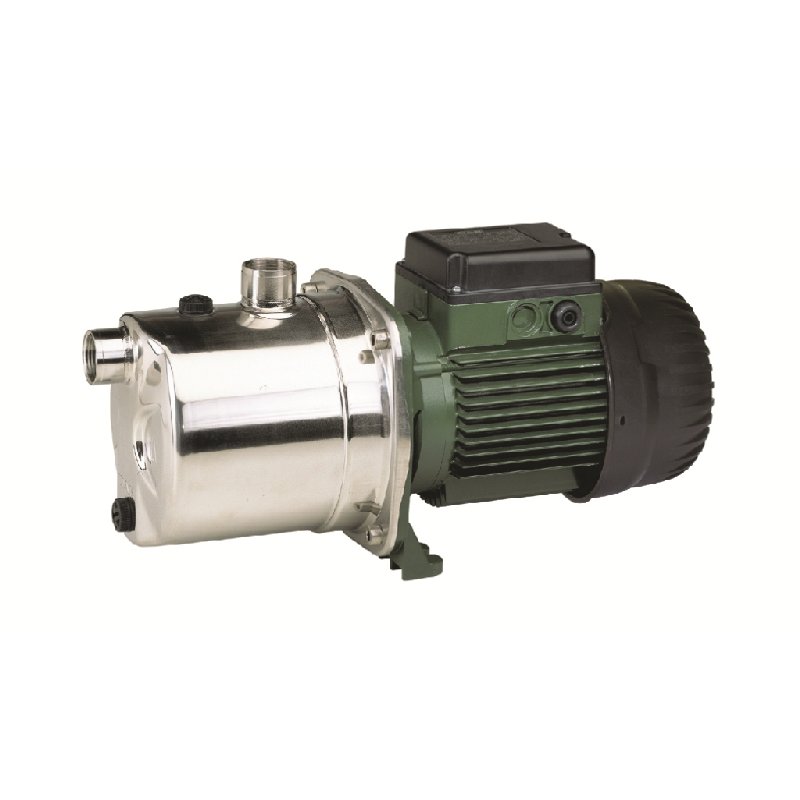

DAB-JINOX82M - PUMP SURFACE MOUNTED JET 60L/MIN 47M 0.6KW 240V

Order Code: 701603

Print
Product Code
DAB-JINOX82M
RRP: $825.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Clean Water
Bar 4.7 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8 Hp
kPa 476 kPa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 600 W
Pack Weight (KG):
8.56
Description
0.6kW, 0.8hp, 240V, max hd 47m, max flow 60L/m Ports 1” BSPF In, 1” BSPF Out
Features
Self Priming Stainless Steel Jet Pumps

Suitable for water supply in domestic installations, small-scale agriculture and gardening.
2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702109
DABSR00004187
702163
DABSR00010751
702175
DABS R00005129
702079
DABSR00008871 12.5UF
702077
DABSR00004002
702108
DABSR00004183
702084
DABSR00004017
702185
DABSR00005146
702085
DABSR00004018
702183
DABSR00005144
702119
DABS R00009575
702083
DABSR00004016
702184
DABSR00005145
