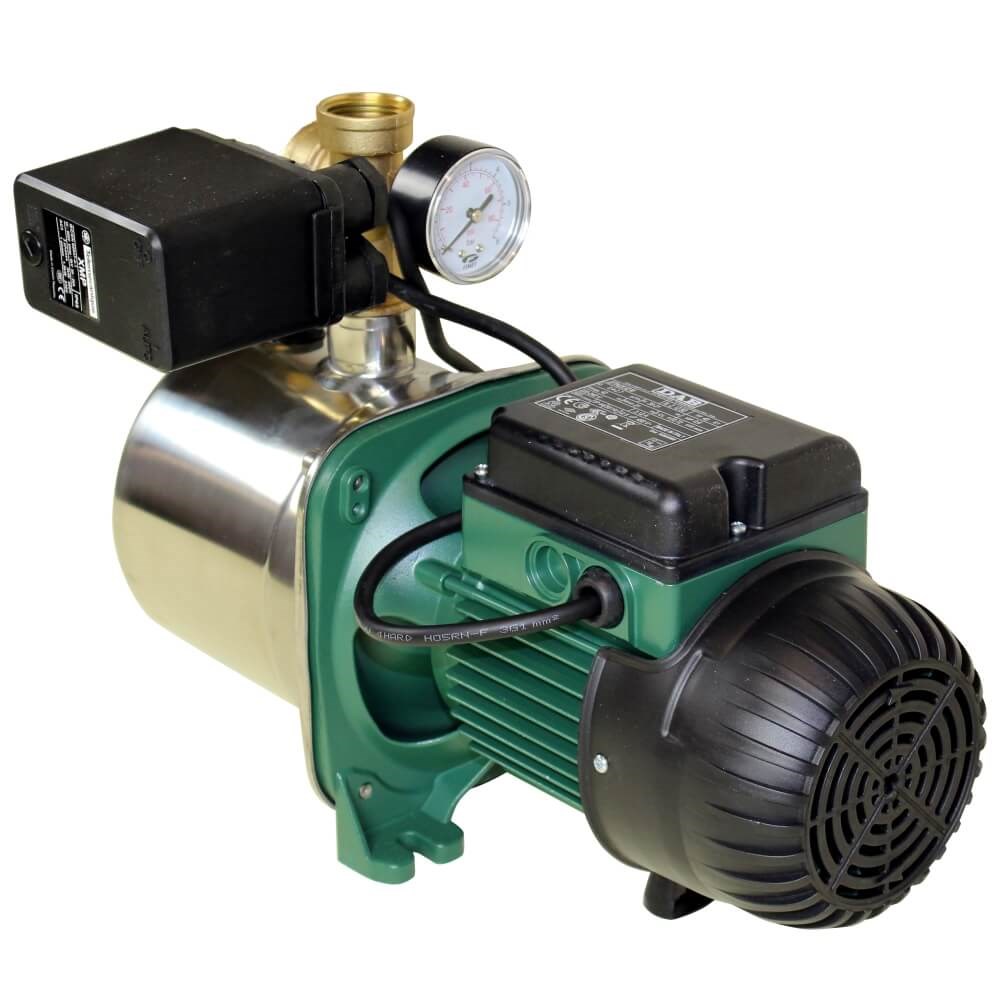

DAB-JINOX82MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 47M 0.6KW 240V

Order Code: 701605

Print
Product Code
DAB-JINOX82MP
RRP: $1155.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.7 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8 Hp
kPa 476 kPa
Kilo Watts 0.5 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 6 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 500 W
Pack Weight (KG):
10.20
Description
0.60kW, 0.8hp, 240V, max hd 47m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.
Features
Self Priming Stainless Steel Jet Pressure Pumps


PRESSURE TANKS SOLD SEPARATELY
2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702080
DABSR00004010
DABS R00004010 Impeller - includes diffuser
702087
DABSR00010537
DABS R00004028 / R00010537 - DAB Acitve J82M Assy Diffuser
702109
DABSR00004187
DABS R00004187 - O RING
702163
DABSR00010751
DABS R00005112 BEARING REAR
702175
DABS R00005129
DABS R00005129 - FRONT BEARING
702079
DABSR00008871 12.5UF
DABS R00008871 - CAPACITOR 12.5UF
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
702108
DABSR00004183
FAN GUARD ACTIVEEI25/30M-N.7
702084
DABSR00004017
LOAD PLUG ACTIVEEI25/30M-N.7
702081
DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
702185
DABSR00005146
MOTOR SHAFT ACTIVEJI82M-N.5
702186
DABSR00005147
NUTS AND BOLTS ACTIVEJI82M-N.5
702085
DABSR00004018
PLUG ACTIVEEI25/30M-N.7
702183
DABSR00005144
PUMP BODY ACTIVEJI102M-N.6
702119
DABS R00009575
SEAL ACTIVEJ82M
702083
DABSR00004016
SEAL COVER ACTIVEEI25/30M-N.7
702184
DABSR00005145
SUPPORT ACTIVEEI25/30M-N.7
