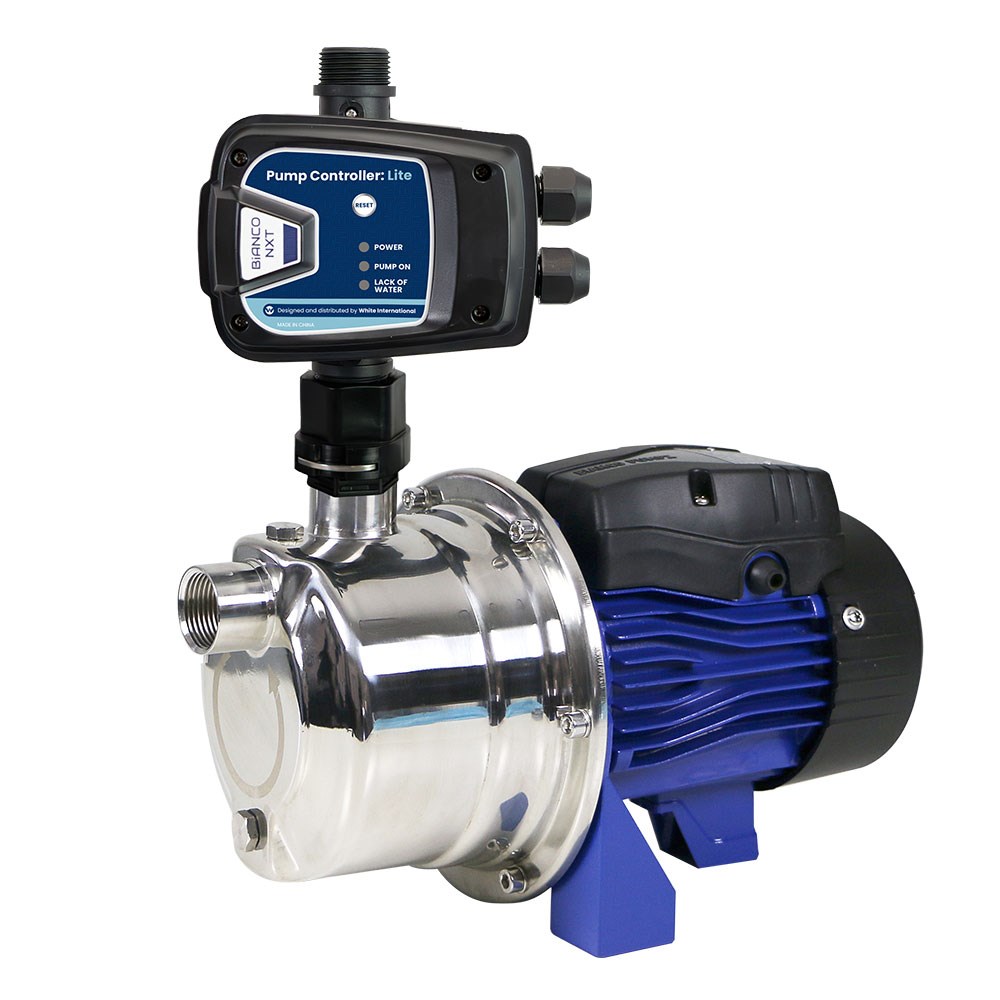

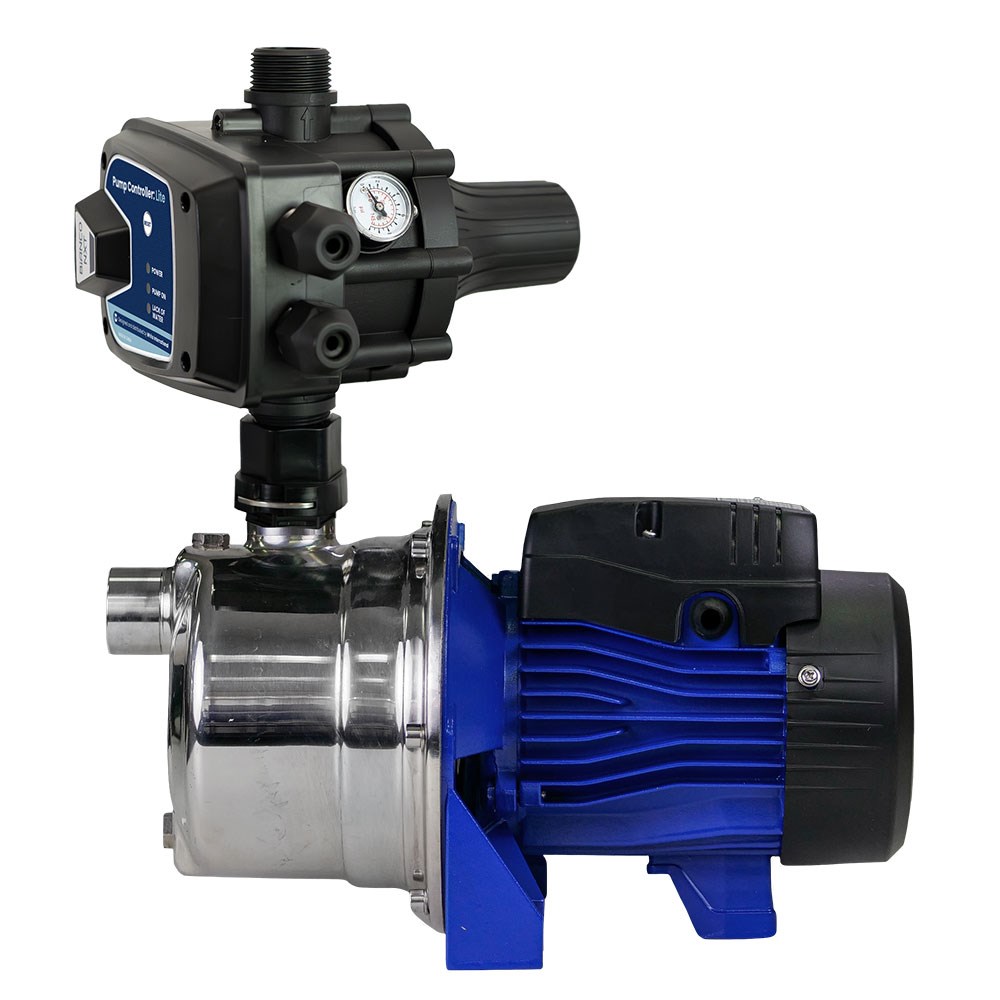

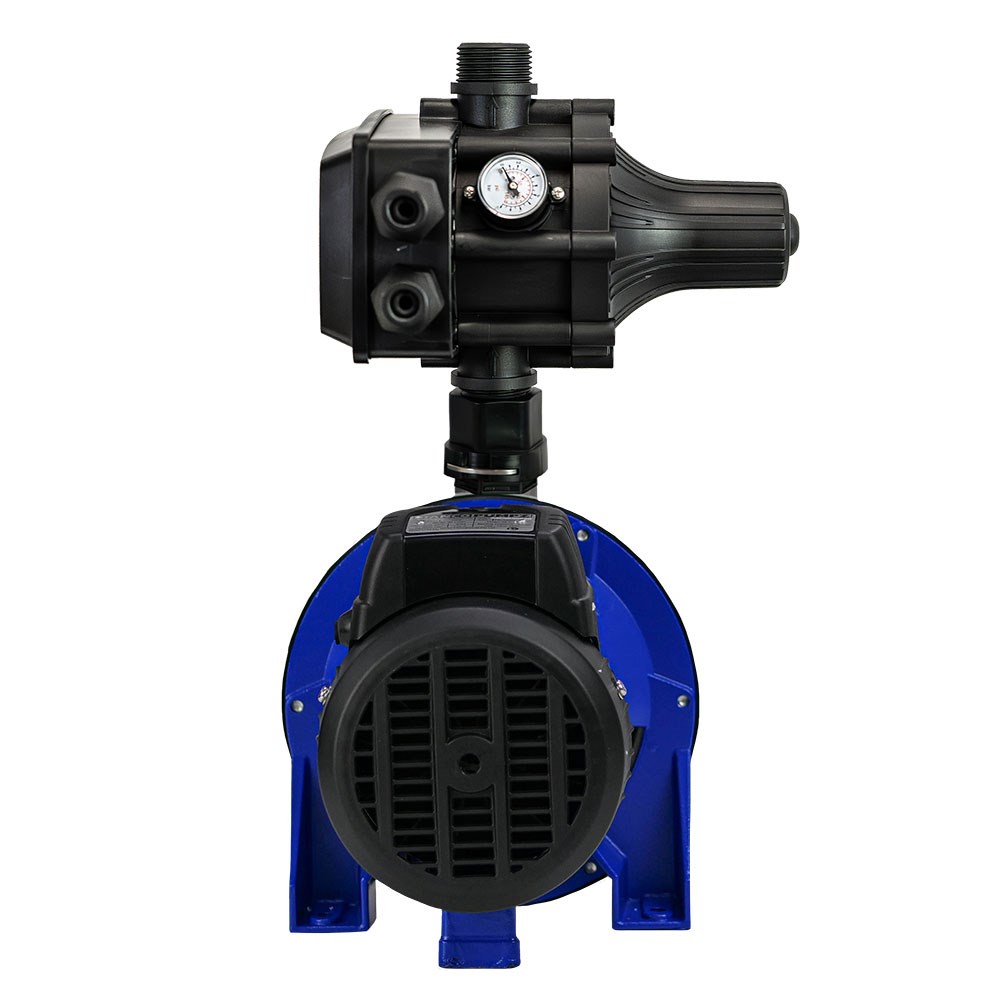

BIA-INOX60LITE - PUMP SURFACE MOUNTED CLEAN WATER WITH AUTO PUMP CONTROL 43M 62L/MIN 600W 240V

Order Code: 802801

Print
Product Code
BIA INOX60LITE
RRP: $635.80 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco NXT
Suitable For Clean Water
Float No
Hp 0.8 Hp
Kilo Watts 0.6 kW
Max Flow (L/min) 62 L/min
Max Head (m) 43 m
Powered Electric
Volts 240 V
Warranty (months) 24 months
Pack Weight (KG):
11.00
Description

0.6kW, 0.8hp, 240V, max hd 43m, max flow 62L/m, 5 taps. Ports 1" BSPF In, 1" BSPM Out. 2.2 bar controller.

Features

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations.

The pump is characterised by:

  • Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.
  • Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.
  • Run dry protection to prevent pump damage
  • Automatic electronic control has in-built check valve to prevent water backflow through the pump.
  • 2.2bar pump cut in for greater versatility.
  • Corrosion resistant pump body, diffuser and impeller to ensure pump durability
  • High quality mechanical shaft seal and high quality bearings
  • 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.

Applications

  • Used especially for supplying water to domestic installations and applications where a suction lift is required.

Package Information

  • (L) 420mm x (W) 230mm x (H) 460mm
Liquid:
Liquid Type: Clean Water
Clean water temperature range: 2 – 40oC
Materials:
Pump body: Stainless Steel 304
Impeller: Jet/Venturi
Diffuser: Noryl Glass Reinforced
Mechanical seal: Carbon/Ceramic/Nitrile
O rings: Nitrile
Power Cable: 2m Cable H05 3G1.0
Installation:
Maximum ambient temperature: 40oC
Maximum operating pressure: 6 bar
Pipe connections suction/discharge: 1” BSPF / 1” BSPM
Electrical data:
Rated voltage: 220 (-6%) -240V (+6%)
Mains frequency: 50 Hz
P2 (kW): 0.45 (Shaft Power)
Current: 3.5 amps
Capacitor: 10 uF
Motor duty: Continuous
Motor type: Asynchronous, TEFC
Motor protection: In-built thermal overload
Ingress protection: IP X4
Insulation class: F
Hydraulic Data:
Max Head: 43m
Max Flow: 62 l/min
Number taps: 5
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
