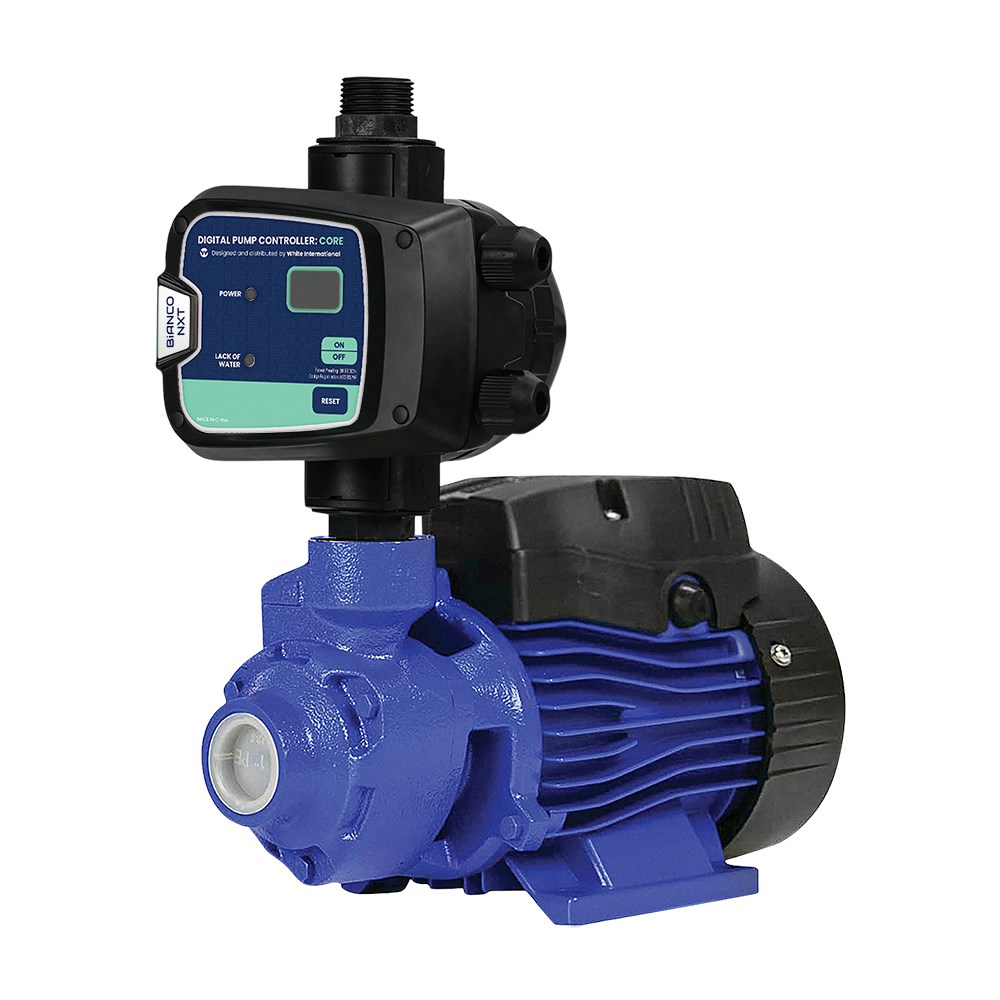

BIA-PTF37NXT - Cast Iron Peripheral Turbine Pump with nXt Pump Controller 45m 0.37kW 240V

Order Code: 808396

Print
Product Code
BIA-PTF37CORE
RRP: $605.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Product Type Pressure System
Suitable For Clean Water
Bar 4.4
Amps 2.5
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 27
Float No
Hp 0.5
kPa 441
Kilo Watts 0.37
Max Flow (L/min) 27
Head Range Category b. 40 - 59 m
Max Head (m) 45
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 2
Warranty (months) 24
Volts 240
Watts 370
Pack Weight (KG):
8.80
Description

0.37kW, 0.5hp, 240V, max hd 40m, max flow 40L/m Ports 1” BSPF In, 1” BSPF Out

Features

The Bianco 2.0 end suction peripheral turbine pump is an ideal device for low flow applications. They are especially suited for jacking pumps, commercial and industrial washdowns as well as domestic gardening. They are also ideal for tank water transfer.

Suitable for clean water and in applications where there is flooded suction The pump has the following features and benefits:

  • Includes iCON nXt electronic pump controller for automatic pump starting, stopping and restart after power loss and/or water loss.
  • Corrosion resistant pump body and impeller to ensure pump durability
  • Cataphoresis1 treatment of pump body for rust prevention to ensure no water discoloration or suspended particles
  • High quality mechanical shaft seal and high quality bearings
  • 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.
Applications
    • Jacking pumps
    • Commercial and industrial washdowns
    • Domestic gardening
    • Tank water transfer
    • Clean water in applications where there is flooded suction

    1. Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.



    2 Year BIANCO Pumpz Warranty

    Downloads
    Product Information and Data Sheets
    Download Product Information & Data Sheets v1.0
    Operation and Installation Manuals
    Download Operation & Installation Manuals v1.0
    Controller

    This pump includes the Bianco iCON nXt series of pump controller.

    The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



    Controller Features
    • Digital display gives you a real time indication of system pressure
    • Anti-cycle Protection
    • Dry run protection with auto restart function that tests for water availability every 24hrs
    • Anti-seize function if pump has not operated for last 24 hours
    • Controller automatically restarts pump after a power failure
    • Easy assembly and removal using push-n-connect fitting with U clip
    • Complies to AS/NZ 4020 drinking water standard
    • Over pressure protection turns pump off when 10 bar is reached
    • Overload protection


    Controller Flow Curve


    Controller Brochure
    View Brochure


    nXt Controller Data
    Function ON/OFF
    Modes 1
    Size 1.5Kw
    Rated Voltage 220-240V AC
    Max Amps 10
    Rated Power 1500w
    Rating IP65
    Union Size 1"
    Start Pressure 2.2 bar (32PSi)
    Stop Pressure on no flow
    Max Pressure 10 bar (145PSI)
    Max Liquid Temp 40°C
    Cable to Pump Plug and Play
    Flylead for Pump When sold as control only
    Power Cable 10AMP
    Communication -
    Accessories (Sold Separately) -
    1 ¼” Union Kit
