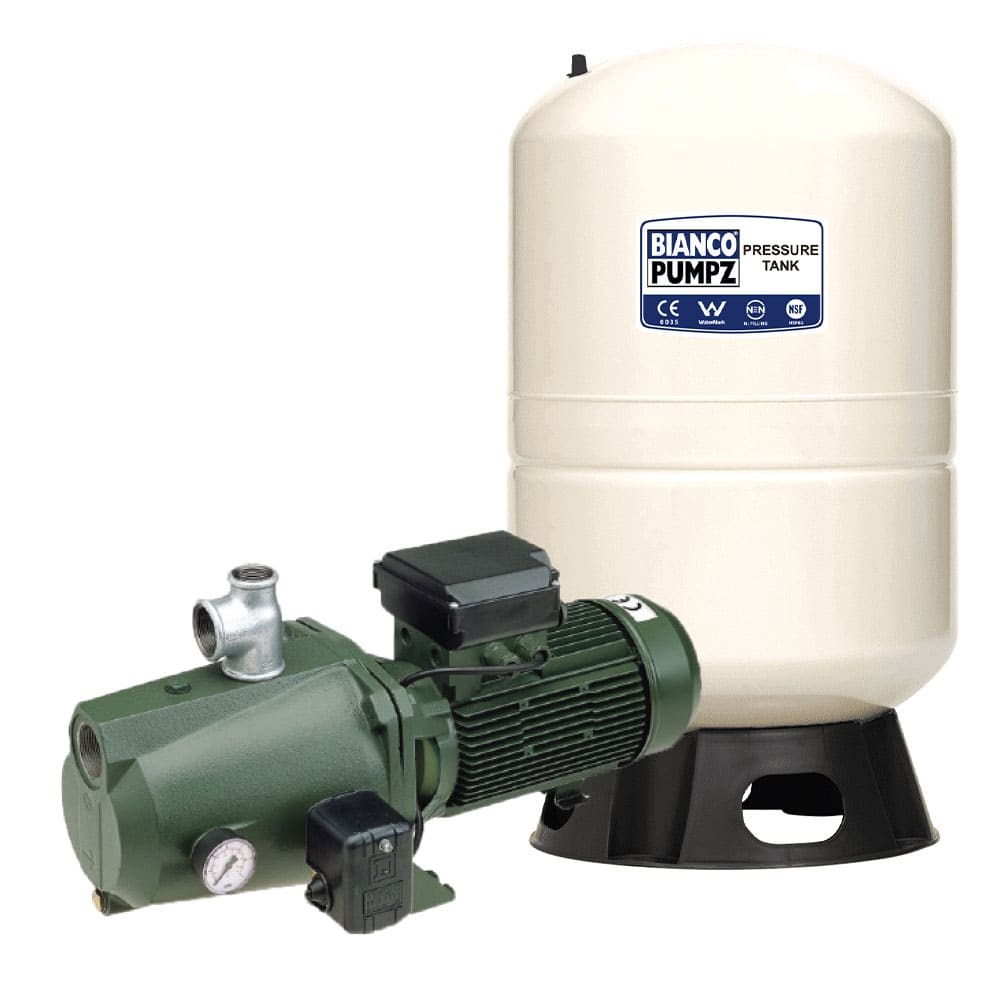

DAB-300MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 51M 2.2KW 240V + 60L

Order Code: 600180

Print
Product Code
DAB-300MP-50V
RRP: $3003.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Suitable For Clean Water
Bar 5.1 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175 L/min
Hp 3 Hp
Kilo Watts 2.2 kW
Head Range Category b. 40 - 59 m
Max Head (m) 51 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1-1/4" BSPF outlet
Powered Electric
Taps 17 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 2200 W
Pack Weight (KG):
0.00
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

2.2kW, 3.0hp, 240V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

Includes 60L Vertical Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 60L
  • Nominal Draw-off: 18L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 390 mm
  • Height: 592mm
  • Net Weight: 9.4Kg
  • System Connection: GI
  • Colour: Almond
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

You may also need these:

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
702207
DABSR00005199
702129
DABSR00004703
702219
DABSR00005213
702224
DABSR00005232
702220
DABSR00005221
702208
DABSR00005200
702226
DABSR00005234
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
