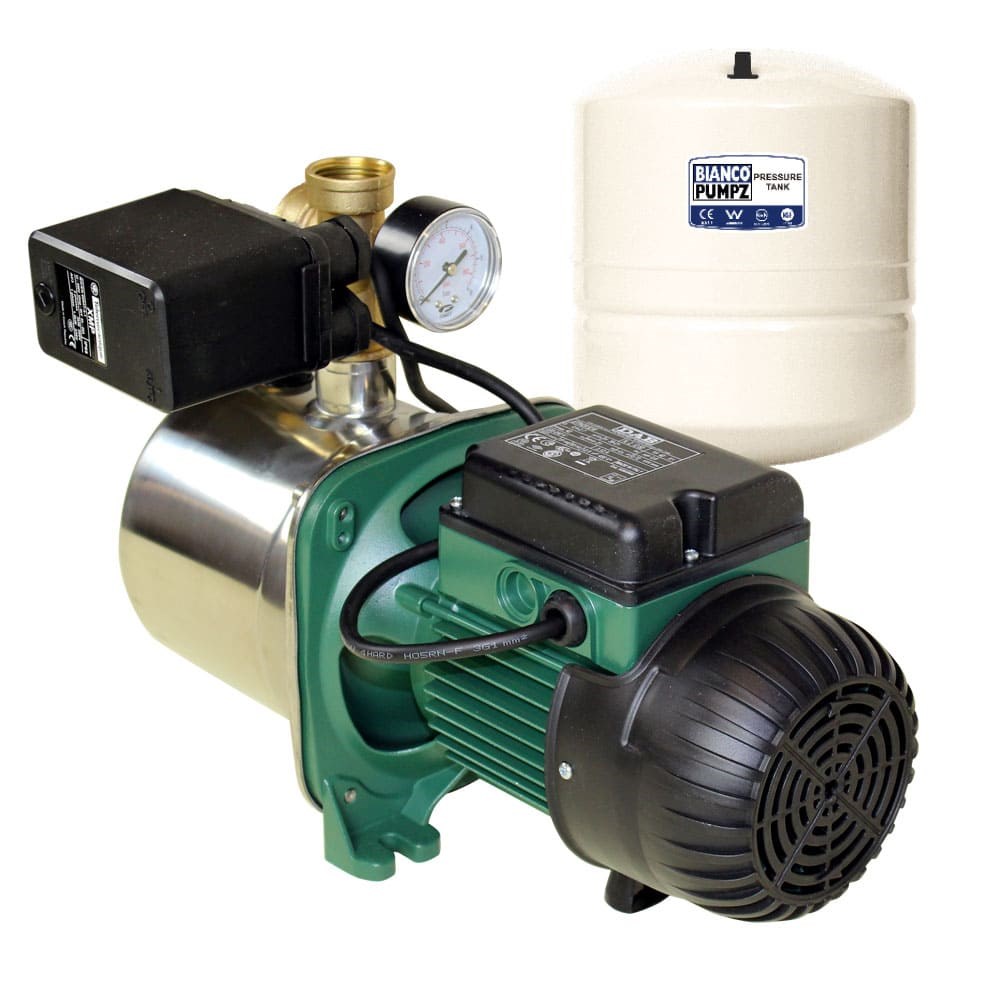

DAB-JINOX102MP-18V - Stainless Steel Self Priming Jet Pump with 18L Vertical Tank

Order Code: 701582

Print
Product Code
DAB-JINOX102MP-18V
RRP: $1375.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 5.3 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 1.0HP
kPa 527 kPa
Kilo Watts 0.75 kW
Head Range Category b. 40 - 59 m
Max Head (m) 53.8 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Pressure Switch
Taps 6 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 750 W
Pack Weight (KG):
0.00
Description
Self Priming Stainless Steel Jet Pressure Pumps

0.75 kW, 1.0 hp, 240V, Automatic with pressure switch, max hd 54m, max flow 60L/m

Includes a 18 Pressure Tank

Presssure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
