Order Code: 600243

RRP: $1386.00 incl. GST Find Your Nearest Store

Technical Specifications

Brand	DAB Pumps
Product Type	Pressure System
Suitable For	Clean Water
Bar	4.7 Bar
Approval	Approved For Drinking Water
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	80 L/min
Hp	1.36HP
kPa	470 kPa
Kilo Watts	1.0 kW
Head Range Category	b. 40 - 59 m
Max Head (m)	48m
Port Size Inlet	1" BSPF inlet
Port Size Outlet	1" BSPM outlet
Powered	Pressure Switch
Taps	8 Taps
Volts	240 V
Warranty (months)	24 Months
Watts	1000 W

Description

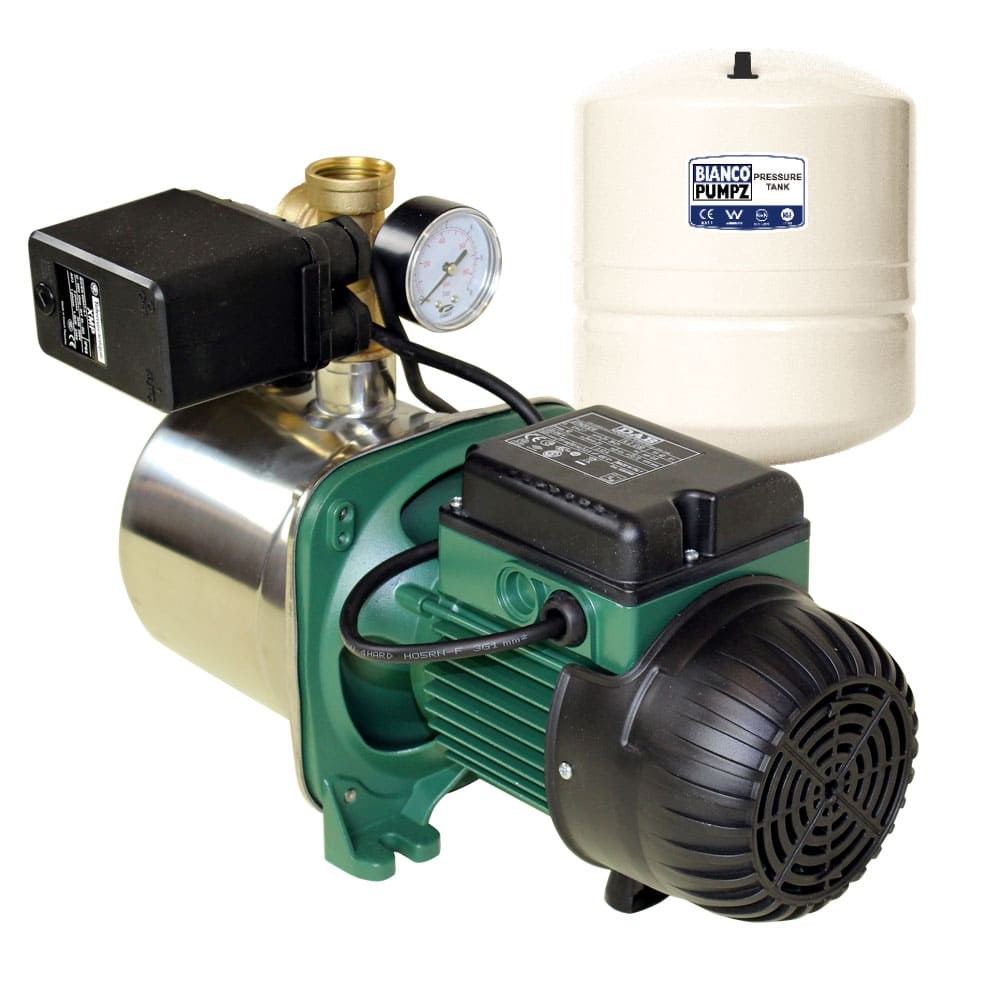

DAB Self Priming Stainless Steel Jet Pressure Pumps

1.0 kW, 1.36 hp, 240V, Automatic with pressure switch, max hd 48m, max flow 80L/m
Includes a 18 Pressure Tank

Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

Nominal volume: 18L
Nominal Draw-off: 6L
Continuous max. temp 90°C
Continuous max. pressure: 10 Bar (145PSI)
Pre-charge: 4 Bar (58PSI)
Diameter: 279 mm
Height: 375mm
Net Weight: 3.4Kg
System Connection: GI
Colour: Almond

Downloads

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagrams v1.0

Drinking Water Approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com

DAB-JINOX132MP-18V - Stainless Steel Self Priming Jet Pump with 18L Vertical Tank
