DAB-JINOX82MP-18V - DAB JINOX82MP Pump + 18V Tank

Order Code: 600250

Print
Product Code
DAB-JINOX82MP-18V
RRP: $1270.50 incl. GST
Find Your Nearest Store
Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.6 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8HP
kPa 460 kPa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Pressure Switch
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 600 W
Pack Weight (KG):
0.00
Description

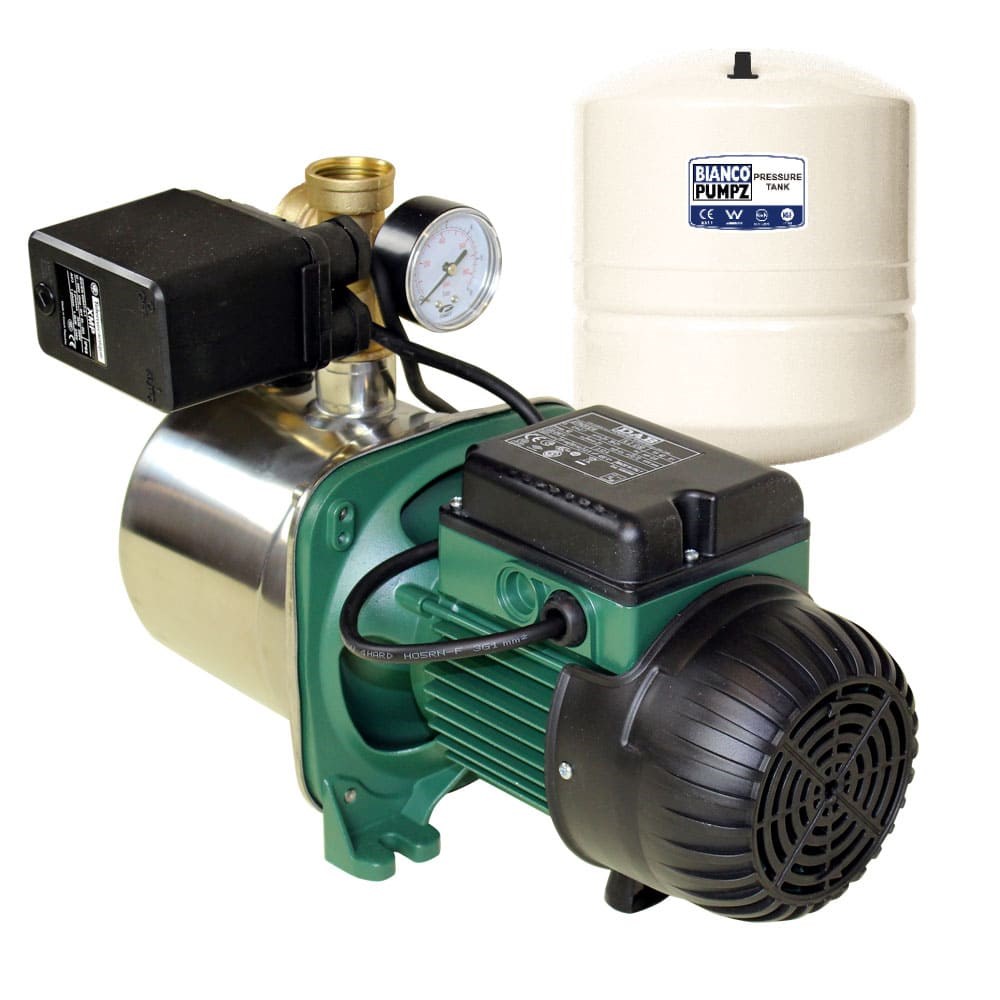

DAB Self Priming Stainless Steel Jet Pressure Pumps

0.6 kW, 0.8 hp, 240V, Automatic with pressure switch, max hd 47m, max flow 60L/m

Includes a 18 Pressure Tank


Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
