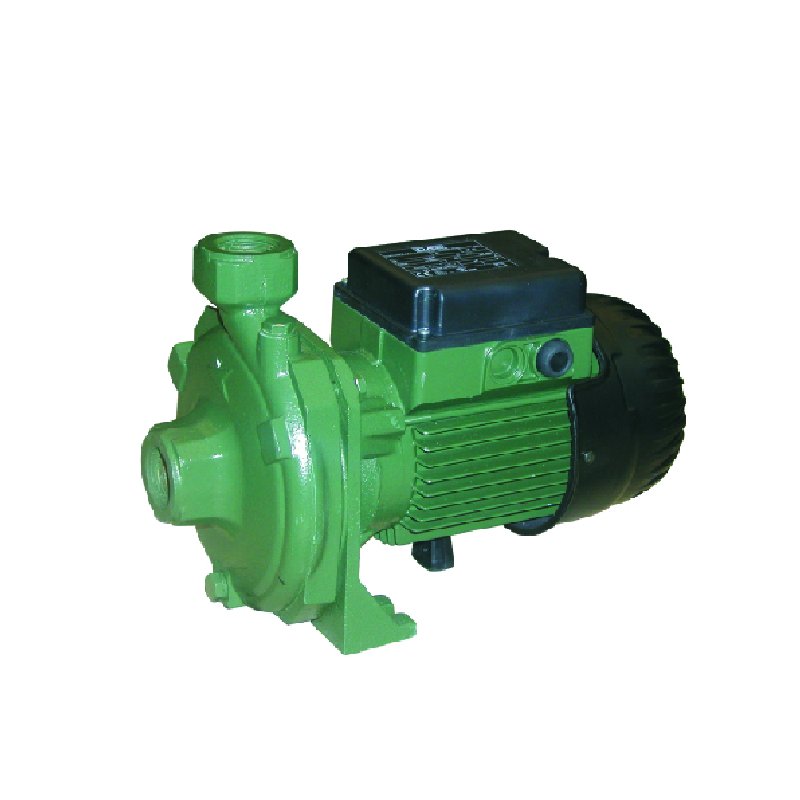

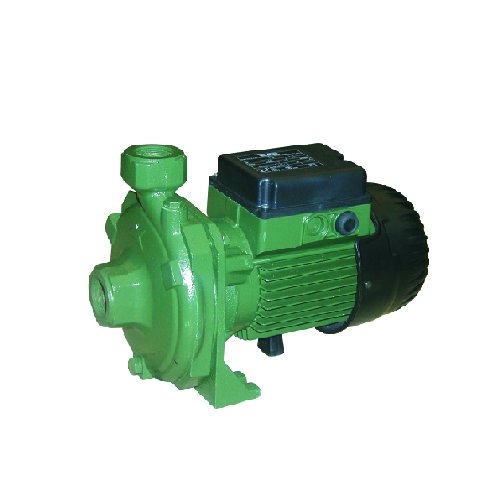

DAB-K12-200M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 280L/MIN 18M 0.75KW 240V

Order Code: 701613

Print
Product Code
DAB-K12-200M
RRP: $1155.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 1.84 Bar
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 280 L/min
Hp 1 Hp
kPa 186 kPa
Kilo Watts 0.75 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 18.4 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/2" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 750 W
Pack Weight (KG):
13.70
Description
Single Impeller Centrifugal Pump

Ideal for rivers, tanks, dams and water transfer applications.

0.75kW, 1.0hp, 240V, 2 pole, max hd 18.4m, max flow 280L/m, Ports 1 1/2" BSPF In, 1 1/2" BSPF Out

Warranty
2 Year Dab Pumps Warranty
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702162
DABSR00005111
DABS R00005111 - BEARING FRONT
702163
DABSR00010751
DABS R00005112 BEARING REAR
804949
DABS R00005496
DABS R00005496 - O RING-GASKET
702181
DABSR00010362 25UF PRONG
DABS R00010362 - CAPACITOR 25UF PRONG
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702219
DABSR00005213
LOAD PLUG DP100M-N.3
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
