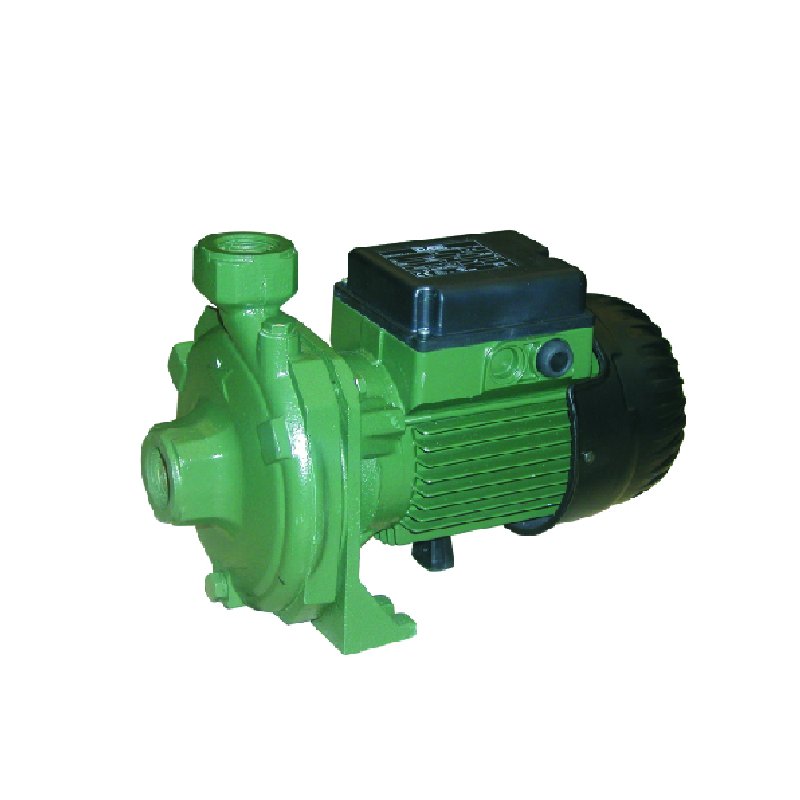

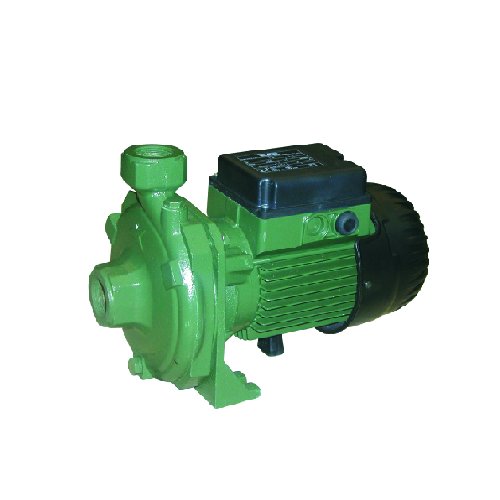

DAB-K12-200T - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 280L/MIN 18M 0.75KW 415V

Order Code: 701614

Print
Product Code
DAB-K12-200T
RRP: $1100.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 1.84 Bar
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 280 L/min
Hp 1 Hp
kPa 186 kPa
Kilo Watts 0.75 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 18.4 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/2" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 750 W
Pack Weight (KG):
15.74
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

0.75kW, 1.0hp, 415V, 2 pole, max hd 18.4m, max flow 280L/m, Ports 1 1/2" BSPF In, 1 1/2" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702162
DABSR00005111
DABS R00005111 - BEARING FRONT
702163
DABSR00010751
DABS R00005112 BEARING REAR
804949
DABS R00005496
DABS R00005496 - O RING-GASKET
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
702219
DABSR00005213
LOAD PLUG DP100M-N.3
