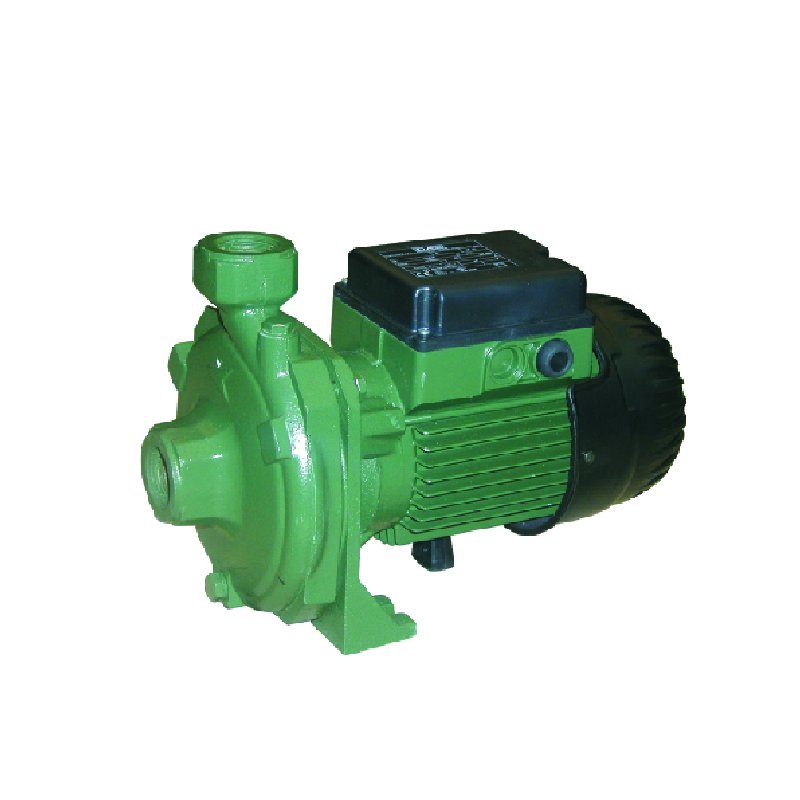

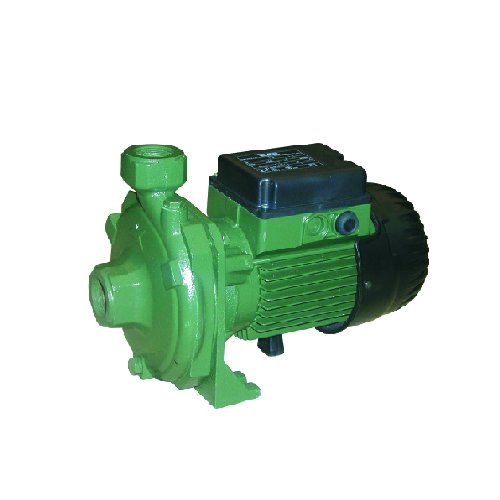

DAB-K14-400M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 650L/MIN 19M 1.85KW 240V

Order Code: 701615

Print
Product Code
DAB-K14-400M
RRP: $1980.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 1.9 Bar
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 650 L/min
Hp 2.5 Hp
kPa 192 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 19 m
Port Size Inlet 2" BSPF inlet
Port Size Outlet 2" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1850 W
Pack Weight (KG):
24.50
Description
Single Impeller Centrifugal Pump

Ideal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5HP, 240V, 2 pole, max hd 19m, max flow 650L/m, Ports 2" BSPF In, 2" BSPF Out

Warranty
2 Year Dab Pumps Warranty
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702222
DABSR00005230 40UF CABLE
DABS R00005230 - 40UF CABLE CAPACITOR DP251M-N.1
702393
DABSR00005560
DABS R00005560 - O RING
702637
DABSR00007502
DABS R00007502 - Impeller Kit,includes O-ring, Key, ImpellerNut for DAB K14-400
702129
DABSR00004703
FAN GUARD DP-M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
