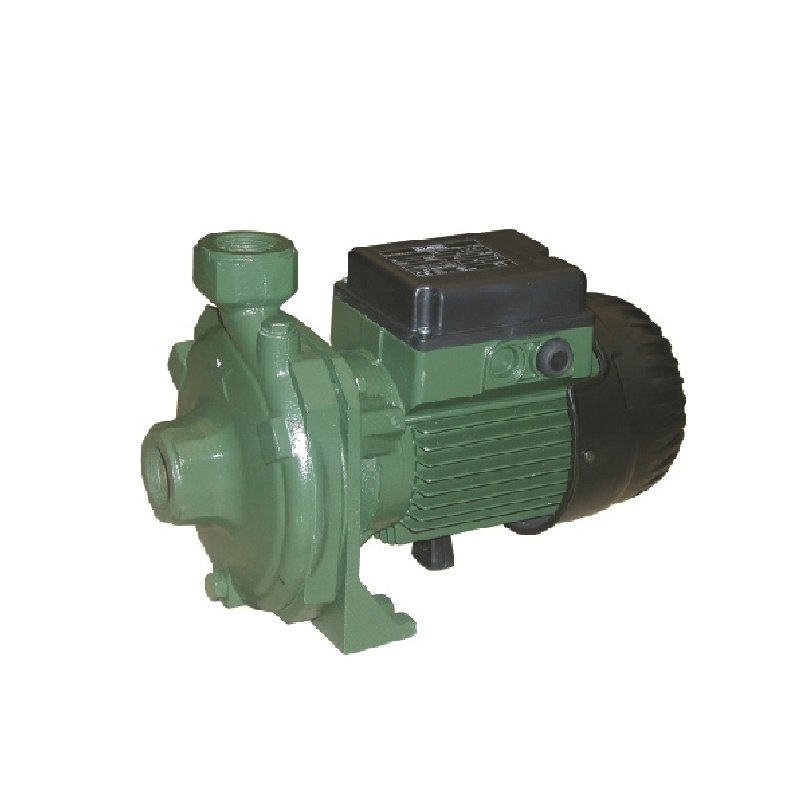

DAB-K20-41M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 100L/MIN 22M 0.37KW 240V

Order Code: 701618

Print
Product Code
DAB-K20-41M
RRP: $792.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 2.2 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 100 L/min
Hp 0.5 Hp
kPa 223 kPa
Kilo Watts 0.37 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 22 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 370 W
Pack Weight (KG):
10.26
Description
Single Impeller Centrifugal Pump

Ideal for rivers, tanks, dams and water transfer applications.

0.37kW, 0.5hp, 240V, 2 pole, max hd 22m, max flow 100L/m, Ports 1" BSPF In, 1" BSPF Out

2 Year Dab Pumps Warranty
Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702136
DABSR00004812 10UF PRONG
DABS R00004812 - CAPACITOR 10UF PRONG
702163
DABSR00010751
DABS R00005112 BEARING REAR
702175
DABS R00005129
DABS R00005129 - FRONT BEARING
804949
DABS R00005496
DABS R00005496 - O RING-GASKET
702628
DABSR00007493
DABS R00007493 Impeller Kit, includes Diffuser, O-ring, Key, Impeller Nut
702077
DABSR00004002
FAN ACTIVEEI25/30M-N.7
702108
DABSR00004183
FAN GUARD ACTIVEEI25/30M-N.7
702081
DABSR00004011
MOTOR COVER ACTIVEEI25/30M-N.7
