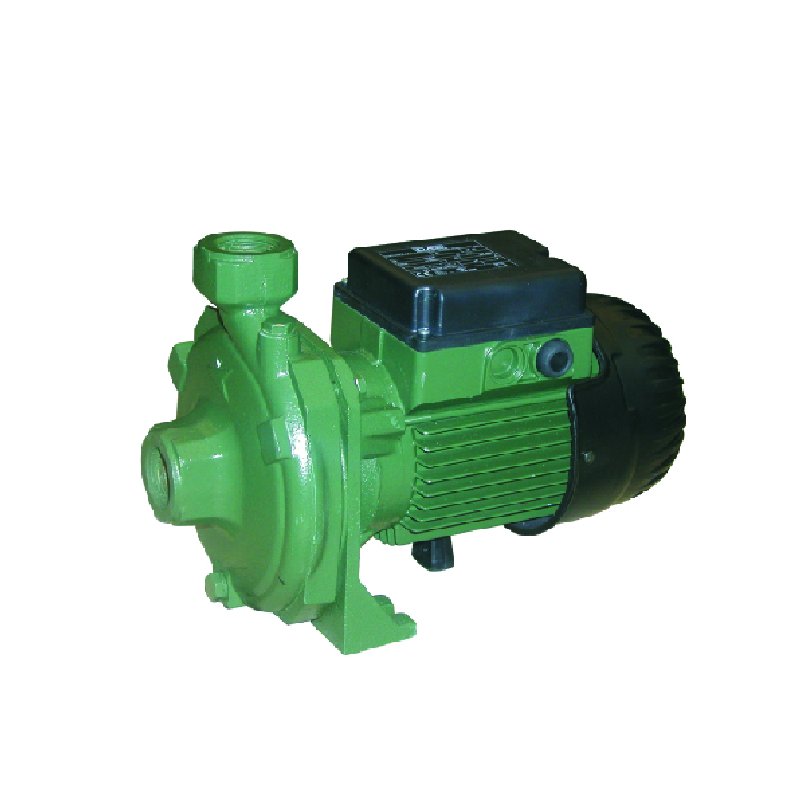

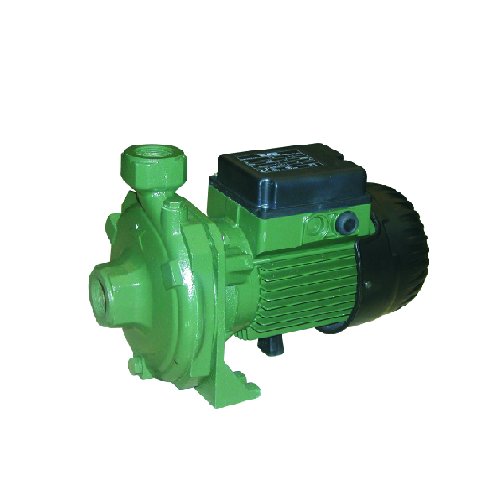

DAB-K28-500T - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 650L/MIN 35M 4.0KW 415V

Order Code: 701620

Print
Product Code
DAB-K28-500T
RRP: $3520.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 3.5 Bar
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 650 L/min
Hp 5.5 Hp
kPa 355 kPa
Kilo Watts 4 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 35 m
Port Size Inlet 2 1/2" BSPF inlet
Port Size Outlet 2" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 4000 W
Pack Weight (KG):
40.60
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

4.0kW, 5.5hp, 415V, 2 pole, max hd 35m, max flow 650L/m, Ports 2 1/2" BSPF In, 2" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.02
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702384
DABSR00005546
DABS R00005546 - FRONT BEARING
702385
DABSR00005547
DABS R00005547 - REAR BEARING
702387
DABSR00005551
DABS R00005551 SEAL K28/500T-N.2
702399
DABSR00005569
DABS R00005569 - O RING
702640
DABSR00007505
DABS R00007505 - Impeller Kit,includes O-ring, Key, ImpellerNut for DAB K28-500
702154
DABSR00005039
FAN K28/500T-N.2
702219
DABSR00005213
LOAD PLUG DP100M-N.3
