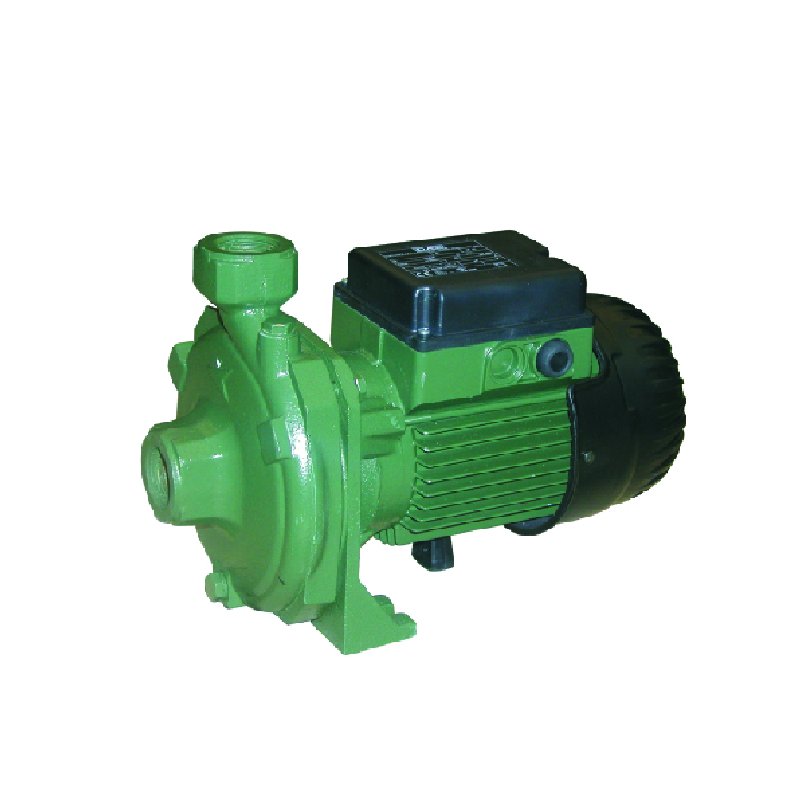

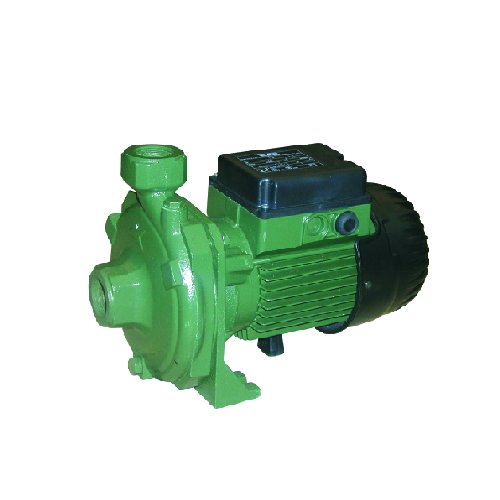

DAB-K30-100M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 180L/MIN 29.2M 1.1KW 240V

Order Code: 701621

Print
Product Code
DAB-K30-100M
RRP: $1540.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 2.92 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 180 L/min
Hp 1.5 Hp
kPa 296 kPa
Kilo Watts 1.1 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 29.2 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 1100 W
Pack Weight (KG):
19.88
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

1.1kW, 1.5hp, 240V, 2 pole, max hd 29.2m , max flow 180L/m, Ports 1 1/2" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.02
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702212
DABSR00005206 31.5UF CABLE
DABS R00005206 - CAPACITOR 31.5UF CABLE
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702631
DABSR00007496
DABS R00007496 - 2 Impellers, includes Diffuser, Key, Nut for DAB K55-50
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
