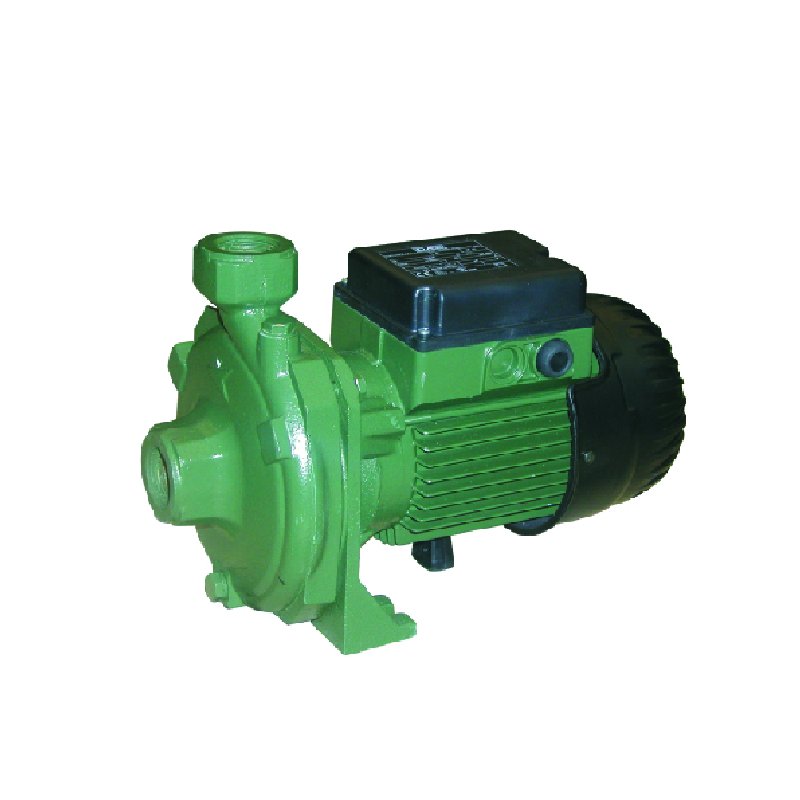

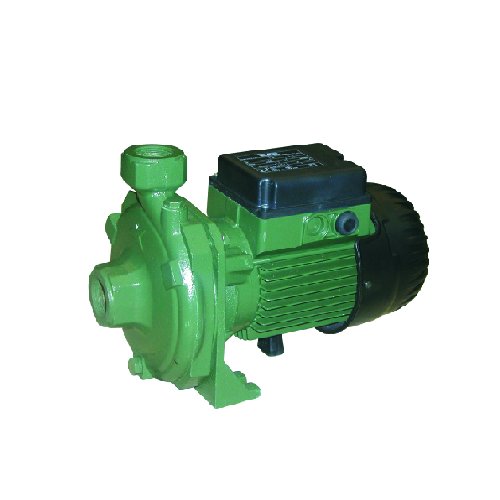

DAB-K30-70M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 120L/MIN 31.8M 0.75KW 240V

Order Code: 701623

Print
Product Code
DAB-K30-70M
RRP: $1045.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 3.18 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 1 Hp
kPa 322 kPa
Kilo Watts 0.75 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 31.8 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 750 W
Pack Weight (KG):
15.78
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

0.75kW, 1.0hp, 240V, 2 pole, max hd 31.8m, max flow 120L/m, Ports 1" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
BOARD ACTIVEEI25/30M-N.7
702162
DABSR00005111
DABS R00005111 - BEARING FRONT
702163
DABSR00010751
DABS R00005112 BEARING REAR
702358
DABSR00005509
DABS R00005509 - O RING
702630
DABSR00007495
DABS R00007495 - Impeller Kit,includes O-ring, Key, ImpellerNut for DAB K30-70
702181
DABSR00010362 25UF PRONG
DABS R00010362 - CAPACITOR 25UF PRONG
702158
DABSR00005107
FAN ACTIVEEI40/50M-N.9
702121
DABSR00004650
FAN GUARD ACTIVEEI40/50M-N.9
