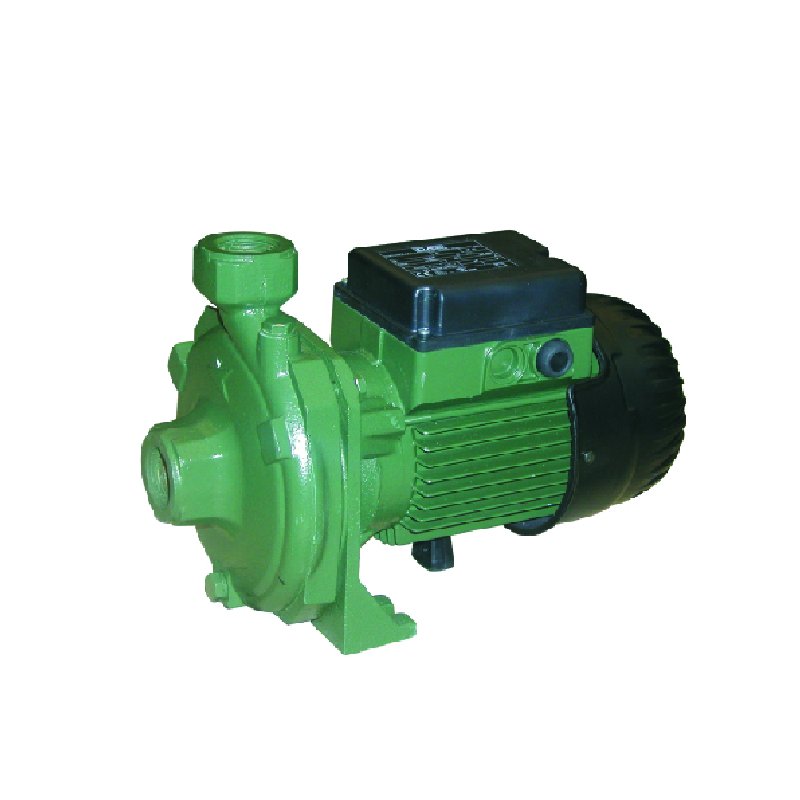

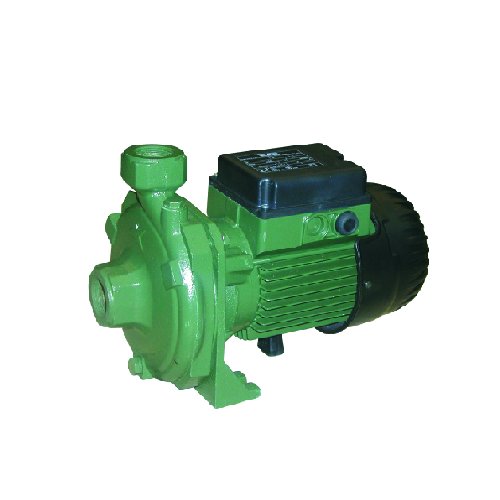

DAB-K36-100M - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 180L/MIN 34.9M 1.85KW 240V

Order Code: 701625

Print
Product Code
DAB-K36-100M
RRP: $1760.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 3.49 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 180 L/min
Hp 2.5 Hp
kPa 354 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category a. 0 - 39 m
Max Head (m) 34.9 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 240 V
Watts 1850 W
Pack Weight (KG):
23.80
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5hp, 240V, 2 pole, max hd 34.9m, max flow 180L/m, Ports 1 1/2" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702222
DABSR00005230 40UF CABLE
DABS R00005230 - 40UF CABLE CAPACITOR DP251M-N.1
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702632
DABSR00007497
DABS R00007497 - Impeller Kit,includes O-ring, Key, ImpellerNut for DAB K36-100
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
