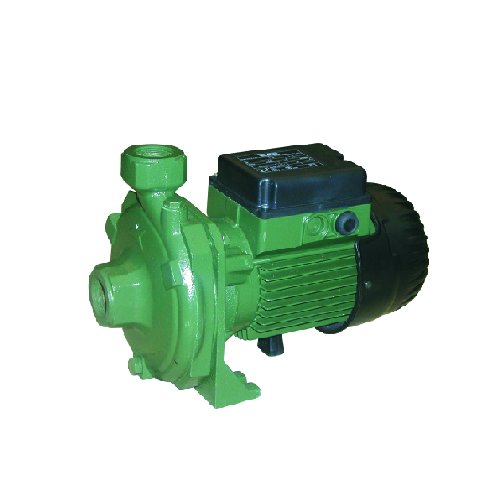

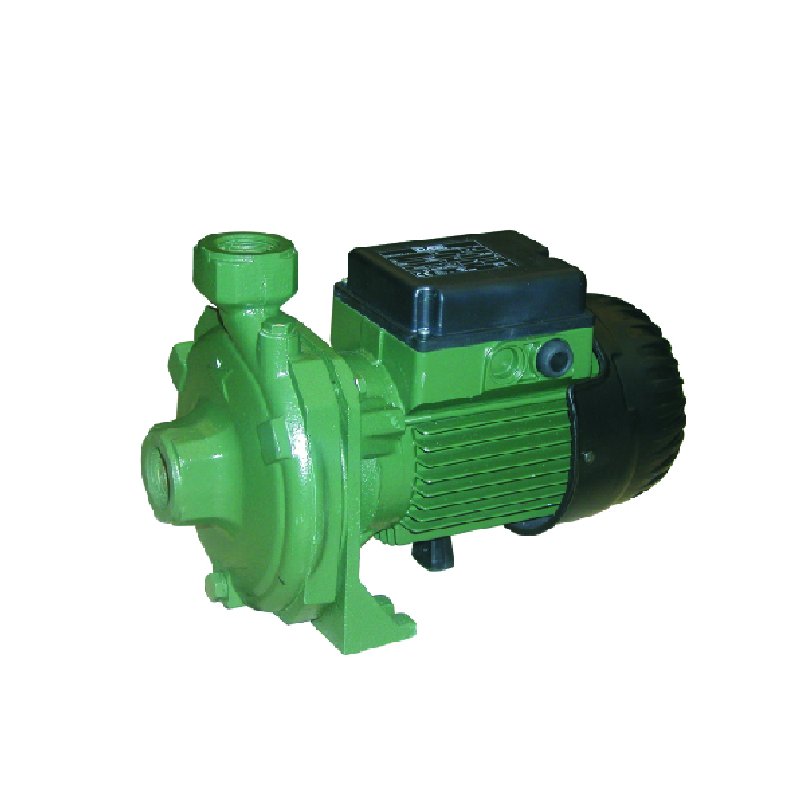

DAB-K55-200T - PUMP SURFACE MOUNTED CENTRIFUGAL WASHDOWN 335L/MIN 54M 4.0KW 415V

Order Code: 701633

Print
Product Code
DAB-K55-200T
RRP: $3080.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Impeller CastIron Pump
Suitable For Water Transfer
Bar 5.4 Bar
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 335 L/min
Hp 5.5 Hp
kPa 547 kPa
Kilo Watts 4 kW
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 54 m
Port Size Inlet 2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 4000 W
Pack Weight (KG):
38.36
Description
Single Impeller Centrifugal PumpIdeal for rivers, tanks, dams and water transfer applications.

4.0kW, 5.5hp, 415V, 2 pole, max hd 54m, max flow 335L/m, Ports 2" BSPF In, 1 1/4” BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702141
DABSR00004894
DABS R00004894 - O RING
702384
DABSR00005546
DABS R00005546 - FRONT BEARING
702385
DABSR00005547
DABS R00005547 - REAR BEARING
702387
DABSR00005551
DABS R00005551 SEAL K28/500T-N.2
702636
DABSR00007501
DABS R00007501 - Impeller Kit,includes O-ring, Key, ImpellerNut for DAB K55-200
702154
DABSR00005039
FAN K28/500T-N.2
702219
DABSR00005213
LOAD PLUG DP100M-N.3
