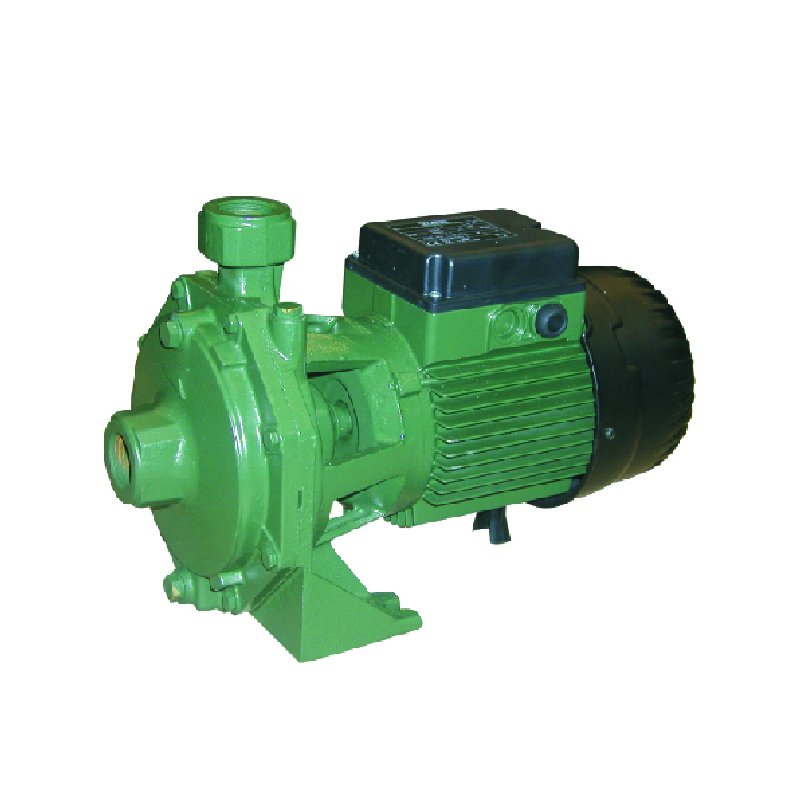

DAB-K55-50T - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 110L/MIN 62M 1.85KW 415V

Order Code: 701635

Print
Product Code
DAB-K55-50T
RRP: $1980.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Suitable For Water Transfer
Bar 6.2 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 110 L/min
Hp 2.5 Hp
kPa 628 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 1850 W
Pack Weight (KG):
23.20
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

1.85kW, 2.5hp, 415V, 2 pole, max hd 62m, max flow 110L/m, Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702424
DABSR00005622
DABS R00005622 - GASKET
702431
DABSR00005638
DABS R00005638 - 2 Impellers, includes Diffuser, Key, Nut tosuit DAB K55-50
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
