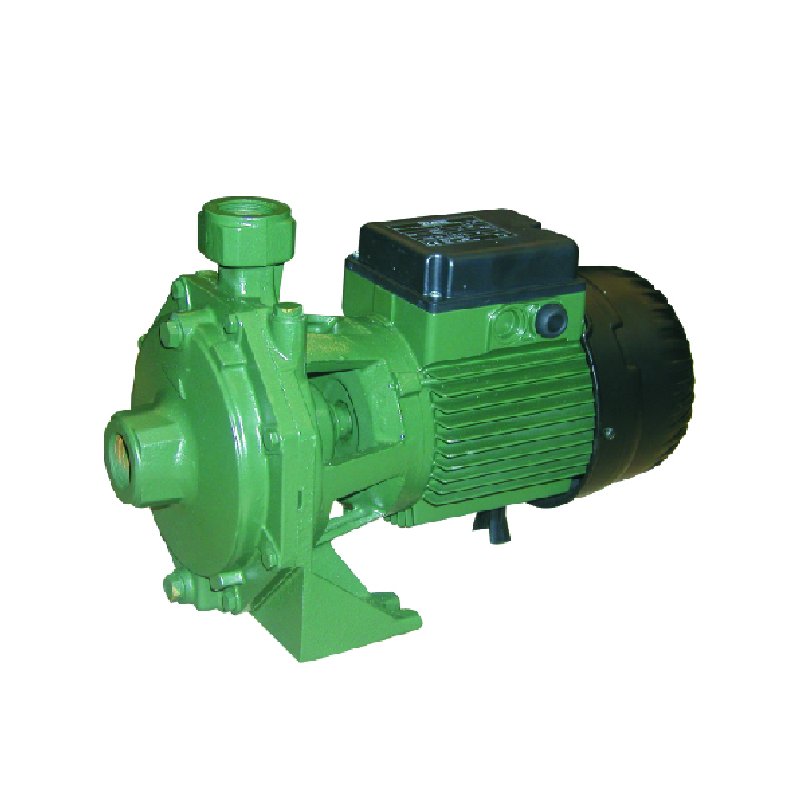

DAB-K66-100T - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 160L/MIN 73M 3.0KW 415V

Order Code: 701636

Print
Product Code
DAB-K66-100T
RRP: $3630.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Suitable For Water Transfer
Bar 7.3 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 160 L/min
Hp 4 Hp
kPa 739 kPa
Kilo Watts 3 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 73 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 415 V
Warranty (months) 24 Months
Watts 3000 W
Pack Weight (KG):
0.00
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

3.0kW, 4.0hp, 415V, 2 pole, max hd 73m, max flow 160L/m, Ports 1 1/2" BSPF In, 1" BSPF Out

Warranty

2 Year Dab Pumps Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.04
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
702384
DABSR00005546
DABS R00005546 - FRONT BEARING
702385
DABSR00005547
DABS R00005547 - REAR BEARING
702436
DABSR00005649
DABS R00005649 - GASKET
702442
DABSR00005655
DABS R00005655 - 2 Impellers, includes Diffuser, Key, Nut tosuit DAB K66-100
702154
DABSR00005039
FAN K28/500T-N.2
702219
DABSR00005213
LOAD PLUG DP100M-N.3
