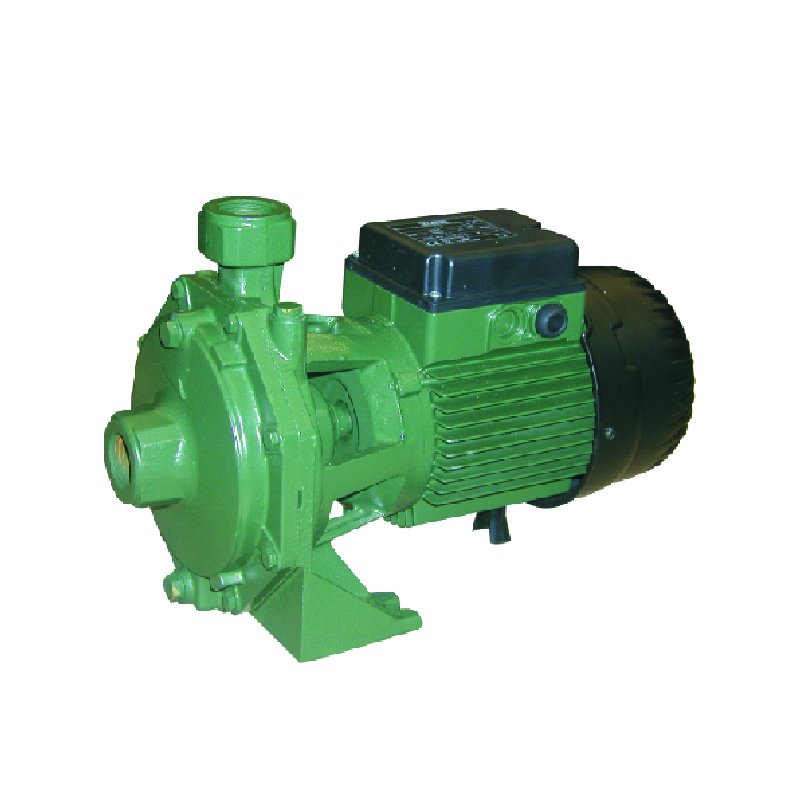

DAB-K80-300T - PUMP SURFACE MOUNTED CENTRIFUGAL TWIN IMPELLER 400L/MIN 95M 7.5KW 415V

Order Code: 701637

Print
Product Code
DAB-K80-300T
RRP: $7700.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Impeller Cast Iron Pump
Suitable For Water Transfer
Bar 9.5 Bar
Flow Range Category e. 400 - 499 L/min
Flow Rate (L/min) 400 L/min
Hp 10 Hp
kPa 962 kPa
Kilo Watts 7.5 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 95 m
Port Size Inlet 2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 7500 W
Pack Weight (KG):
79.20
Description
Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

7.5kW, 10.0hp, 415V, 2 pole, max hd 95m, max flow 400L/m, Ports 2" BSPF In, 1 1/4” BSPF Out

Warranty

2 Year Dab Pumps Warranty

Spare Parts
Code
Part Number
Description
702219
DABSR00005213
LOAD PLUG DP100M-N.3
