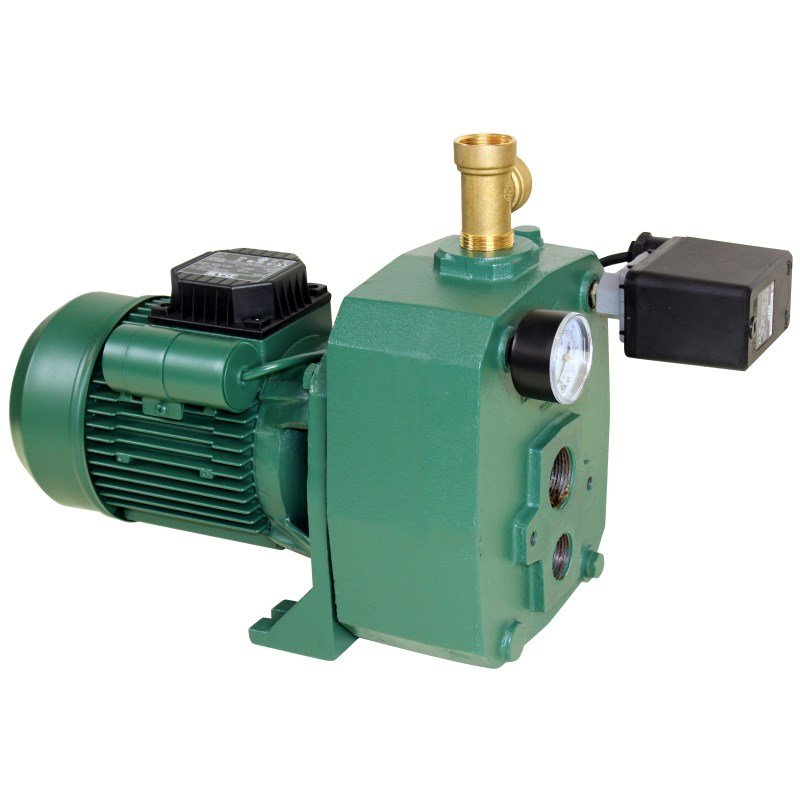

DAB-DP151MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 58L/MIN 60M 1.1KW 240V

Order Code: 701509

Print
Product Code
DAB-DP151MP
RRP: $1980.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Jet Pressure System
Suitable For Tank Transfer
Bar 6 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 58 L/min
Hp 1.5 Hp
kPa 608 kPa
Kilo Watts 1.1 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 60 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 5 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1100 W
Pack Weight (KG):
28.08
Description
Deep Well Multistage Cast Iron Pressure Systems

1.1kW, 1.5hp, 240V, max hd 60m, max flow 58L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

You may also need these:

DAB-E20KIT DAB EJECTOR KIT DAB-E20KIT 701516
DAB-E25KIT DAB EJECTOR KIT DAB-E25KIT 701517
DAB-E30KIT DAB EJECTOR KIT DAB-E30KIT 701518
Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
702212
DABSR00005206 31.5UF CABLE
702207
DABSR00005199
702129
DABSR00004703
702219
DABSR00005213
702214
DABSR00005208
702228
DABSR00005241
702252
DABSR00005274
702677
DABSR00007849
702295
DABSR00005386
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
