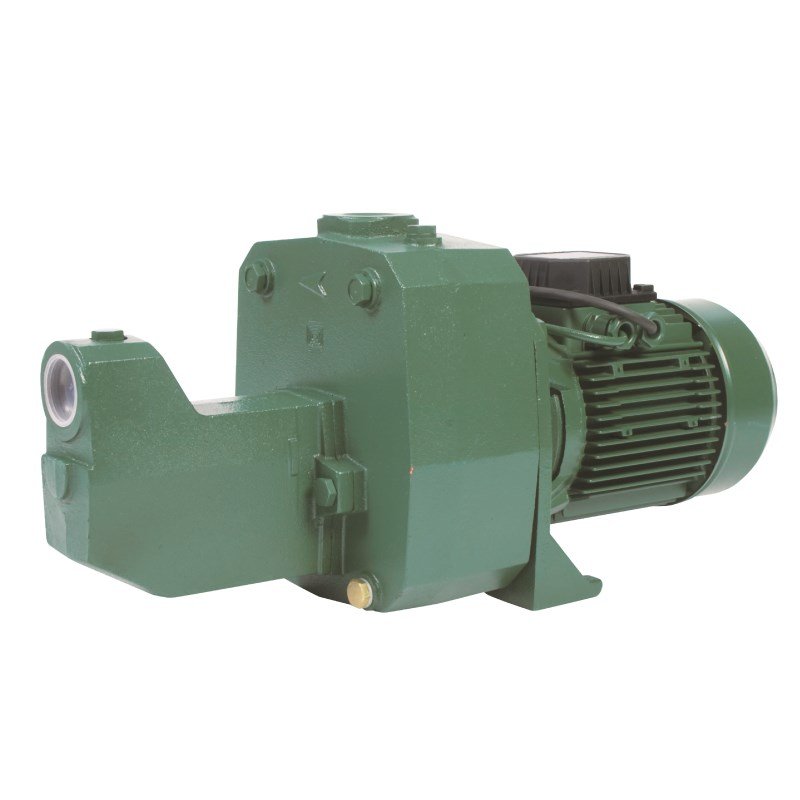

DAB-151M - PUMP SURFACE MOUNTED CAST IRON 75L/MIN 61M 1.1KW 240V

Order Code: 701388

Print
Product Code
DAB-151M
RRP: $1980.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Suitable For Tank Transfer
Bar 6.1 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
kPa 618 kPa
Kilo Watts 1.1 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1100 W
Pack Weight (KG):
30.80
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Similar Products

Spare Parts
Code
Part Number
Description
702230
DABSR00005243
BOLT JET151M-N.3
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702212
DABSR00005206 31.5UF CABLE
DABS R00005206 - CAPACITOR 31.5UF CABLE
702229
DABSR00005242
DABS R00005242 - O-RING
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702232
DABSR00005245
DABS R00005245 Impeller Kit, includes Diffuser, O-ring, Key, Impeller Nut, Spacer
702234
DABSR00005248
DABS R00005248 VENTURI JET151M-N.3
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702235
DABSR00005249
INJECTOR BODY
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702228
DABSR00005241
MOTOR SHAFT DP151M-N.3
702236
DABSR00005250
PLUG JET151M-N.3
702252
DABSR00005274
PUMP BODY DP-M-N.3
702677
DABSR00007849
SEAL DP-M
702227
DABSR00005240
SUPPORT JET-DP-M-N.3
702217
DABSR00005211
TERMINAL BOARD JET151M-N.3
