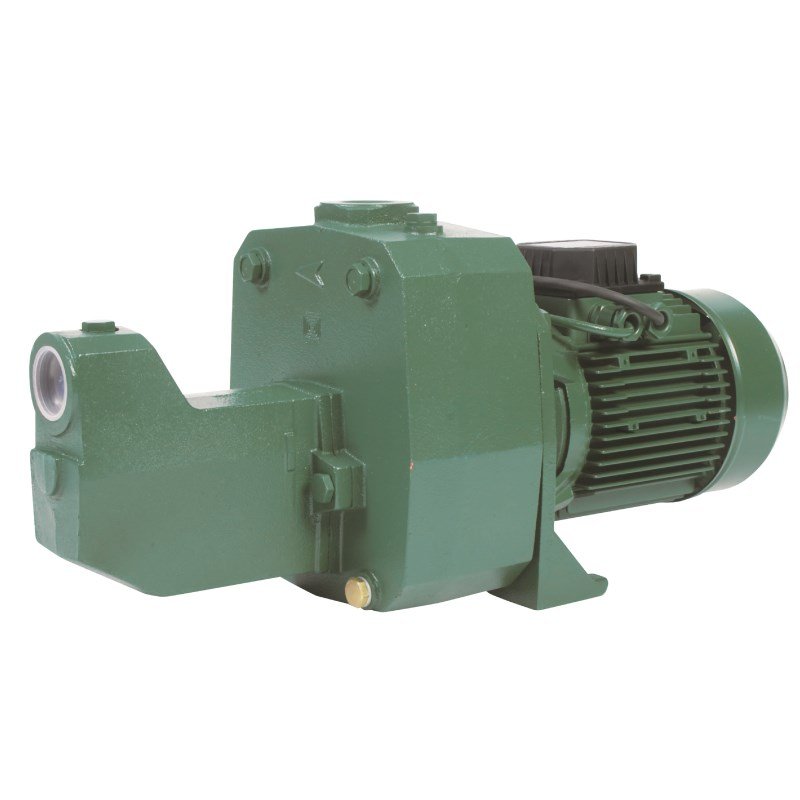

DAB-151T - PUMP SURFACE MOUNTED CAST IRON 75L/MIN 61M 1.1KW 415V

Order Code: 701394

Print
Product Code
DAB-151T
RRP: $1980.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Suitable For Tank Transfer
Bar 6.1 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
kPa 618 kPa
Kilo Watts 1.1 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Warranty (months) 24 Months
Volts 415 V
Watts 1100 W
Pack Weight (KG):
30.50
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.1kW, 1.5hp, 415V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out
3 phase pumps require contactor and overload.

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
702229
DABSR00005242
702207
DABSR00005199
702129
DABSR00004703
702235
DABSR00005249
702219
DABSR00005213
702214
DABSR00005208
702151
DABS60162041
702236
DABSR00005250
702252
DABSR00005274
702677
DABSR00007849
702227
DABSR00005240
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
