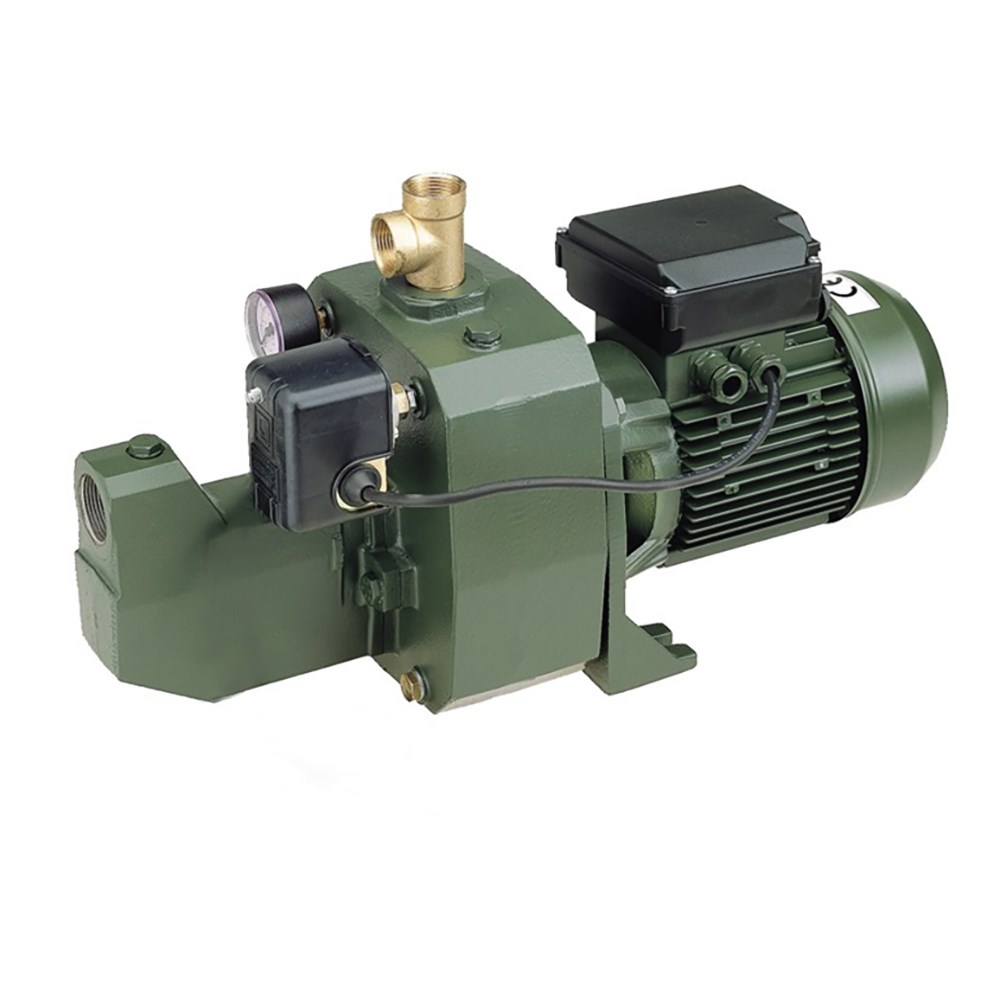

DAB-151TP PUMP SURFACE MOUNT CAST IRON WITH PRESSURE SWITCHCLEAN WATER 75L/M 61M 1.1KW 415V

Order Code: 701395

Print
Product Code
DAB-151TP
RRP: $2640.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Twin Stage Shallow Well Jet Pump
Suitable For Clean Water
Bar 6.1 Bar
Amps 3 Amps
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 75 L/min
Hp 1.5 Hp
Kilo Watts 1.1 kW
Head Range Category a. 0 - 39 m
Max Head (m) 61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 7 Taps
Volts 415 V
Warranty (months) 24 Months
Pack Weight (KG):
33.00
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702229
DABSR00005242
DABS R00005242 - O-RING
702231
DABSR00005244
DABS R00005244 - FRONT BEARING
702232
DABSR00005245
DABS R00005245 Impeller Kit, includes Diffuser, O-ring, Key, Impeller Nut, Spacer
702234
DABSR00005248
DABS R00005248 VENTURI JET151M-N.3
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702235
DABSR00005249
INJECTOR BODY
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702151
DABS60162041
MOTOR DP151T-N.3
702236
DABSR00005250
PLUG JET151M-N.3
702252
DABSR00005274
PUMP BODY DP-M-N.3
702677
DABSR00007849
SEAL DP-M
702227
DABSR00005240
SUPPORT JET-DP-M-N.3
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
