DAB-200MVFD - DAB VFD Pressure System Inc Transducer, 3 way tee, 18L Pressure Tank & Drive

Order Code: 805916

Print
Product Code
DAB-200MVFD
RRP: $4001.80 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Tank Transfer
Bar 4.1 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175 L/min
Hp 2 Hp
kPa 415 kPa
Kilo Watts 1.47 kW
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 41 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1470 W
Pack Weight (KG):
0.00
Description

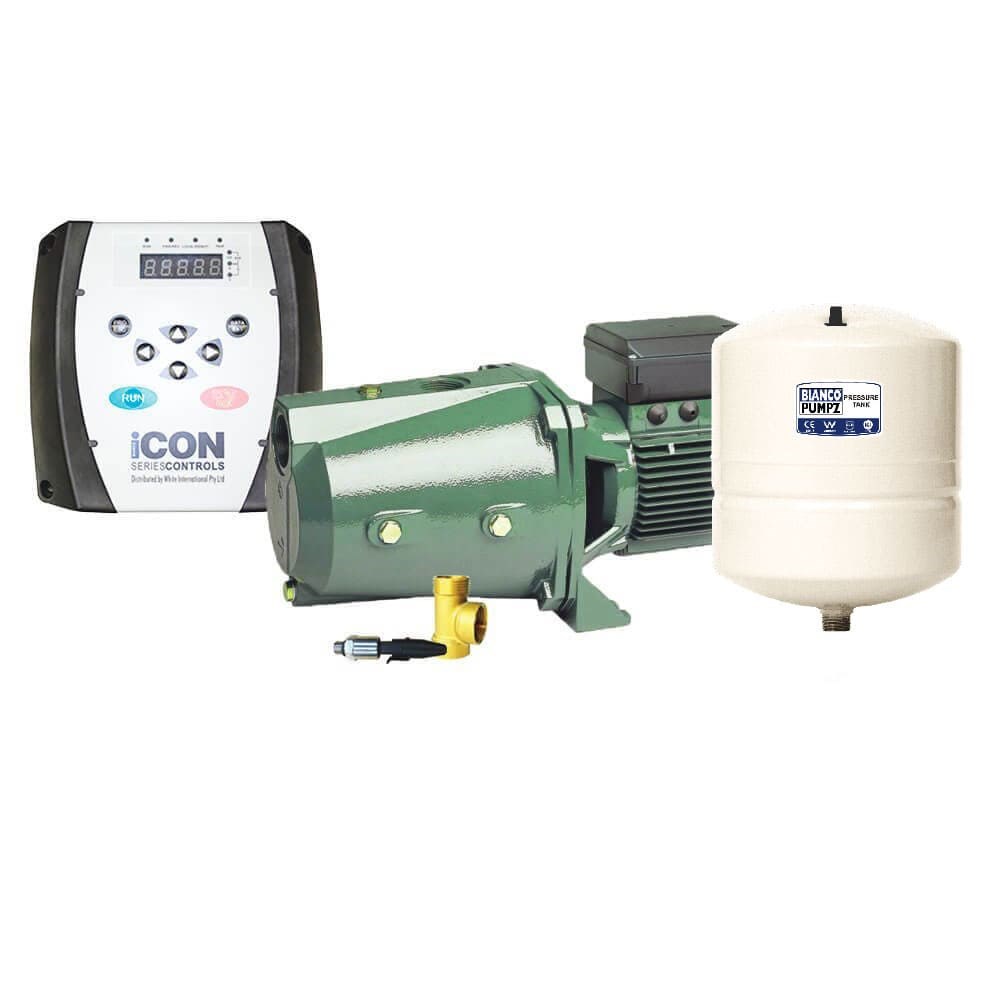

DAB and ICON VFD PUMP KIT

DAB heavy duty jet pumps and icon wall mount plug and play iDrives Includes transducer, 3 way tee, 18 litre pressure tank pre-charged to suit, and drive pre-programmed to suit

1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
