DAB-251MVFD - DAB VFD Pressure System Inc Transducer, 3 way tee, 18L Pressure Tank & Drive

Order Code: 805915

Print
Product Code
DAB-251MVFD
RRP: $5470.30 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Multistage Jet Pump
Suitable For Tank Transfer
Bar 6.2 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 2.5 Hp
kPa 628 kPa
Kilo Watts 1.85 kW
Casing Material Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m) 62 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1850 W
Pack Weight (KG):
0.00
Description

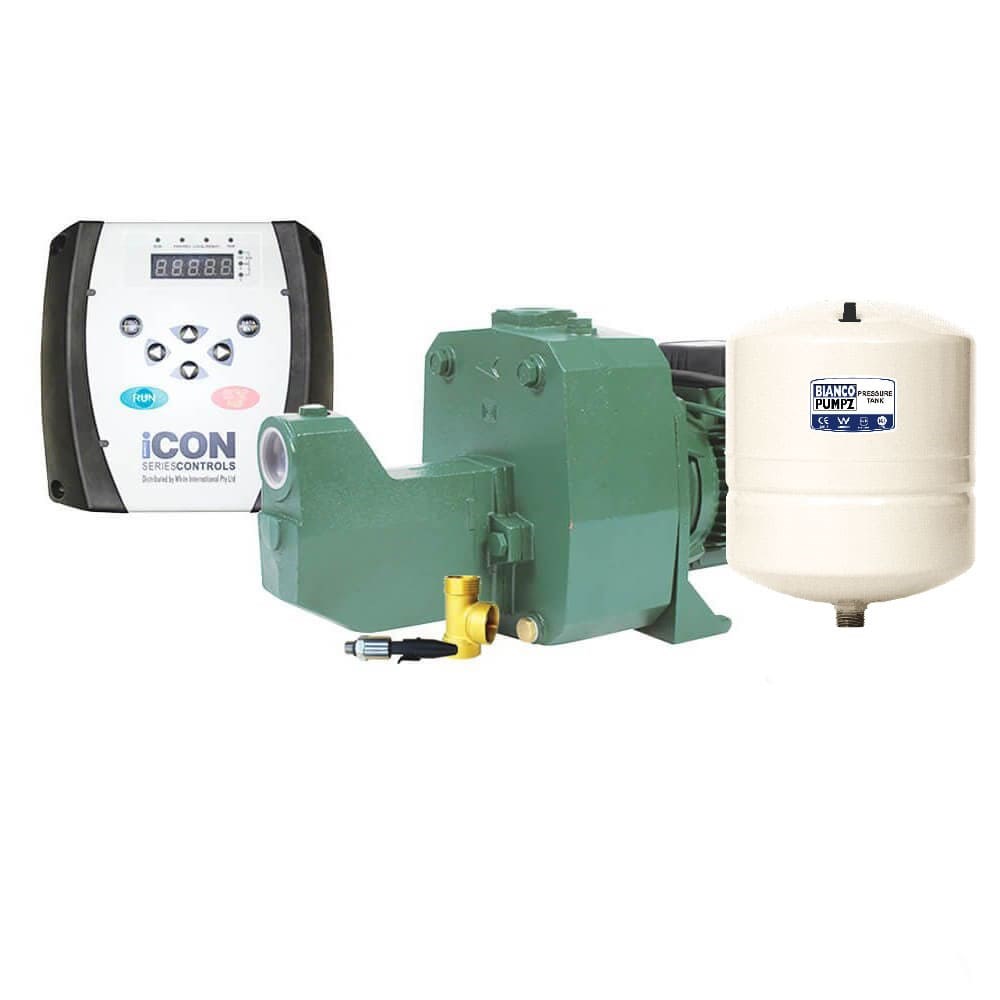

DAB and ICON VFD PUMP KIT

DAB heavy duty jet pumps and icon wall mount plug and play iDrives Includes transducer, 3 way tee, 18 litre pressure tank pre-charged to suit, and drive pre-programmed to suit

1.85kW, 2.5hp, 240V, max hd 62m, max flow 120L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
