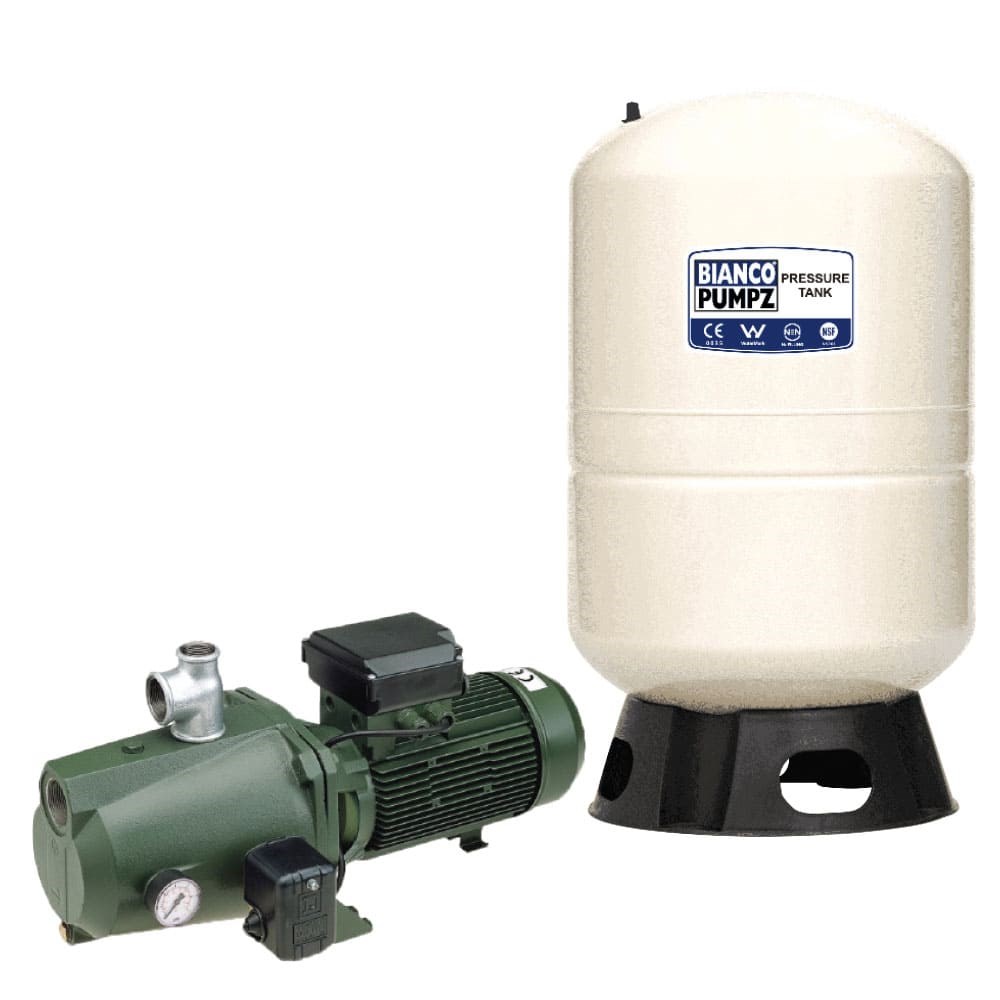

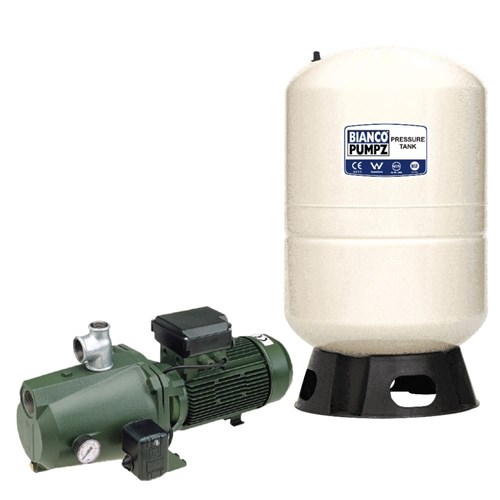

DAB-300MP-100V - DAB Pump & PWB100V Pressure Tank

Order Code: 711602

Print
Product Code
DAB-300MP-100V
RRP: $3118.50 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Tank Transfer
Bar 5.1 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175 L/min
Hp 3 Hp
kPa 517 kPa
Kilo Watts 2.5 kW
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 51 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 2500 W
Pack Weight (KG):
0.00
Description
DAB Self Priming Cast Iron Jet Pressure Pumps


2.2 kW, 3.0 hp, 240V, Automatic with pressure switch, max hd 51m, max flow 185L/m

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 100L
  • Nominal Draw-off: 36L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 430 mm
  • Height: 765mm
  • Net Weight: 13.7Kg
  • System Connection: GI
  • Colour: Almond
Downloads
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702216
DABSR00005210
DABS R00005210 SEAL JET200M-N.1
702218
DABSR00005212
DABS R00005212 VENTURI JET200M-N.1
702222
DABSR00005230 40UF CABLE
DABS R00005230 - 40UF CABLE CAPACITOR DP251M-N.1
702223
DABSR00005231
DABS R00005231 Impeller Kit, includes Diffuser, O-ring, Key, Impeller Nut
702244
DABSR00005258
DABS R00005258 - FRONT BEARING
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702224
DABSR00005232
MOTOR COVER DP251M-N.1
702220
DABSR00005221
PUMP BODY JET200M-N.1
702208
DABSR00005200
SUPPORT JET200M-N.1
702226
DABSR00005234
TERMINAL BOARD JET251M-N.1
