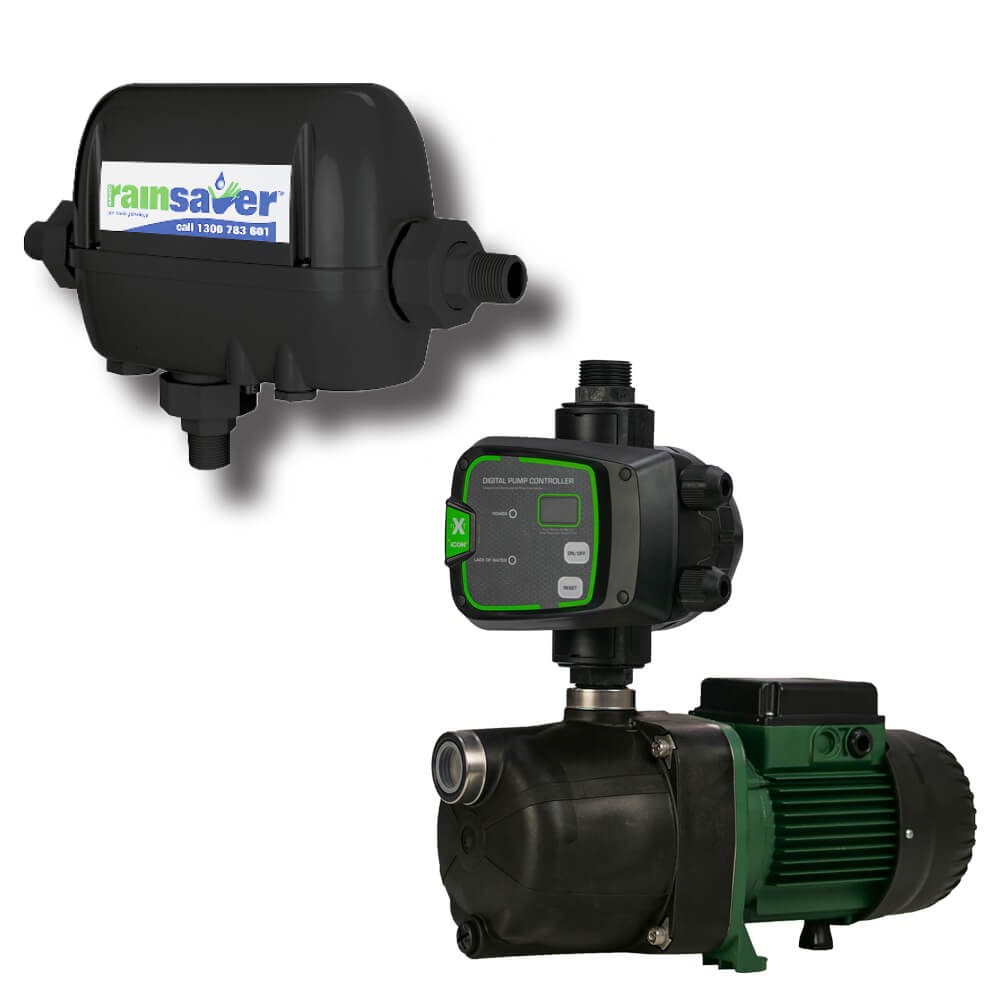

RS4E-JETCOM82NXT - Technopolymer Surface Mount with nXt Controller with RS4E Rainsaver Device Kit

Order Code: 808463

Print
Product Code
RS4E-JETCOM82CORE
RRP: $1320.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Rainsaver
Product Type Pressure System
Suitable For Clean Water
Bar 4.6 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Hp 0.8HP
kPa 476kpa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 600 W
Pack Weight (KG):
0.00
Description
Rainsaver MK4E and DAB-JET82NXT 450W

Electronic Self Priming Pump with Auto Restart

6 taps, 47m hd, 60L/m

2 Year Rainsaver MK4E Infield Warranty

AS/NZS4020 Approved for Drinking Water
Rainwater to Mains Changeover Device
  • Rainsaver MK4E Changeover Device.
  • 2 Year Rainsaver MK4E Infield Warranty
  • 12V Low voltage Float.
  • WaterMark approved for connection to all town water supplies.
  • Aesthetically designed and requires no weather proofing.
  • IP33

Notes

Pressure Systems calculated at 10 L/m

Warranty

2 Year Rainsaver MK4E Infield Warranty



Approvals

WaterMark Approved

WATERMARK APPROVAL - ATS 5200.477:2006.

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals



Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


Controller Brochure
View Brochure


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702109
DABSR00004187
702163
DABSR00010751
702175
DABS R00010751
702079
DABSR00008871 12.5UF
702108
DABSR00004183
702084
DABSR00004017
702185
DABSR00005146
702197
DABSR00005172
702085
DABSR00004018
702157
DABSR00005106
702119
DABS R00009575
702083
DABSR00004016
