RS6-INOX45S2MPCX RAINSAVER MK6 PUMP KIT CLEAN WATER DOMESTIC 50L/MIN 38M 240V

Order Code: 805127

Print
Product Code
RS6-INOX45S2CORE
RRP: $1210.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Rainsaver
Product Type Rain Harvesting Kit
Suitable For Clean Water
Flow Range Category a. 0 - 99 L/min
Float No
Max Flow (L/min) 50 L/min
Head Range Category b. 40 - 59 m
Max Head (m) 38 m
Port Size Inlet 3/4" Rainsaver
Port Size Outlet 3/4" Rainsaver
Powered Electric
Warranty (months) 24 months
Volts 240 V
Pack Weight (KG):
0.00
Description

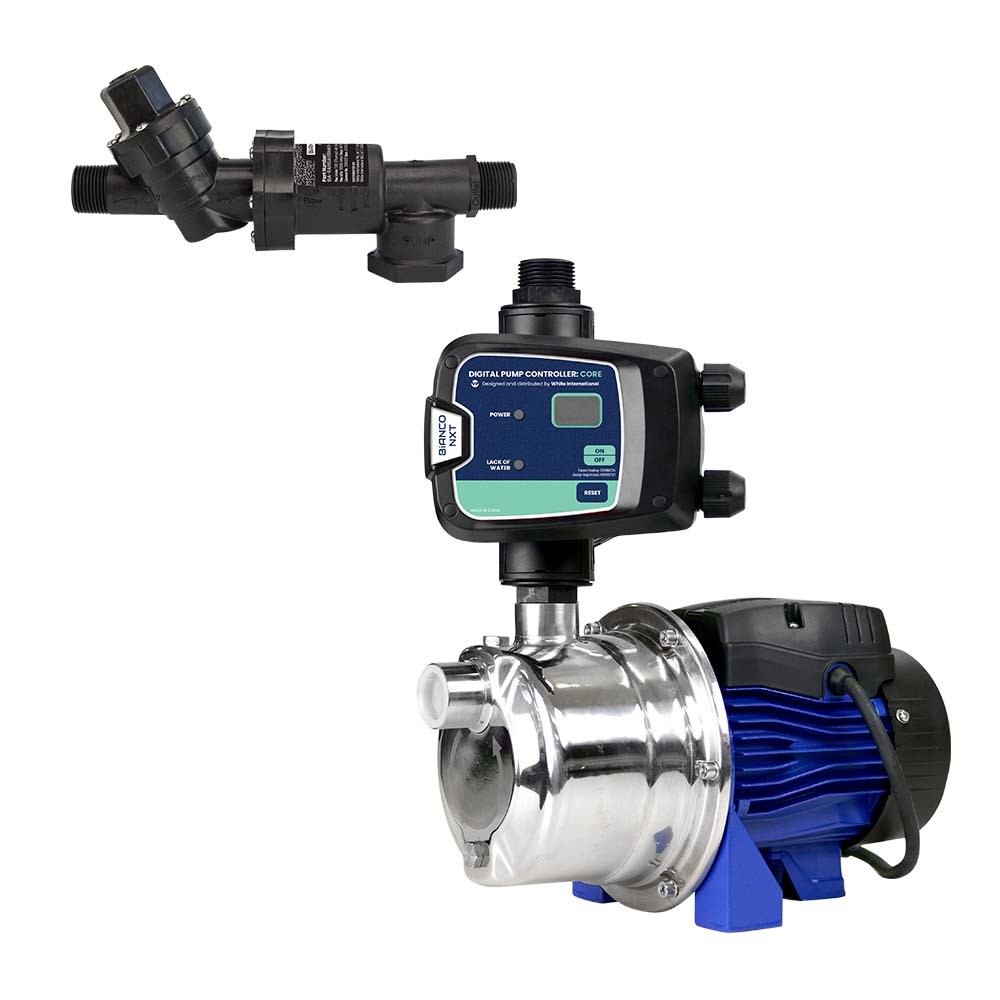

The RAINSAVERMK6 is an Automatic Rainwater / Mains Water Changeover Device designed to provide automatic mains back up for Pressure Pump supply systems. The RAINSAVERMK6 is designed to be installed in conjunction with a Pressure Pump supply system that is fitted with an independent pressure and flow controller with loss of prime protection and 24 hour auto restart.

Specifications – BIA-INOX45S2MPCX
The pump is a self-priming pressure system pump supplied wired and ready to install. The self-priming ability provides excellent suction capacity. Used especially for supplying water to domestic installations.

The pump is characterised by:

  • Automatic electronic pump control fitted and wired.
  • Automatic electronic control provides run dry protection and constant pressure at low flows. Automatic electronic control has in-built check valve & auto restart.
  • Corrosion resistant pump body, diffuser and impeller.
  • Mechanical shaft seal.
  • 240V single phase TEFC motor with in-built auto reset thermal overload.
Operation

The RAINSAVERMK6 supplies clean rainwater from a rainwater tank via an automatic pressure system pump to toilets, laundry and garden taps in a household. Mains water is also connected to the RAINSAVERMK6 as an automatic back up should rain water level be too low, or if there is a power or pump failure.

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Product Brochures
Download Brochures v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Control Features

Control Features:

  • Proven components
  • Requires no power supply and consumes no electrical energy
  • Designed to operate with pumps and mains up to 1000 kPa (145 psi)
  • Pump flows to 105 l/m, mains flows to 40 l/m (at 500kPa mains)
  • Designed to further save water resources by reducing incoming mains to 200 kPa
  • Requires no weather proofing
  • Can be mounted any distance from the pump underground or inside a tank
  • Completely waterproof - Can be hosed down without the fear of electrocution
  • UV stabilised technopolymer for long life and good looks
  • All Rainsaver MK6 pumps are independently controlled to regulate flows and pressures whilst protecting the pump against voltage fluctuations, loss of water and incorporate a 24 hour automatic pump restart
  • WaterMark approved components for connection to all Town Water supplies. Safe against water borne bacteria, dezincification and lead poisoning
  • No unsightly controller power, water level float cables or the need for a dedicated controller power point
  • Australian owned and designed

Warranty

2 Year Rainsaver MK6 Warranty

Approvals
WaterMark Approved

WATERMARK APPROVAL - ATS 5200.477:2006.

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals

Notes

Pressure Systems calculated at 10 L/m

RAINSAVER MK6 - Not for sale seperately
* Warranty Service is provided at the nearest authorised service agent
