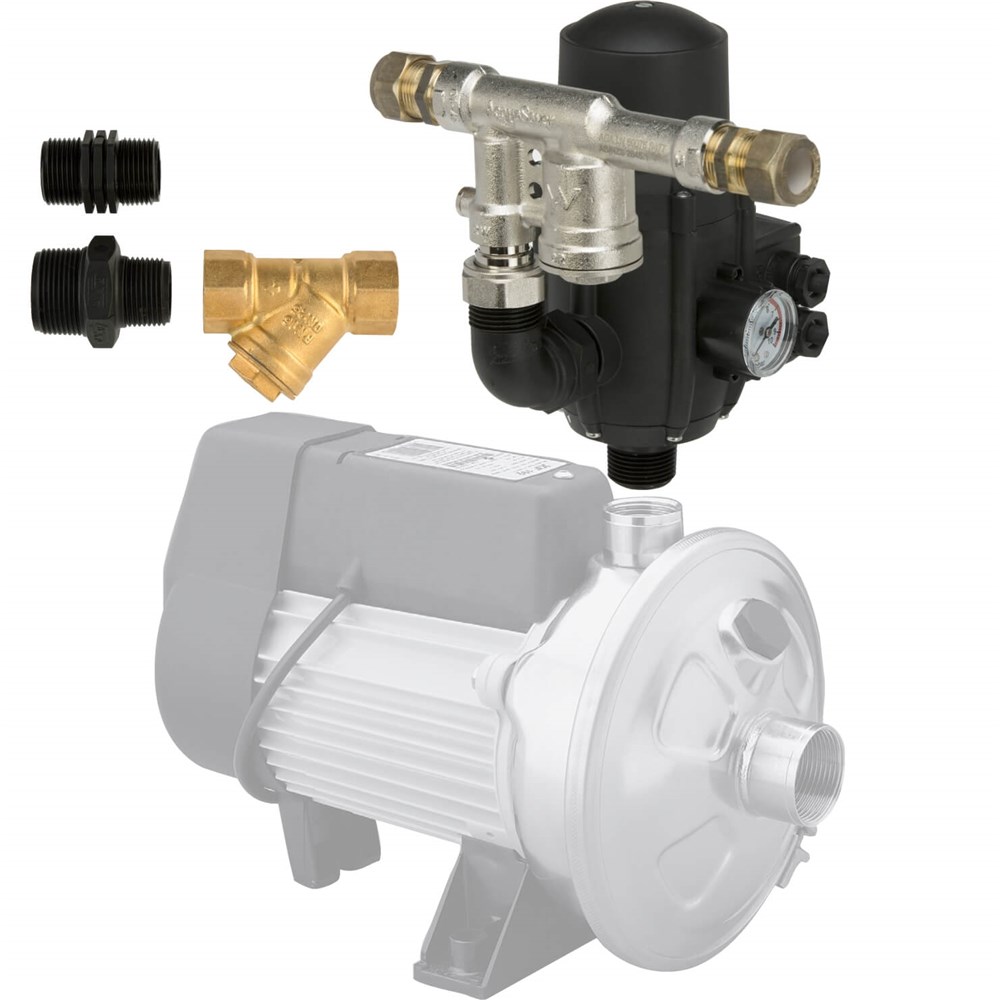

ClayTech RETROFIT KIT A2 - Rainwater Management Retro Kit- Inc 3/4" AcquaSaver + AquaTron Controller

Order Code: 807776

Print
Product Code
CLA RETROFIT KIT A2
RRP: $748.00 incl. GST
Find Your Nearest Store
Find a Service Agent
Technical Specifications
Brand ClayTech Pumps
Pack Weight (KG):
2.60
Description
ClayTech Rainwater Management Retrofit Kit

The ClayTech CMS Water Management System is designed to provide available water to your house aways preferentially using rainwater as the best enviromental option. Under teh Plumbing Code of Australia, rainwater is the preferred option for supply of water to household toilets, washing machines and garden watering.

Under normal conditions, when rainwater is avilable in your rainwater tank, the ClayTech pump system will deliver this water to the house. When the rainwater tank is emptied, the CMS Systme will detect the lack of rainwater and provide mains water to your hosue.

  • Plug & Play
  • Easy Assembly
  • Replaces:
    • Davey Rainbank
    • Onga Waterswitch
AcquaSaver Water Diversion Valve - 3/4 Inches

Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention

How does the AcquaSaver Work?

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.
